Lab Programmable Spin Coater Machine Can Rotate Forward And Reverse

Contact Person：Gilia Ding

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna

Product Details

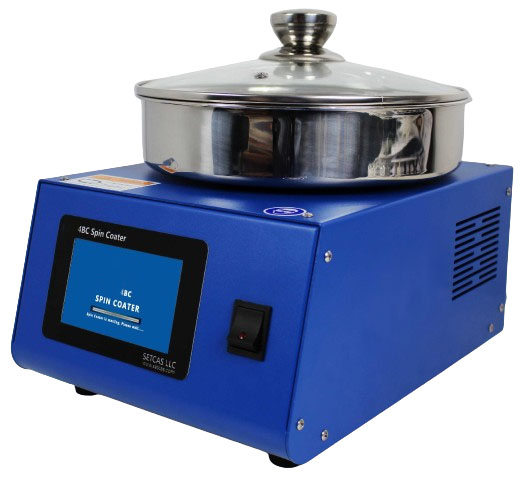

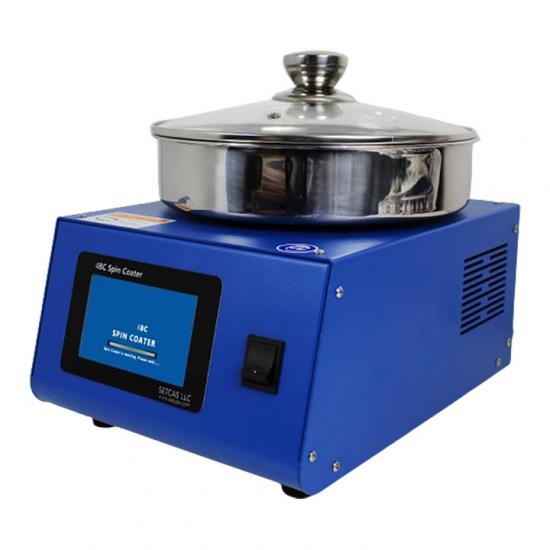

Lab Programmable Spin Coater Machine Can rotate forward And Reverse

Spin Coater

Key Features：

1. Human machine interface 4.3 inch touch screen.

2. Prevent anti-flying piece protection and alarm.

3. Prevent anti-adhesive protection and alarm .

4. Automatic pick-up alert function.

5. Set data Unlimited group data, each group of 10 speeds

6. Optional disposable pot lining: easy to clean up the waste liquid after coating.

Spin Coater Specifications

Substrate size	5mm to 120mm（ 5 inches）
Speed range	50- 10000RPM
Human machine interface	4.3 inch touch screen
Motor speed stability	±1RPM
Spin coating uniformity	±1%
Turn around	Can rotate forward and reverse
Stylus	Stylus BAMBOO resistance pen (standard)
Set data	Unlimited group data, each group of 10 speeds(standard)
Seconds per period	0- 10000s
Storage data	Unlimited data
Operating voltage(Spin Coater)	AC100-250V, single phase, 50/60Hz
Operating voltage(Pump)	AC220V(Standard) AC110V(Optional)
Pumping speed	≥60L/MIN
Max vacuum	-85KPA
Sound Level	≤55db
Spin coater power	200W
Pump power	350W
Dimensions(Spin Coater)	210mm(W)X220mm(D)X160mm(H)
Weight(Spin Coater)	10KG
Weight(Pump)	9KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year

Spin Coater

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
