Laboratory Cheap Desktop Spin Coating Machine with Usb Communication Interface

Contact Person：Gilia Ding

Email: gilia@inthelaboratory.com

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna

Item No.:
TMAX-4C
Certificate:
CE Certified
Warranty:
1 year

Product Details

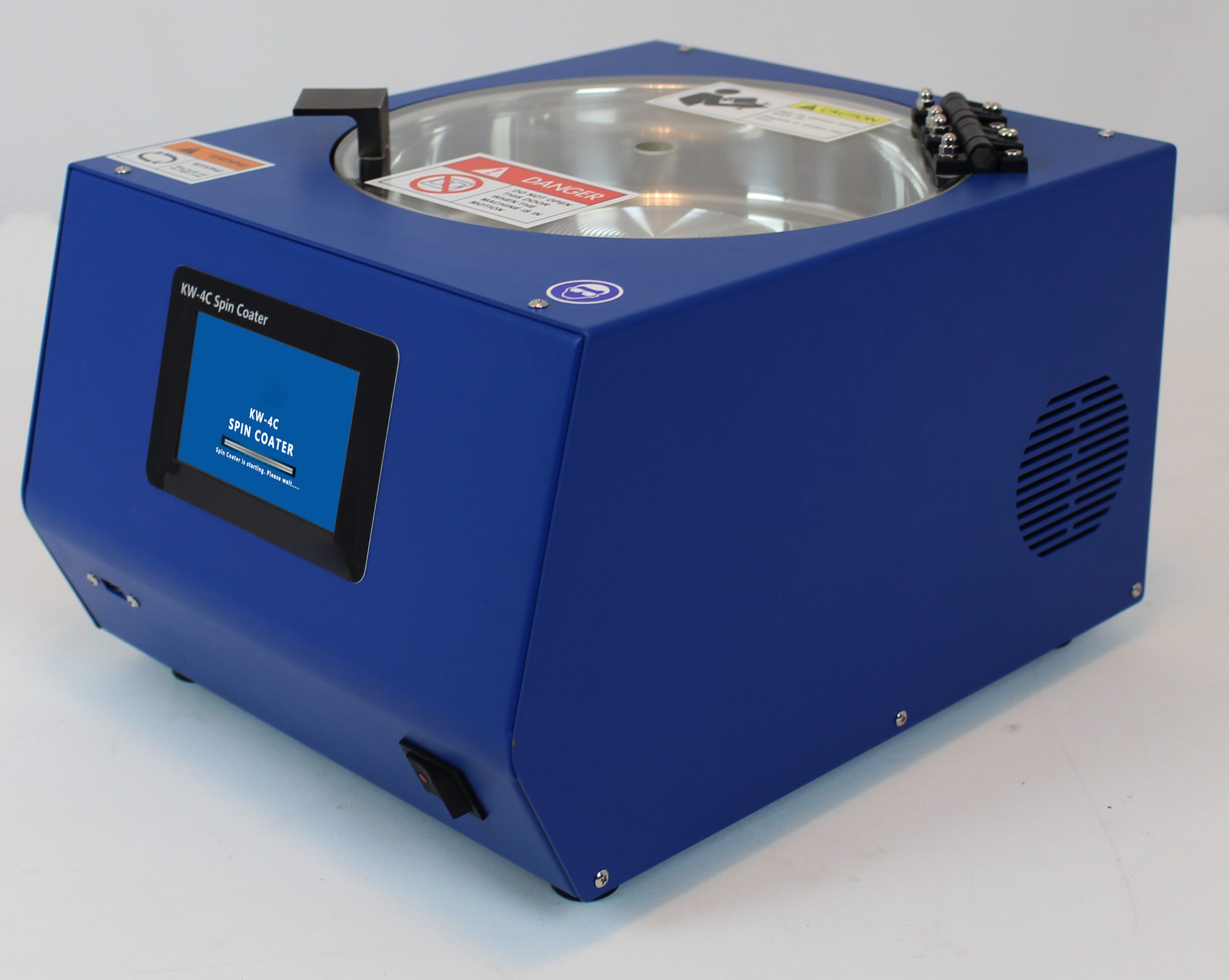

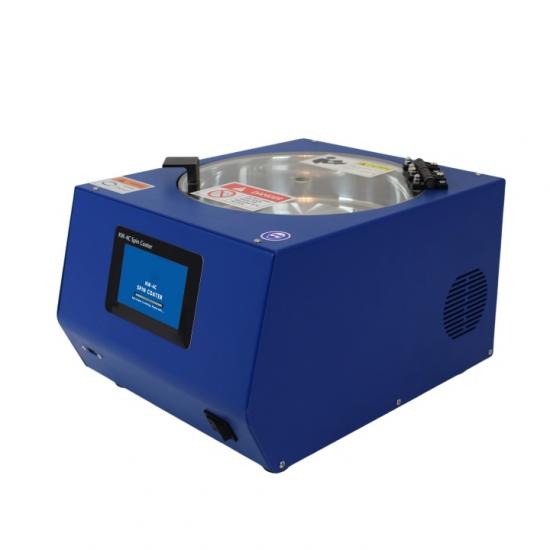

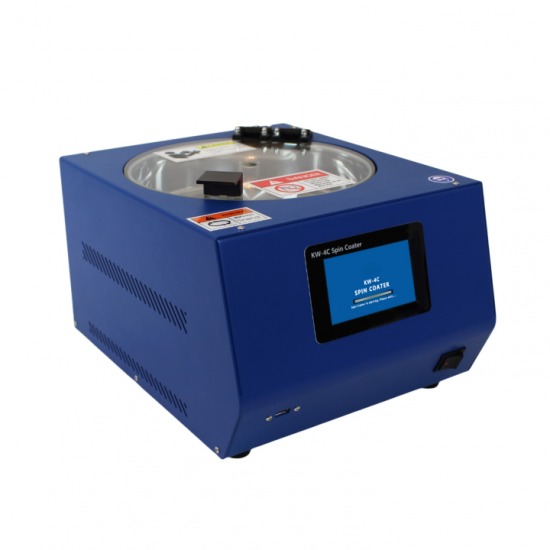

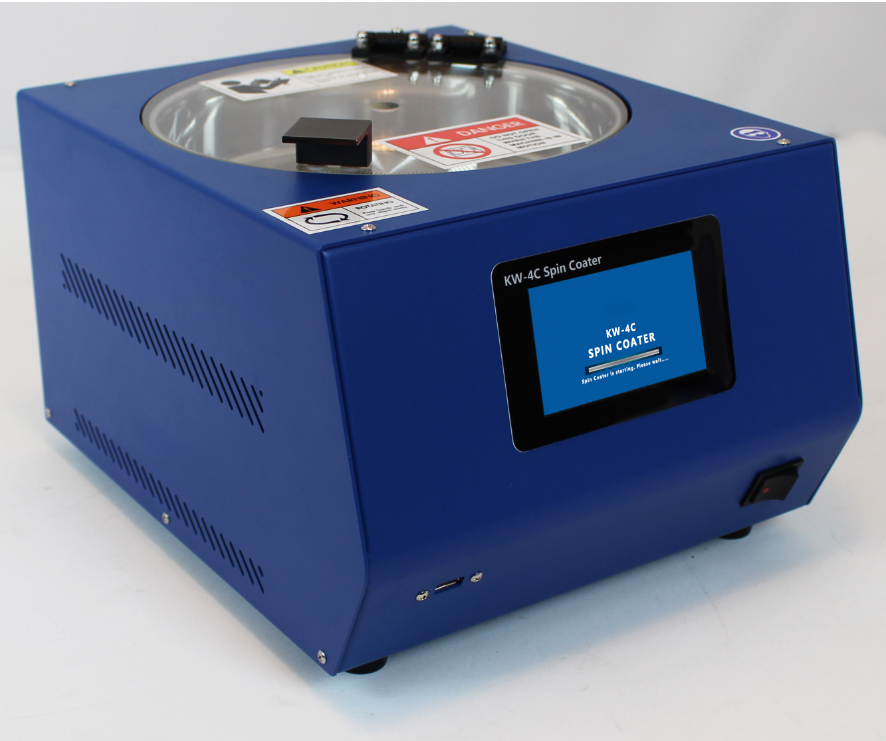

Laboratory Cheap Desktop Spin Coating Machine with Usb Communication Interface

Key Features：

1. Anti-flying protection and alarm

2. Anti-glue protection and alarm

3. Real-time monitoring of adsorption force, alarm if adsorption force is insufficient, prohibit starting if adsorption force is insufficient, stop immediately if adsorption force is insufficient

4. The motor can rotate forward and reversely

5. Formula with power-offprotection function

6. Adjustable acceleration (acceleration:10-10000RPM/S, speed range: 50-10000RPM)

7. With communication interface: USB, external mouse and keyboard, transfer recipes through U disk.

Spin Coater Specifications

Substrate size	5mm to 150mm（ 6 inches）
Speed range	50- 10000RPM
Acceleration range	10- 10000RPM/S， Adjustable
Motor speed stability	±1RPM
Spin coating uniformity	±1%
Human machine interface	4.3 inch touch screen
Communication interface	can be connected to the wireless mouse and keyboard: the machine can be placed in the glove
Turn around	Can rotate forward and reverse
Stylus	Stylus BAMBOO resistance pen (standard)
Vacuum Pump	SC-550V
Set data	Unlimited group data, each group of 10 speeds (standard)
Seconds per period	0- 10000s
Storage data	Unlimited data
Operating voltage(Spin Coater)	AC100-250V, single phase, 50/60Hz
Operating voltage(Pump)	AC220V(Standard) AC110V(Optional)
Pumping speed	≥60L/MIN
Max vacuum	-85KPA
Sound Level	≤55db
Spin coater power	200W
Pump power	350W
Dimensions(Spin Coater)	210mm(W)X220mm(D)X160mm(H)
Weight(Spin Coater)	10KG
Weight(Pump)	9KG
Relative humidity	< 85%
Ambient temperature	0-40℃
Warranty	1 year

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
