Double Plate Manual Electric Hot Press with English Panel Thermostat

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-RYJ-600F
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

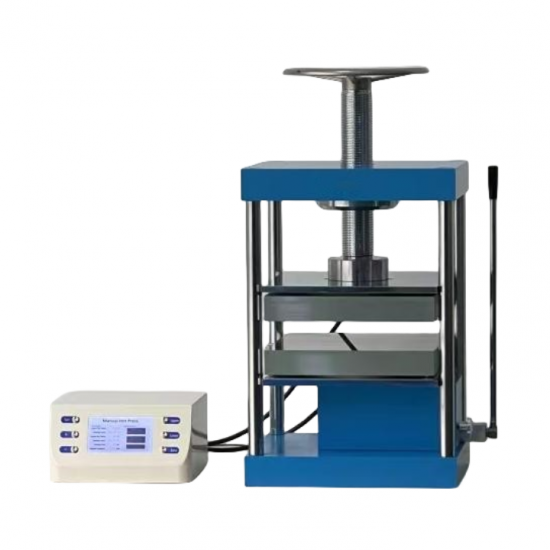

Double Plate Manual Electric Hot Press with English Panel Thermostat

RYJ-600F series double plate heat press is a split type and widened heat press developed by our company based on the original manual heat press based on the market demand. This machine meets the needs of customers who need large-tonnage and large-area sample heating, and can be used for high-temperature and high-pressure compression experiments on powder samples, granular samples, plastic films, rubber products and other samples.

Main Parameter

Device model	RYJ-600F3	RYJ-600F4	RYJ-600DF3	RYJ-600DF4
Pressure range	0-30T(0-31.5Mpa)	0-40T(0-30Mpa)	1-30.0T/0.1t	1-40.0T/0.1t
Pressure conversion	1T-1.05Mpa	1T=0.75Mpa	No conversion required
Pressure gauge type	Pointer pressure gauge		4.3 inch LCD screen display
Pressurized method	Manual pressurization/compensation		Electric pressurization - program pressure maintaining/replenishing pressure - timing pressure relief
Compress time	Manual		0-999.59（mins/sec.）

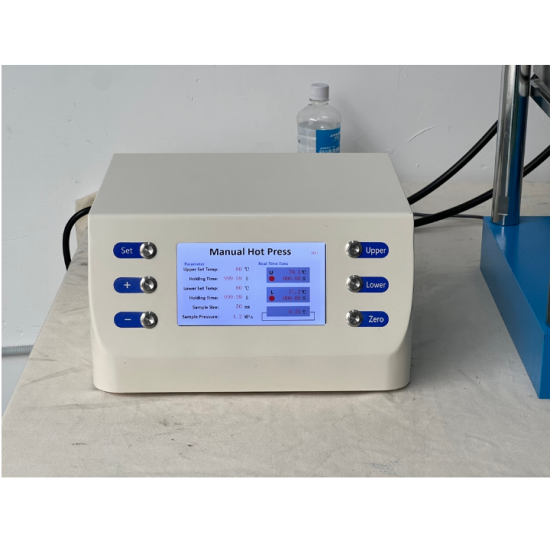

Thermostat type	XNNETS PLC Program temperature controller
Thermostat temperature control range	Room temperature-600°C,accuracy 0.1°C
Mold heating temperature	Room temperature-300.0°C(500°C high temperature mold can be customized)

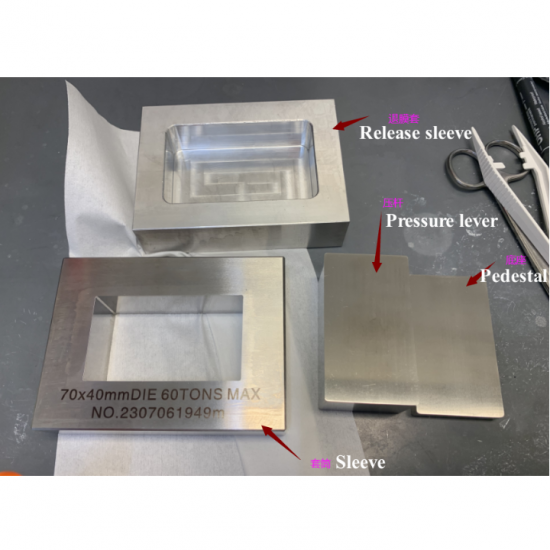

Hot pressing mold size	300*300mm	400*400mm	300*300mm	400*400mm
Power	220V/2500W	220V/5000W	220V/3000W	220V/6000W
Host size	380350600mm	500480650mm	380350600mm	500480650mm
Mold cooling method	Water cooling cycle rapid cooling (water cooler optional)
Insulation of equipment	Imported heat insulation board
The whole frame	Split structure
Model Description	Customized products, the above data are for reference only! Various heat presses can be customized according to user needs
