500C or 300C Manual Hot Press with Double Heating Die

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

Item No.:
TMAX-RYJ-600C
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

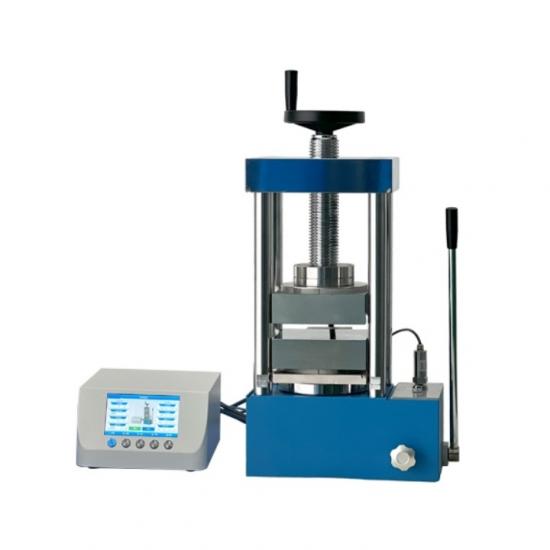

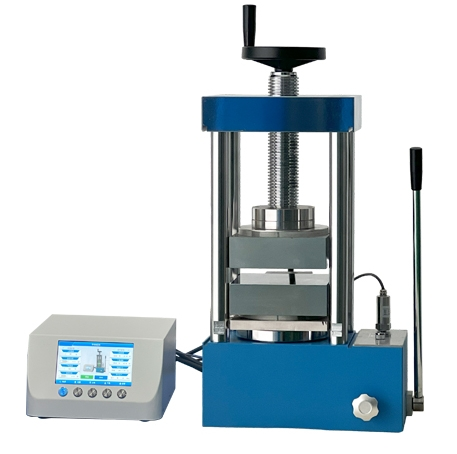

500C or 300C Manual Hot Press with Double Heating Die

New RYJ-600D series double plate hot pressing machine compared with RYJ-600C series the biggest difference this machine adopts widened panel design, can meet the hot pressing experiment of larger samples, equipped with two temperature controllers, can separately control the temperature of two plates heating, pressing film thickness up to 50um-500um, suitable for polymer materials, Plastic film and rubber products and other materials of experimental research, can also be used as a small flat vulcanizing instrument, suitable for rubber, plastic, leather, chemical, pigment, electronic appliances, textiles, hardware and other fields.

Main technical parameters

Product Name	RYJ-600D1	RYJ-600D2	RYJ-600DG1	RYJ-600DG2
Pressure range	0-30T(0-31.5Mpa)
Pressure conversion	1t-1.05Mpa/1Mpa=0.95t
Piston diameter	ɸ110mm chrome plating cylinder
Maximum piston stroke	40mm
Type of pressure gauge	Pointer; Pressure, pressure double scale display; the range 0 to 40 mpa; accuracy of 1 mpa
Pressure mode	Manual pressure

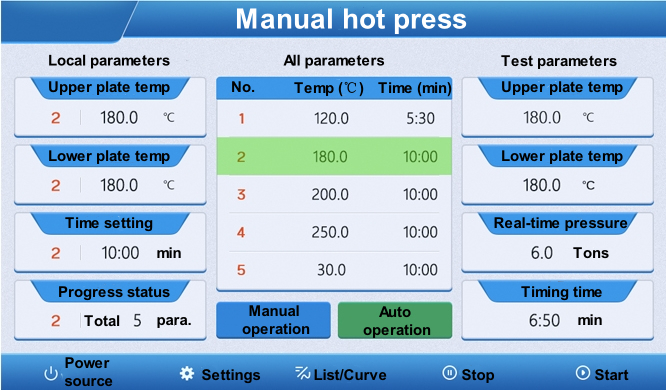

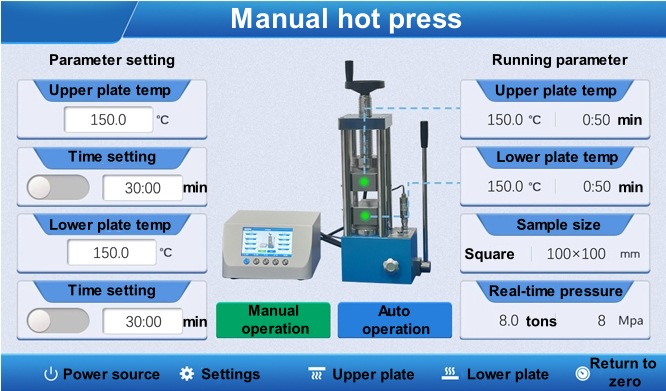

Temperature controller type	PLC programmed temperature controller (double temperature controller)
Temperature control range	RT-600.0℃/0.1℃
Type of hot pressing die	Double die heating up and down (polished surface)
Heating die size	180*180mm	200*200mm	180*180mm	200*200mm
Temperature of hot pressing die	RT-300℃		RT-500℃

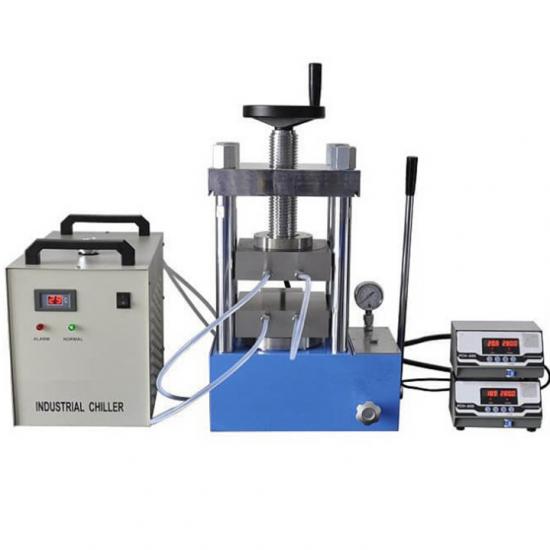

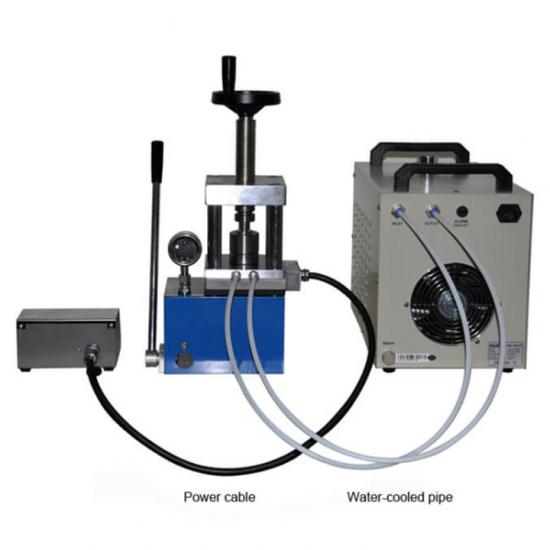

Heating die cooling method	Cooling by natural or water cooler		Cooling by natural or water cooler
Equipment insulation Mode	Imported heat shield		Imported heat insulation board + stainless steel water cooling cycle heat insulation board
Power	220V/1000W		220V/2000W
Overall structure	Split structure

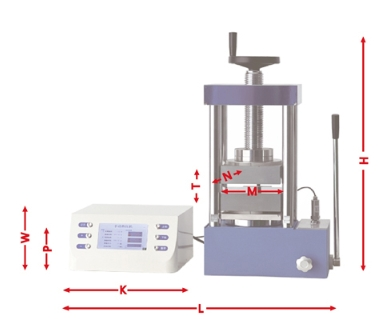

Size of the machine	405260525mm(The weight of the water cooler is not included)
Weight	About 80-200kg
Model specification	Water cooling machine (optional) Digital pressure gauge (optional), accuracy of 0.01Mpa, more accurate pressure control
