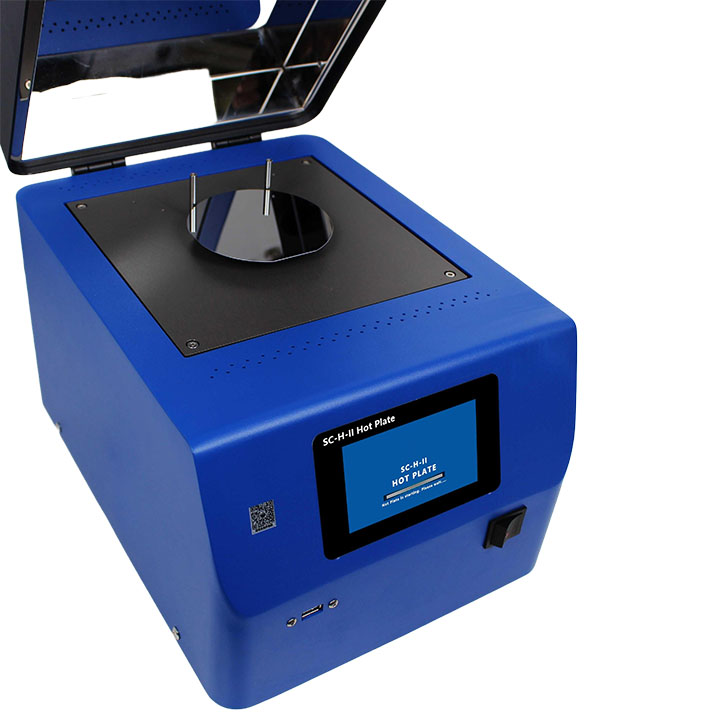

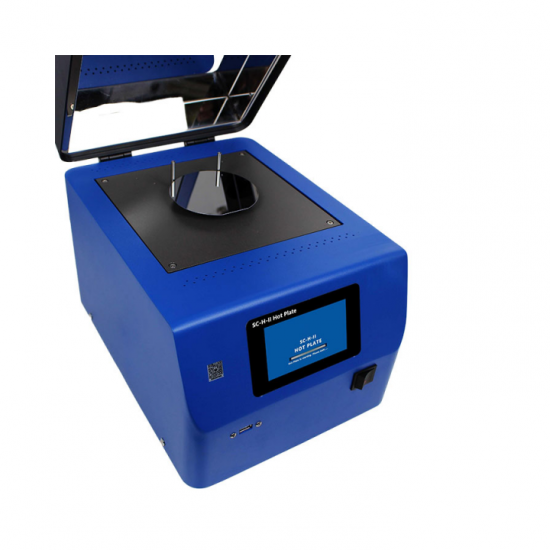

Automatic Positioning Programmable Glue Baking Machine Including Pass Nitrogen Function

Contact Person：Gilia Ding

Tel：+86 177 5900 4070
Telephone:+86-177-59004070
Whatsapp: +86 177 5900 4070
Wechat：Dingqiuna

Product Details

Automatic Positioning Programmable Glue Baking Machine Including Pass Nitrogen Function

Key Features：

1. Include pass nitrogen function, vacuum function and set the jacking range function.

2. Jacking range 0-30mm, automatic positioning.

3. 10 segments of N groups of formulas can be set, the formulas can be exported, and the mouse and keyboard can be connected externally.

4. Global service network, simple and practical, solving practical problems, San Diego, USA, Hong Kong, China service center.

5. Designed by the American Setcas team and assembled in China, it is cost-effective.

Hot Plate Specifications （SC-H-II）

Brand	TMAXCN
Origin	R&D by American team, production and assembly in Beijing
Product Features	Can pass nitrogen, can be evacuated, and can set jacking range
Jacking range	0-30mm Can be positioned arbitrarily
Indoor temperature	450 degrees, temperature can be continuelly adjust
Formula	10 segments, N groups of formula
Peripherals	The formula can be exported, and the mouse and keyboard can be connected externally
Constant temperature fluctuation	±0.5 ℃
Temperature uniformity	±0.5 ℃（ Temperature uniformity everywhere on the worktable at the highest temperature）
Nitrogen pressure	0.2-0.8MPA
Hot plate dimension	200X200mm(8 inch)
Product dimension	270(W)×379(D)×271(H)mm
Weight	6.5KG
Voltage	AC100-240V, single phase, 1KW
Package Size	48x 39 x 38cm
Shipping Weight	＜10KG
Ambient temperature	0-40℃
Relative humidity	＜85%
Installation method	Place on a horizontal desktop
Warranty	1 year

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
