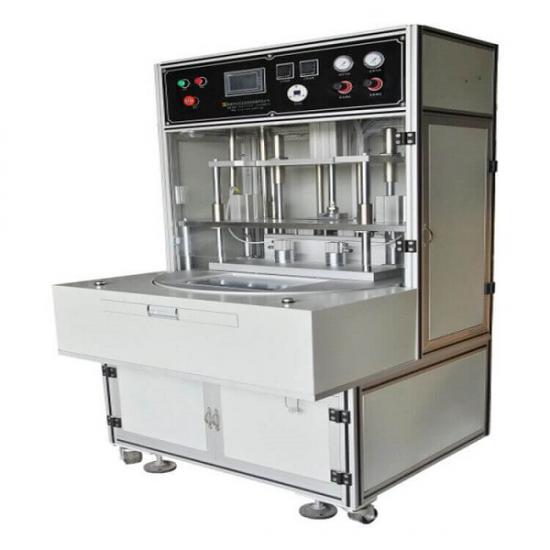

Three-Station Two Chamber Vacuum Sealing And Edge Removing Machine For Pouch Cell Manufacturing

Introduction

This machine is suitable for the final vacuum sealing of lithium pouch cells and the removal of airbag edges. Manually place the battery cell on the turntable feeding mechanism. The battery rush direction is downward. Rotate the feed through the turntable. (The turntable puts 3 positions and rotates 120 degrees each time.) The feed turntable rotates into position and starts edge sealing. Enter the trimming station at 120 degrees to trim the edges. After trimming, rotate 120 degrees to return to the loading position, manually remove the material, and repeat the above operation.

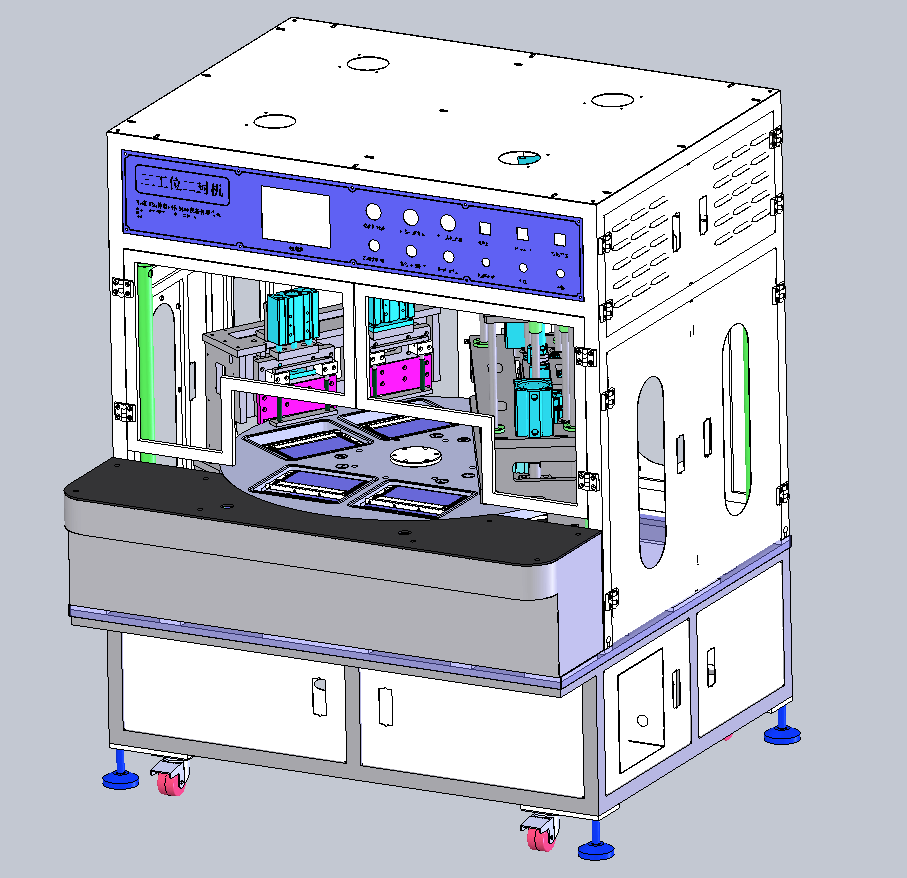

Equipment structure

1. Adopting rotary turntable feeding structure, precision of turntable divider: ± 0.1mm

2. Machine package alignment accuracy: ± 0.1mm, head parallelism: ± 0.01mm

3. Sealing time adjustment range: 1s-30s, adjustment accuracy: ± 0.1mm

4. Heat sealing time and vacuum time are set on the touch screen: the packaging pressure is adjusted on the operation panel,

5. The temperature accuracy is controlled within the range of ± 2°C and controlled by the PLC program. If the temperature is too high or too low, the alarm will stop automatically

6. The package adopts double head and double cavity structure;

7. The heating tube uses 700 watts; the working temperature range of the head is RT~300 ℃;

8. The diameter of the upper head cylinder is 63mm, and the diameter of the bayonet cylinder is 25mm;

9. The doors and windows are made of sheet metal baking paint, and the exhaust fan is installed on the top;

10. The cutting airbag adopts a double edge cutter structure, each pair of edge cutters independently cut edges;

11. The cutting edge is made of wear-resistant and corrosion-resistant tool steel, and the life of the cutter is> 600,000 times;

Specifications

Power supply	AC220V / 50Hz; Power: 4.5KW
Compressed air	0.4 ~ 0.6Mpa 20L / Min
Applicable length	≤200mm
Applicable width	≤120mm
Airbag width	≤70mm
Double cavity double cutter	Yes
Piercing function	Yes
Flat pressing and shaping function	Yes
Effective length of cutter	200mm
Cutter width	4.5mm
Number of batteries that can be placed	≤10 (dual cavity)
Production capacity	≤60 ~ 80PPM
Equipment weight	about 500Kg
Vacuum source	≤–95Kpa
Dimensions	1390 * 1240 * 1700mm (LxWxH)
