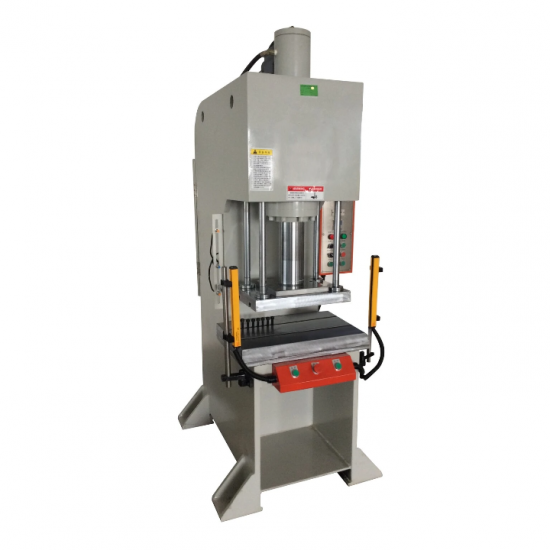

50T Single Column Metal Deep Draw Hydraulic Press Machine for Punching Ceramic Powder

50T Single Column Metal Deep Draw Hydraulic Press Machine for Punching Ceramic Powder

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-BSW07-10T
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

50T Single Column Metal Deep Draw Hydraulic Press Machine for Punching Ceramic Powder






Introduction

The single-column hydraulic machine body is a C-type floor-standing structure, open on three sides, easy to operate, and tempered after welding to ensure that the frame will never deform. It is mainly used for press fitting, assembly, shallow drawing of metal products, and forming pressing. , embossing, is a general-purpose equipment for motors, shafts, auto parts, electronic hardware products, internal combustion engines, textile machinery, washing machines, electrical appliances and other factories.


Product parameters

Model

BSW07

-10T

BSW07

-20T

BSW07

-30T

BSW07 -40T

BSW07 -50T

BSW07

 -60T

Nominal pressureT

10

20

30

40

50

60

Maximum working pressure of liquidMpa

21

21

21

21

21

21

Surface height (E) mm

850

850

850

850

850

850

Maximum opening distanceHmm

400

400

500

550

550

600

Deep  throat (s) mm

200

200

225

225

250

250

Maximum stroke(mm)

300

300

300

300

300

400

Work bench size





Left and right (L) mm

500

500

550

550

650

650

Before and after (W) mm

400

400

450

450

500

500

Speed

Rated load speed (mm/s)

165

165

165

165

155

155

Working speed(mm/s)

24

24

24

18

15

15

Return speed(mm/s)

140

140

140

125

125

125

Main frame size(mm)

700x950x2050

700x950x2060

760x950x2100

780x950x2150

800x950x2150

830x1000x2350

PowerKw

2.2Kw

3.7 Kw

3.7Kw

3.7 Kw

5.5 Kw

5.5 Kw


Features

1. Floor-standing hydraulic press has the characteristics of good rigidity, stability and high speed because it is a welding mechanism as a whole.

2. This series of hydraulic presses uses 2-20MPA liquid pressure as the power source, and external three-phase AC380V 50HZ or three-phase AC220 60HZ AC power supply.

3. This series of equipment uses liquid as the medium to transfer energy. It adopts advanced sub-cylinder hydraulic circuit, the oil temperature is low, the idle speed is above 150MM/sec, and the working speed is below 30 MM/sec.

4. The equipment is on standby, and the noise does not exceed 75 decibels when moving up and down.

5. It can be divided into manual and semi-automatic control modes. Manually, the press-fit upper mold can be stopped in any stroke range. It can be equipped with an emergency rebound button or an infrared hand guard device.

6. The press-fit stroke of this series of presses is generally controlled by a timer, pressure switch, position sensor, or the customer's own mold.

7. The height of the press-fit spindle can be adjusted by the timer or the position sensor within any stroke range.

8. Pressure, stroke, holding time, closing height can be adjusted by the customer for easy operation; with automatic counting function, can also be equipped with force measuring display, intelligent temperature controller, can be customized according to customer requirements.

9. The hydraulic mechanical output range of this series is available in various specifications of 15tf-100 tf. (1tf=1000kgf=9.8KN).


Dimension


Application


Pictures

Landing Hydraulic Press







 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
