500C Multi Segment Programmable Automatic Hot Press Machine for Making Perovskite solar cell

Sales Manager: Gia
Email: Gia@tmaxlaboratory.com
Wechat: Dingqiuna

Item No.:
TMAX-RYJ-600ZG
Certificate:
CE Certified
Warranty:
1 Year limited warranty with lifetime support

Product Details

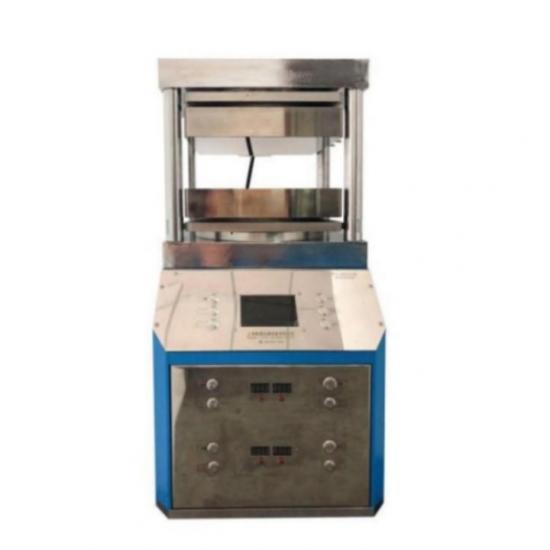

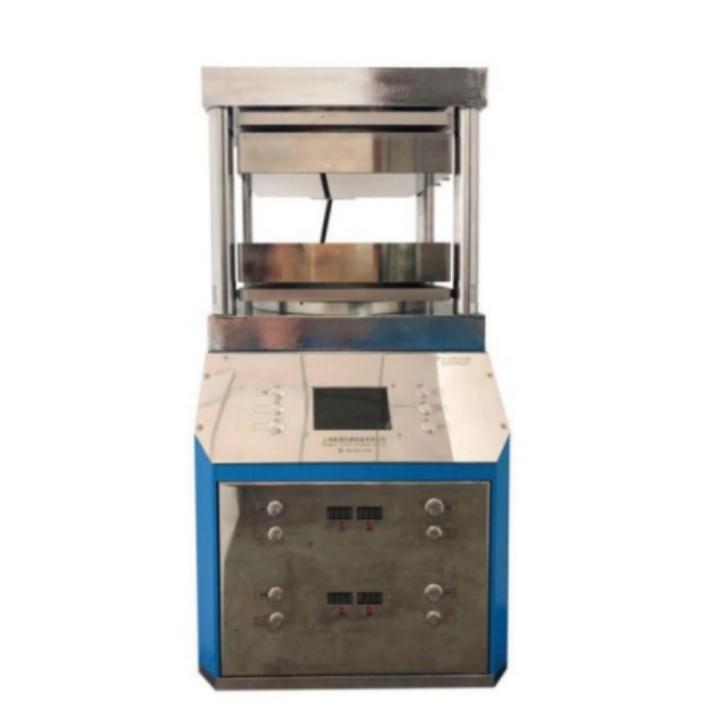

500C Multi Segment Programmable Automatic Hot Press Machine for Making Perovskite solar cell

The new "RYJ-600ZG" series of automatic heat presses are based on the original RYJ-600Z model. The mold heating system is upgraded and improved. The maximum temperature can reach 500 degrees. The equipment is cooled by a stainless steel water-cooled heat insulation board to prevent the mold temperature from being too high. The sealing parts of the main machine cause damage and aging. This machine meets the needs of some users for high temperature testing. It is an ideal supporting equipment for engineering and technical personnel such as universities, research institutes, etc. to perform spectroscopy detection and analysis. It has been widely used in catalysis, rubber, plastics, films, polymers, metallurgical powders, Research and development of new power sources and new materials.

Main Parameter

Product name	RYJ-600ZG1	RYJ-600ZG2	RYJ-600ZG3	RYJ-600ZG4
Pressure range	1-25.0T		1-30.0T	1-50.0T
Precision of pressure adjust	0.1t		0.1t	0.1t
Compression process	fully automatic, program pressure/slow pressure - program pressure holding - program pressure replenishing - timing pressure relief
The holding time	0-999.59(Min/Second) 999 minutes and 59 seconds
Type of thermostat	PLC program temperature controller
Temperature control range	RT-600.0℃,0.1 accuracy
Heating temperature of die	RT-500.0℃
Cooling method of die	Water cooling (water cooler is optional)
Equipment Insulation Mode	Imported insulation plate+Stainless steel water-cooled heat shield
Equipment structure	Integrated structure, automatic program pressure control, temperature control
Die type	Up and down 2 heating plates, polishing surface
Die size	180*180mm	200*200mm	300*300mm	400*400mm
Overall size	280420620mm	280420620mm	400500750mm	500600780mm
Power supply	220/3000W	220/3000W	220/4000W	220/8000W
Equipment weight	About 160kg	About170kg	About360kg	About460kg
Note	A hot press, water cooling machine optional! Heating die can be customized according to user demand!!!
