3KW 4KW High Temperature Rotary Tube Furnace with Two Heat Sources

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-HY-XZ-E
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

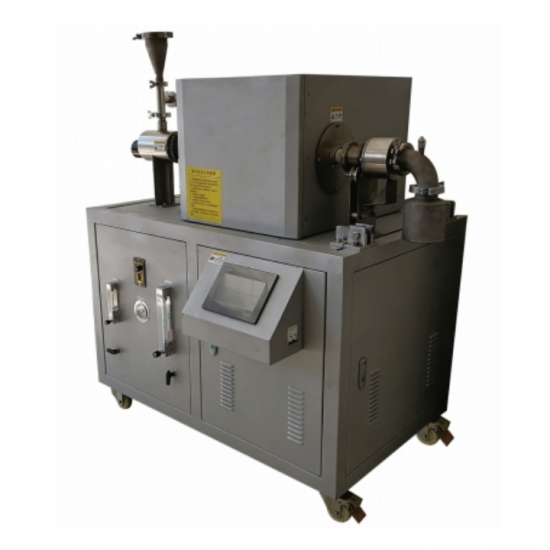

3KW 4KW High Temperature Rotary Tube Furnace with Two Heat Sources

Summarize

The double heat source rotary tube furnace is a standard multi-heat source rotary tube furnace. Resistive, microwave, or hybrid heating modes can be set. It is suitable for the preparation of new materials and the synthesis, burning and reduction of other particles and powders.

Main feature

1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;

2) The material is dynamically turned in the furnace, and the heat is uniform, and the reaction is fast and sufficient;

3) Adopt a variety of heating methods, suitable for a wider range of materials;

4) The material heating speed is fast, the uniformity is good, and the experimental efficiency is greatly improved

Technical parameter

Model Parameter	HY-XZ1510E	HY-XZ3010E
Voltage	220±10V，50Hz	380±10V，50Hz
Microwave output power	0.01~1.40kW, continuously adjustable (Panasonic)	0.01~2.80kW, continuously adjustable (Panasonic)
Electric power	3kw	4kw
Heating space (diameter x length)	φ40x130mm	Φ80x250mm
Microwave frequency	2.45GHz
Tilt Angle	-5~+35°
Rotational speed	5~30 RPM
Operating temperature	≤1100℃
Temperature measurement method	Thermocouple/infrared
Static limit vacuum	≤100Pa
Atmosphere system	Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc
Control mode	Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode)
Control program	Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven
Anti-microwave leakage	Microwave leakage level <1mW/cm2
Safety protection	Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm
Main body (L x W x H)	About 650x700x1200mm		About 850x850x1300mm

Consumables and optional accessories

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
