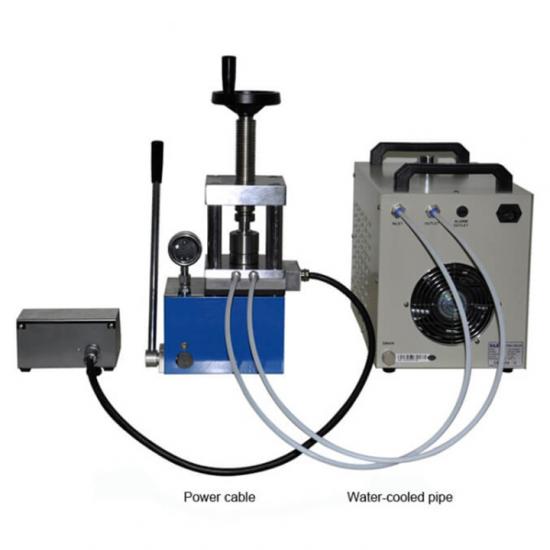

30T Double Plate Hydraulic Hot Press Machine with Split Structure
New RYJ-600D Series
New RYJ-600D series double plate hot pressing machine compared with RYJ-600C series the biggest difference this machine adopts widened panel design, can meet the hot pressing experiment of larger samples, equipped with two temperature controllers, can separately control the temperature of two plates heating, pressing film thickness up to 50um-500um, suitable for polymer materials, Plastic film and rubber products and other materials of experimental research, can also be used as a small flat vulcanizing instrument, suitable for rubber, plastic, leather, chemical, pigment, electronic appliances, textiles, hardware and other fields
Main technical parameters
Product Name |
RYJ-600D1 |
RYJ-600D2 |
RYJ-600DG1 |
RYJ-600DG2 |
Pressure range |
0-30T(0-31.5Mpa) |
|||
Pressure conversion |
1t-1.05Mpa/1Mpa=0.95t |
|||
Piston diameter |
Dia110mm chrome plating cylinder |
|||
Maximum piston stroke |
40mm |
|||
Type of pressure gauge |
Pointer; Pressure, pressure double scale display; the range 0 to 40 mpa; accuracy of 1 mpa |
|||
Pressure mode |
Manual pressure |
|||

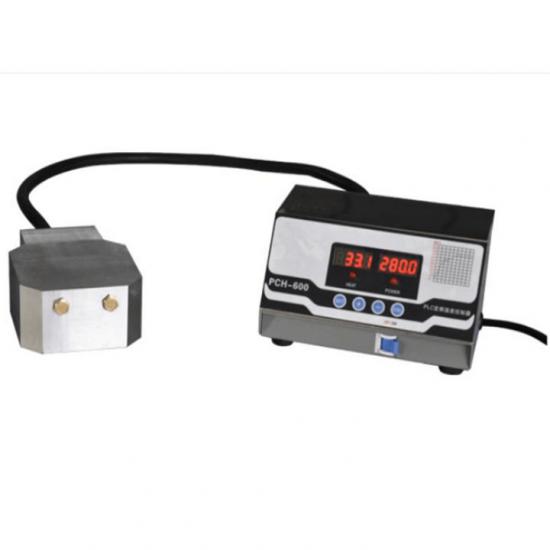

Temperature controller type |
PLC programmed temperature controller (double temperature controller) |
|||
Temperature control range |
RT-600.0℃/0.1℃ |
|||

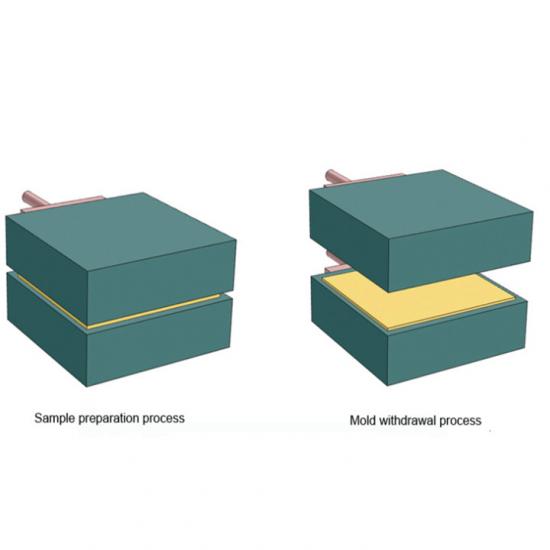

Type of hot pressing die |
Double die heating up and down (polished surface) |
|||
Heating die size |
180*180mm |
200*200mm |
180*180mm |
200*200mm |
Temperature of hot pressing die |
RT-300℃ |
RT-500℃ |
||
Heating die cooling method |
Cooling by natural or water cooler |
Cooling by natural or water cooler |
||
Equipment insulation Mode |
Imported heat shield |
Imported heat insulation board + stainless steel water cooling cycle heat insulation board |
||
Power |
220V/1000W |
220V/2000W |
||
Overall structure |
Split structure |
|||
Size of the machine |
405*260*525mm(The weight of the water cooler is not included) |
|||
Weight |
About 80-200kg |
|||
Model specification |
Water cooling machine (optional) Digital pressure gauge (optional), accuracy of 0.01Mpa, more accurate pressure control |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
