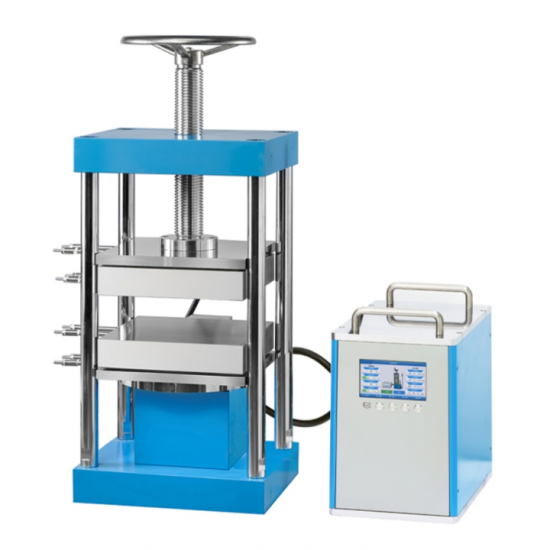

300C or 500C 30T Split Electric Hot Press with 300*300mm Heating Plate

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-PCD-600E
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

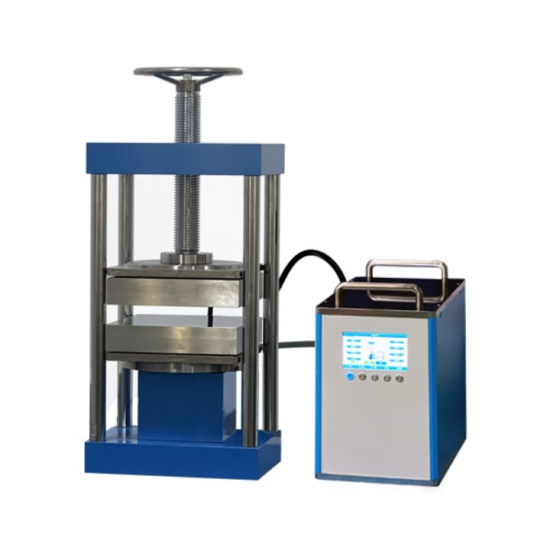

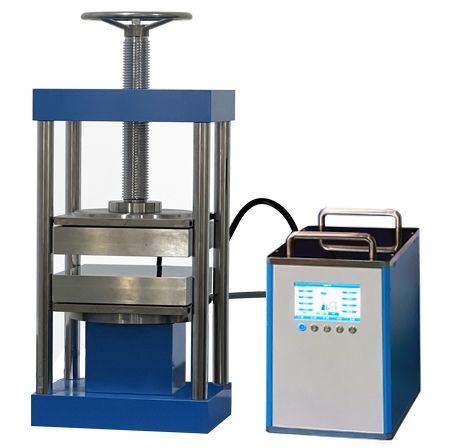

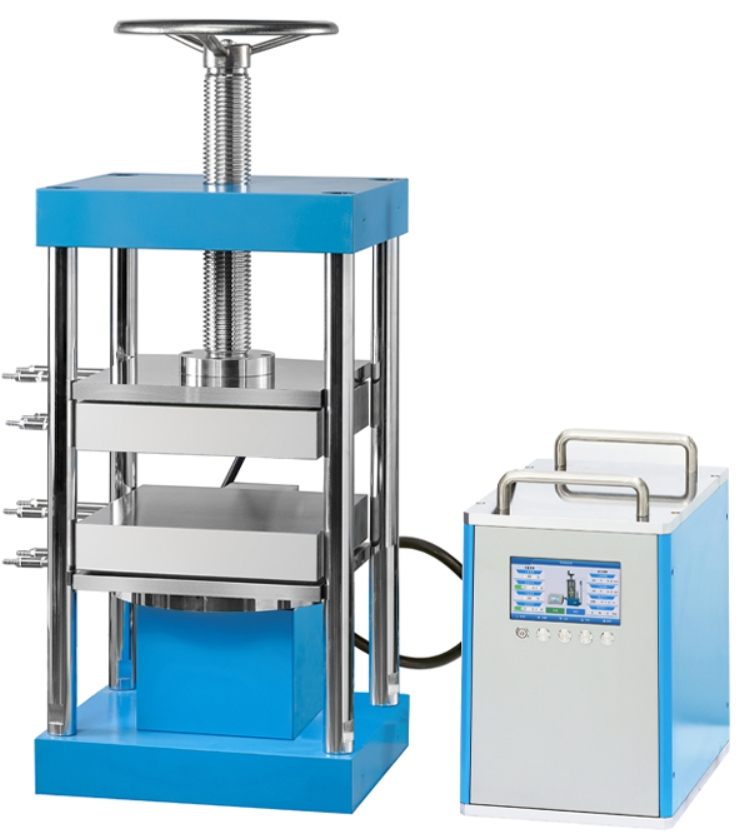

300C or 500C 30T Split Electric Hot Press with 300*300mm Heating Plate

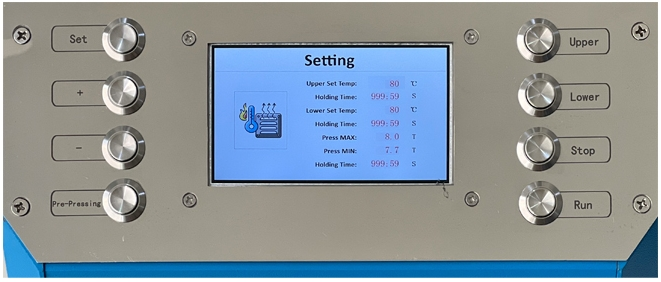

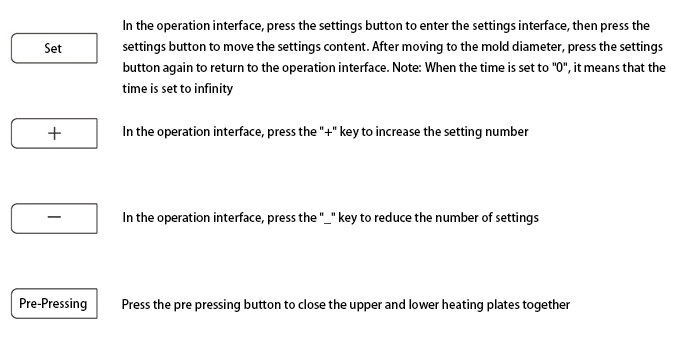

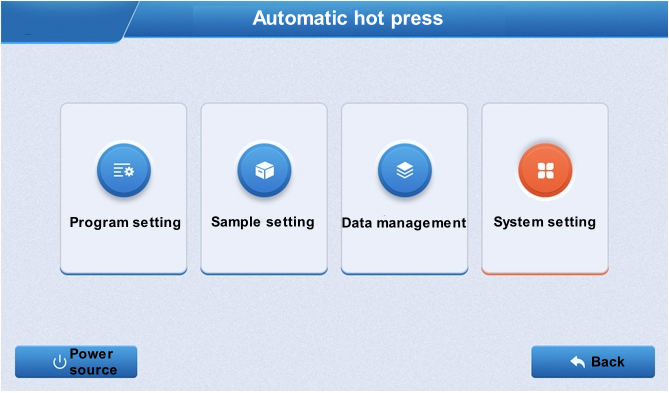

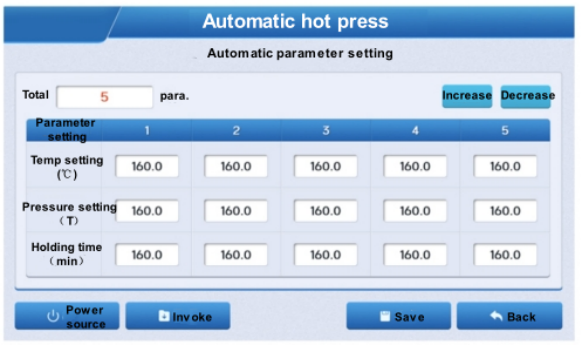

Setting interface

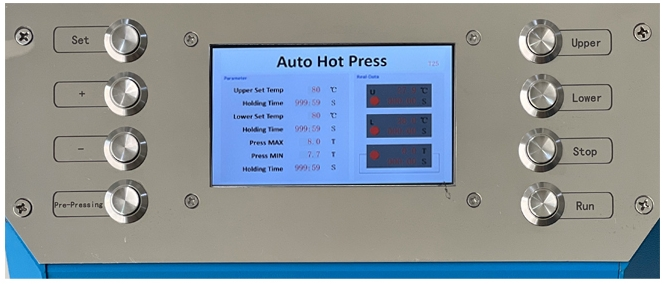

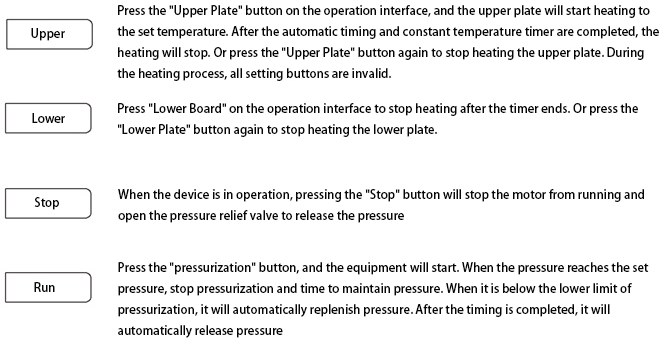

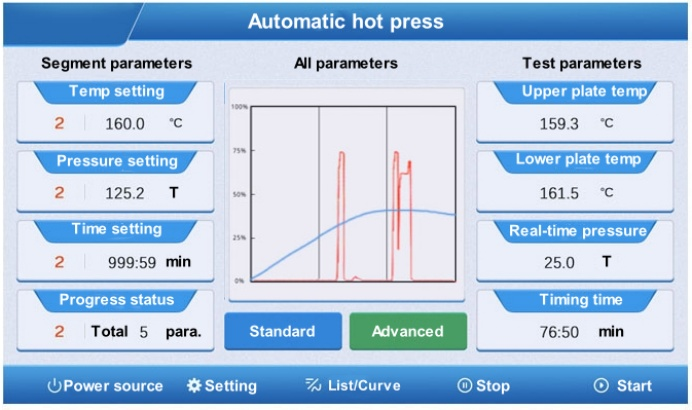

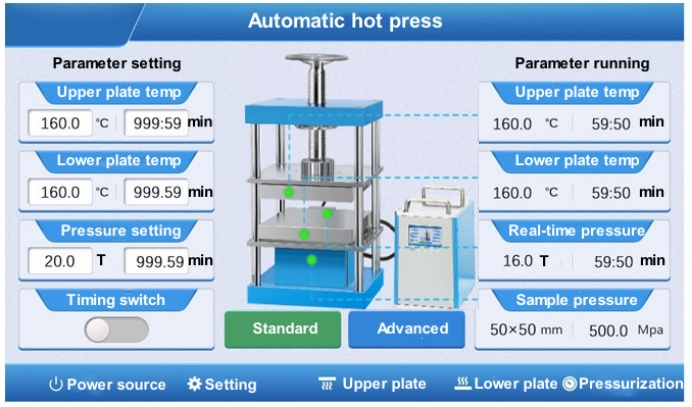

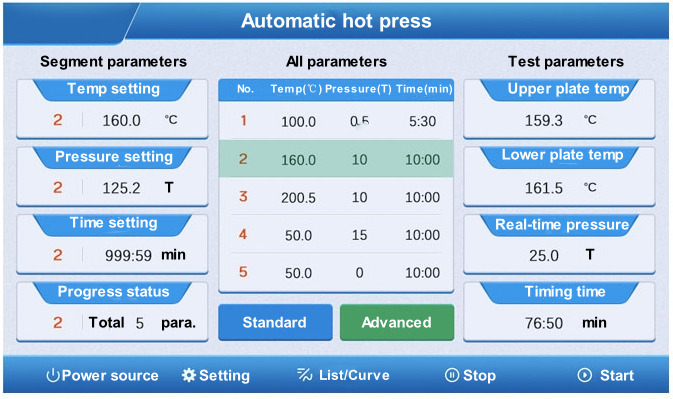

Operating interface

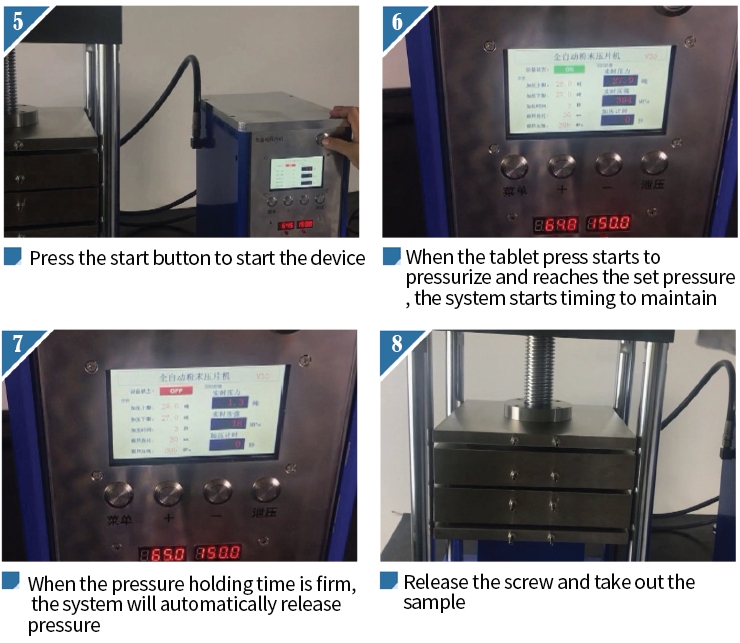

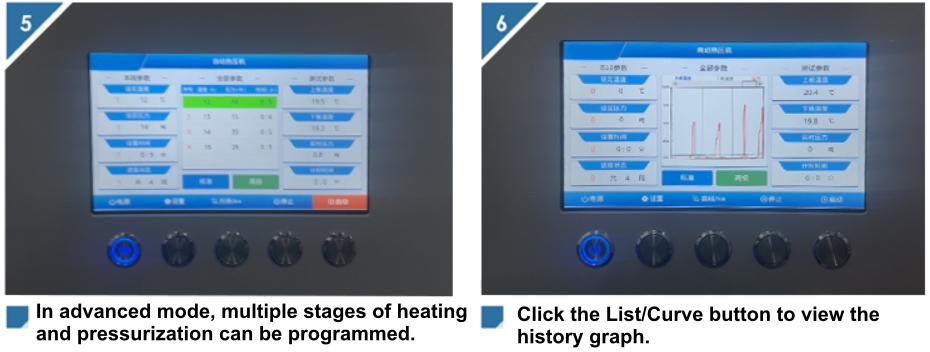

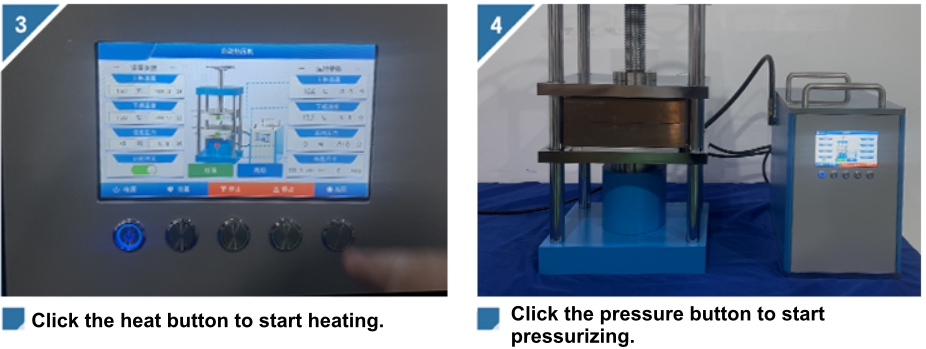

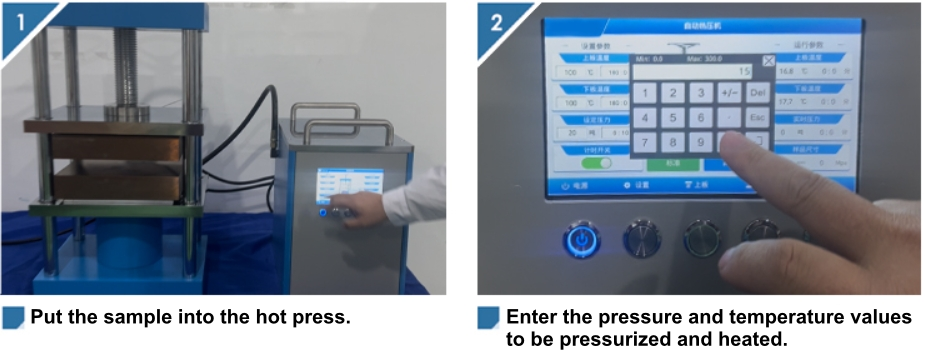

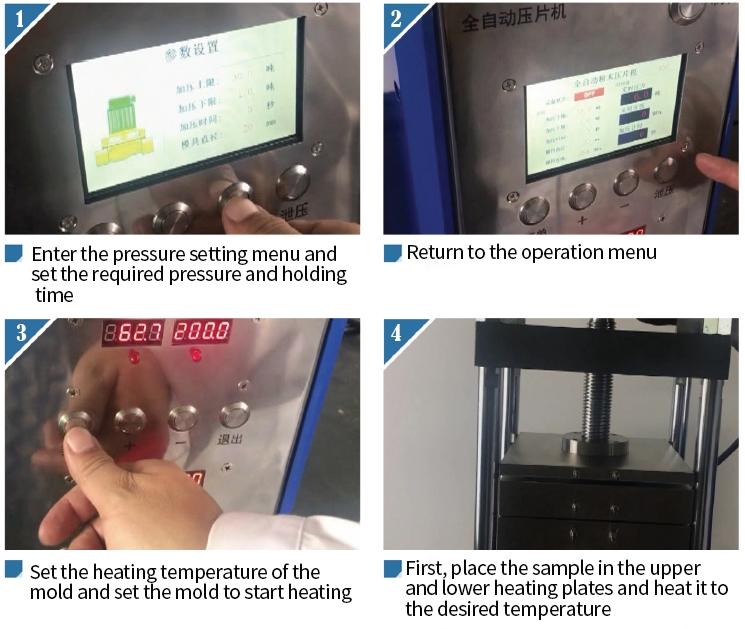

Operation procedure

Technical parameter

Instrument type

PCD-600E(300.0℃)/PCD-600EG(500.0℃)

Pressure range

0-30.0 tons

Pressurization process

Programmed pressure - programmed pressure retention - timed pressure relief

Holding time

1 s to ∞ s

Mold heating temperature

Room temperature -300.0℃/500.0℃

Constant temperature time

1 s to ∞ s

Temperature control accuracy

0.1 ℃

Heat insulation method

Imported heat shield

Cooling method

Water cooling rapid cooling [water cooling machine selection

Mold size

300x300mm(MXN)

Main engine size

380X350X600mm(KxPXH)

Overall size

700X400X600mm(LXWXH)

Power source

3500W(220V/110V can be customized)

Main engine weight

280 Kg

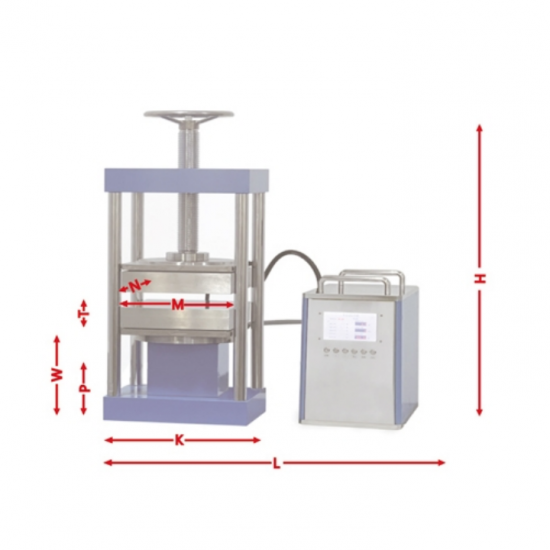

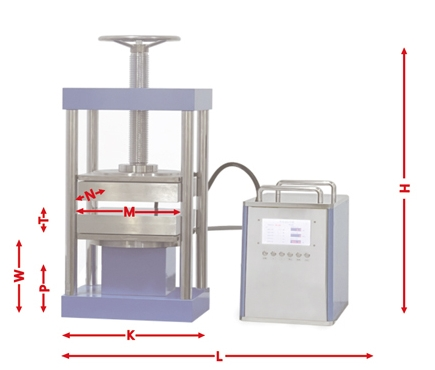

Powder tablet press size diagram

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
