300C 40T Split Automatic Hot Press with 400*400mm Heating Plate

300C 40T Split Automatic Hot Press with 400*400mm Heating Plate

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna

  • Item No.:

    TMAX-PCD-600F
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    15 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    One year limited warranty with lifetime technical support
Product Details

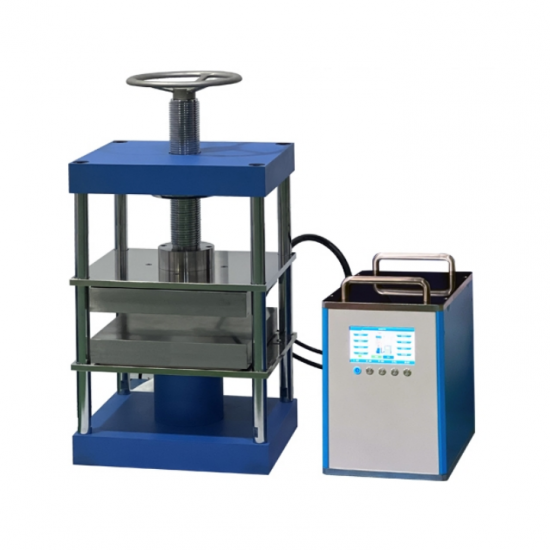

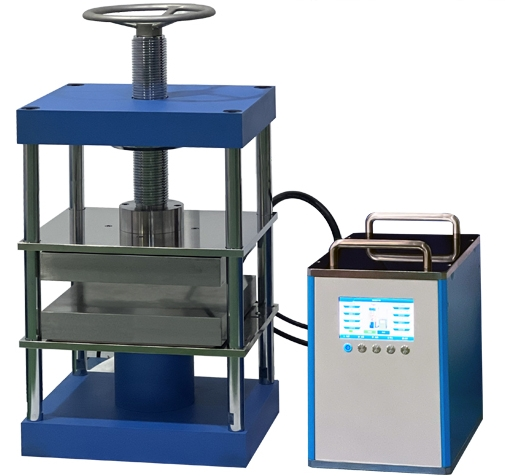

300C 40T Split Automatic Hot Press with 400*400mm Heating Plate









Setting interface





Operating interface







Operation procedure







Technical parameter

Instrument type

PCD-600F

Pressure range

0-40.0 tons

Pressurization process

Programmed pressure - programmed pressure retention - timed pressure relief

Holding time

1 s to ∞ s

Mold heating temperature

Room temperature -300.0℃

Constant temperature time

1 s to ∞ s

Temperature control accuracy

0.1 ℃

Heat insulation method

Imported heat shield

Cooling method

Water cooling rapid cooling [water cooling machine selection

Mold size

400x400mm(MXN)

Main engine size

500X480X650(KxPXH)

Overall size

850X480X650(LxWXH)

Power source

5500 W(220V/110V can be customized)

Main engine weight

480 Kg

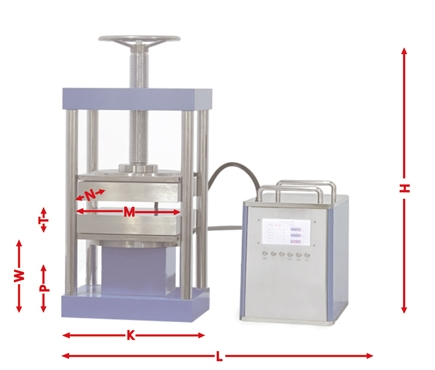

Powder tablet press size diagram




 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
