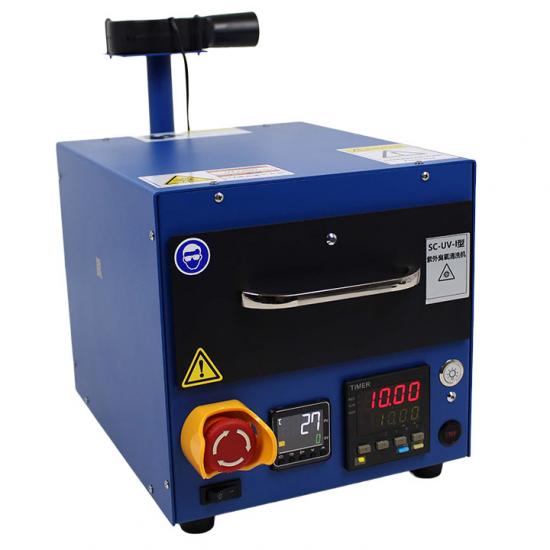

200C UV Ozone Cleaner Cleaning Machine with Optional Heating And Temperature Control Function for Perovskite Based Solar Cell Lab Line

Material

Made of stainless steel ， which is resistant to acid and alkali, anti-corrosion

Structure

Drawer type sample stage, easier to take and place substrate

Air channel

Reserved intake port, a wide variety of cleaning equipment

Protection

The drawer opening and closing are interlocked with the UV lamp to avoid UV damage

Timer

Button timer, digital countdown, easy to look at it

Operation

The cleaning process can be manually terminated at any time

Accessories

Optional ozone neutralizer to avoid ozone damage

Cleaning wave band

185nm and 254nm

Average light intensity at a distance of 3-5mm from the UV lamp

28~32mW/cm²

Light tube

Dual wave low pressure mercury tube

Light tube power

150W

Irradiation area

150mm×200mm

Adjustable irradiation

distance

5~30mm

Timer range

0~99min99s   with automatic countdown function

Heating area

(SC-UV-I+model only)

Room temperature–200℃ (suitable for SC-UV-I+model)

Air intake, Aire outlet

Air intake： φ8mm， Air outlet： φ25mm

Outer dimension of the device

250mm（W）×300mm（D）×260mm（H）

Tray outer dimension

160mm（W）×200mm（D）×5~30mm（H）

Product Weight

Relative humidity

< 85%

Ambient temperature

0-40℃

Warranty

1 year
