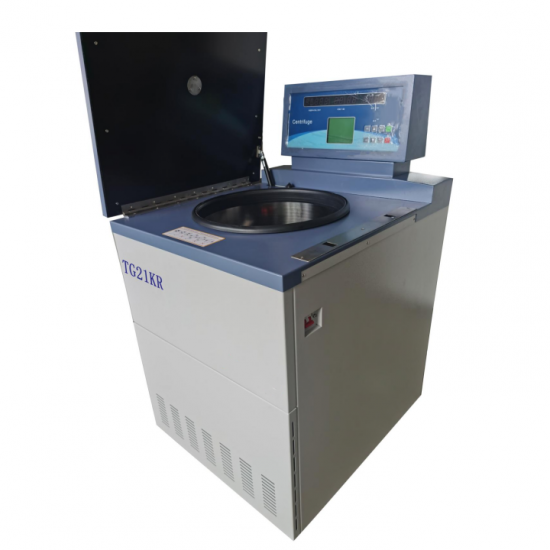

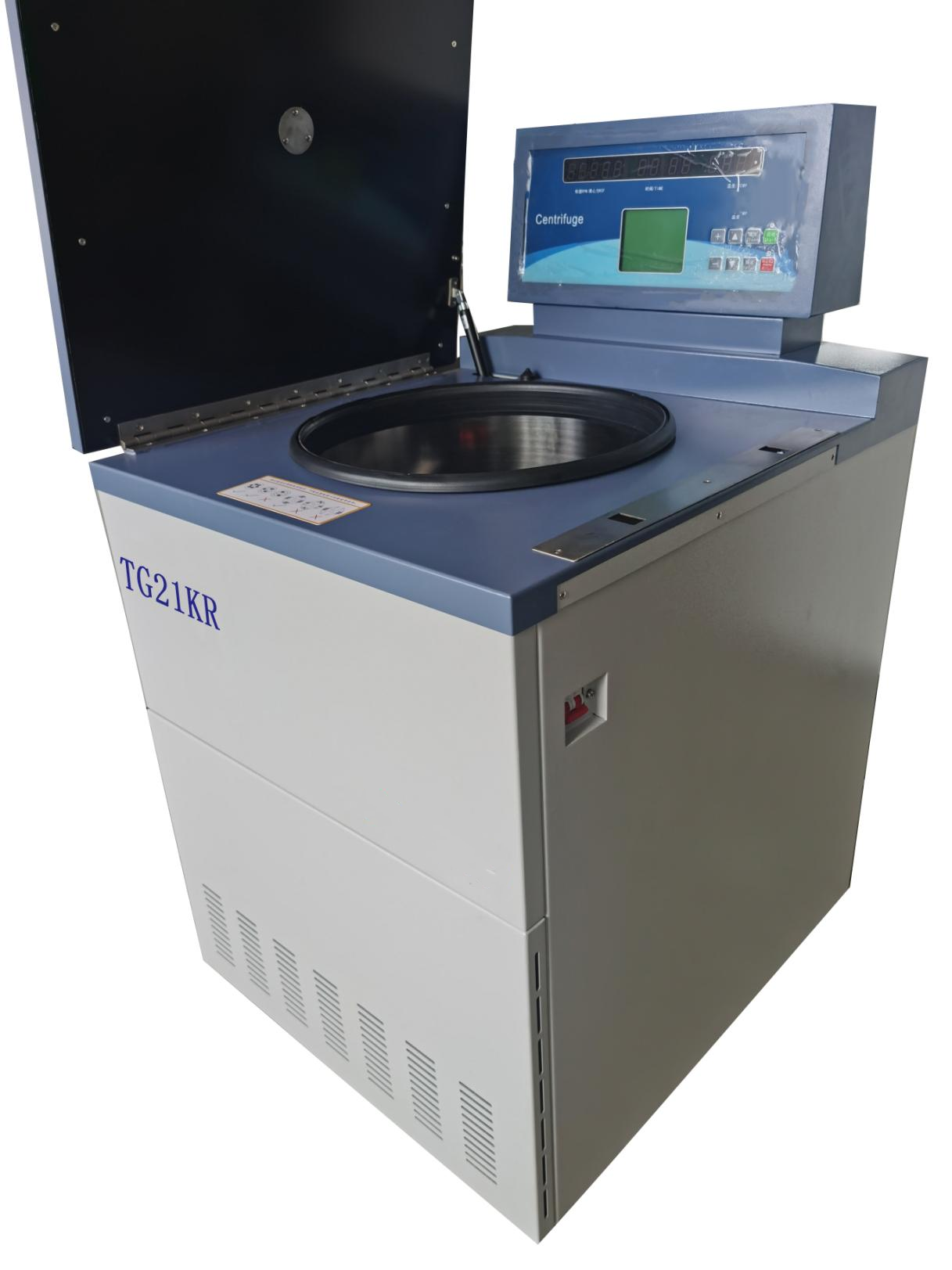

Vertical Type Advanced Intelligent High Speed Refrigerated Centrifuge Used for Collecting Microorganisms And Cell Fragments

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-TG21KR
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Vertical Type Advanced Intelligent High Speed Refrigerated Centrifuge Used for Collecting Microorganisms And Cell Fragments

This series of centrifuges is an advanced intelligent instrument, which is mostly used for collecting microorganisms, cell fragments, cells, large organelles, sulfuric acid precipitates and immune precipitates.

Product characteristics

1) Drive: AC variable frequency motor drive. It has a soft brake function to prevent sample resuspension

2) Speed control: It takes 14 seconds to accelerate to the maximum speed, and 15 seconds to drop from the maximum speed to zero

3) Display: Intelligent control, touch panel, LCD, LED dual display, operating parameters can be automatically memorized, RCF can be set directly.

4) Refrigeration: Using imported fluorine-free compressor units and control valves, small vibration, fast refrigeration, low noise, to meet the requirements of environmental protection.

5) Rotor: Rotor standby cooling function. Autoclave rotor (121℃·20 min)

6) Fuselage: Fuselage adopts high quality steel structure; Stainless steel centrifugal chamber.

7) Safety protection: Rotor number identification function, with door cover, overspeed, imbalance and other multiple protection functions.

8) Control: 10 kinds of lifting rate, can store 40 kinds of custom working mode, point function, short centrifugation, easy to diversify centrifugation.

Performance parameter

Model number	TG21KR
Maximum speed	21000r/min
Maximum relative centrifugal force	48900×g
Maximum capacity	6×500ml
Speed accuracy	±20r/min
Timing range	0～99h59min59s
Temperature control range	-20℃~40℃
Temperature control accuracy	±1℃
Compressor	Imported high performance compressor unit, fluorine free refrigerant
Machine noise	≤58dB
Electric machine	Ac variable frequency motor, microcomputer control
Power source	AC 220V 50Hz 15A
Overall dimension	810×720×1220mm
Weight	320kg

Adaptive rotor

Rotor number	Max capacity	Max speed	Max RCF	Centrifugal tube size
No.5 angle rotor	12×10/1.5ml	21000r/min	48900×g	Φ16×81/Φ11×41.5
No.9 angle rotor	6×50ml	20000r/min	43000×g	Φ28×105
No.18 angle rotor	8×50ml	15000r/min	27720×g	Φ29×106.5
No.24 angle rotor	8×100ml	12000r/min	19830×g	Φ38×124
No.27 angle rotor	4×250ml	14000r/min	26730×g	Φ64×113
No.32 angle rotor	6×500ml	8000r/min	11680×g	Φ74×168
No.33 angle rotor	6×300ml	10000r/min	18500×g	Φ63×157 (round bottom)
No.34 angle rotor	6×250ml	12000r/min	22470×g	Φ63×157 (round bottom)
No.58 horizontal rotor	32×15ml	4000r/min	3160×g	Φ 16×114-118
No.63 horizontal rotor	4×500ml	5000r/min	5470×g	Φ8×140
No.65 horizontal rotor	4×50ml	5000r/min	4390×g	Φ28×105-115
No.78 horizontal rotor	8×50ml	4000r/min	2950×g	Φ28×105-115

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
