Product Details

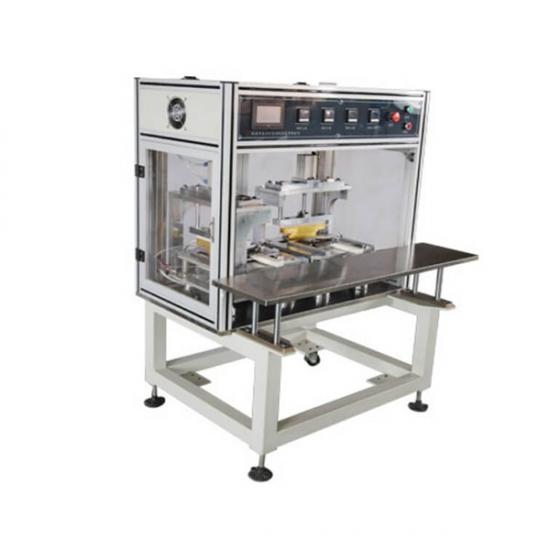

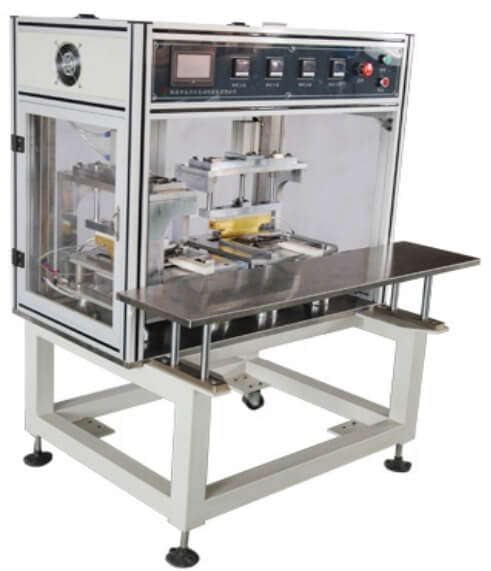

Two Workstations Sealing Machine For Pouch Cell Top And Side Sealing


Introduction

It is suitable for pouch cell top and side hot sealing(soft seal for top seal and hard seal for side seal).


Specification

Power Supply

220V, 50/60Hz, single phase

Sealing width

2~10mm

Applicable battery size

≤250*210*10mm

Sealing length

280mm

Sealing temperature

RT~230℃ adjustable

Sealing time

0-99.9 seconds adjustable

Machine productivity

300-500 EA/H

pressure

0.5-0.6MPa

safety protection

The machine is equipped with safety light curtain

Machine size

1100mm(L) X880mm (W) X1400mm (H)

Equipment weight

300KG



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
