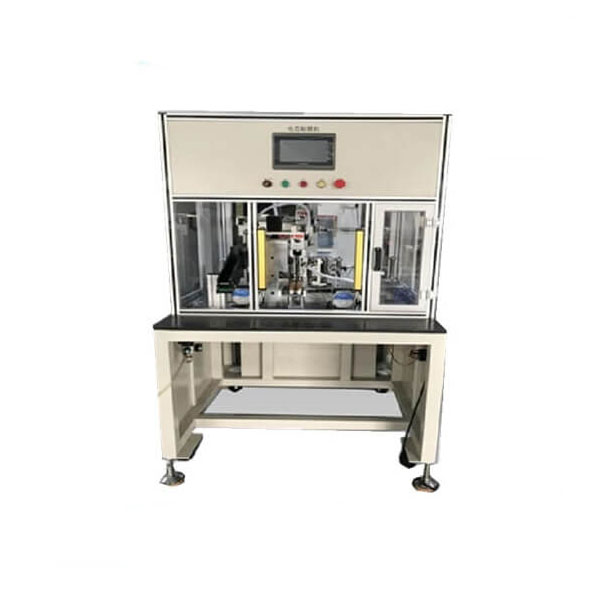

Automatic Vertical Sticking Machine For Pouch Cell Top And Side Sealing

Sales Manager:David

Wechat:18659217588

Item No.:
TMAX-TMJ150
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Automatic Vertical Sticking Machine For Pouch Cell Top And Side Sealing

Application

It is suitable for automatic battery protection MYLAR after the top and side sealing of lithium pouch cell to avoid scratching the cell surface during the flow drawing process.

Principle

Manually place the battery cell upright in the feeding guide groove, push the battery cell to the front positioning block, and send the positioned battery cell to the filming rubber roller to complete the filming and then send it by the conveyor belt (discharge) Recycling place (this equipment realizes single person and single machine)

Basic parameters

Power supply	AC220V/50Hz, power: 1.5KW (prepared by customer)
Compressed air	≥0.6 MPa 10L/min(prepared by customer)
Weight	About 500kg
Dimensions	(LWH) 140012001700 mm
Color	International Warm Grey 1C

Technical parameters

Applicable specifications	W: 30-100mm(without airbag); H: 50-150mm, T: 3-12mm
Can be adjusted according to different types of batteries, battery width adjustment range	30-100mm(without airbag)
Input parameter	The maximum outer diameter of the protective film is 300mm, and the installation inner diameter is 78mm
Stick MYLAR roller effective length	150mm
Accuracy	After the battery cell is pasted with the protective film, the accuracy of the length direction of the battery cell is ±0.5mm, and the accuracy of the width direction is ±0.5mm
Output	900-1200pcs/h
