Strengthen Three Roll Mill for High Viscosity and Hardness Material

Strengthen Three Roll Mill for High Viscosity and Hardness Material

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna



  • Item No.:

    TMAX-SGX
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

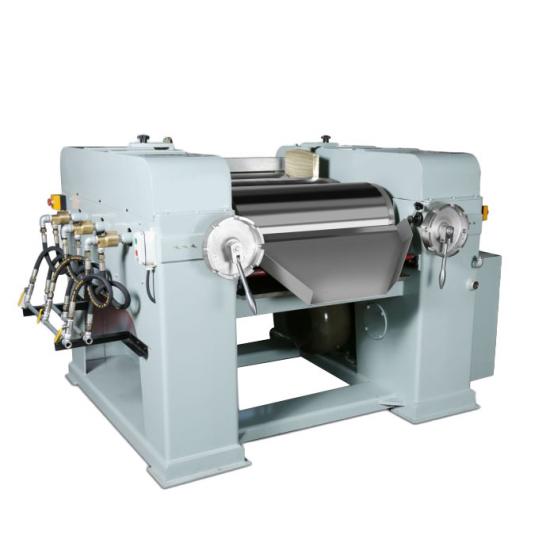

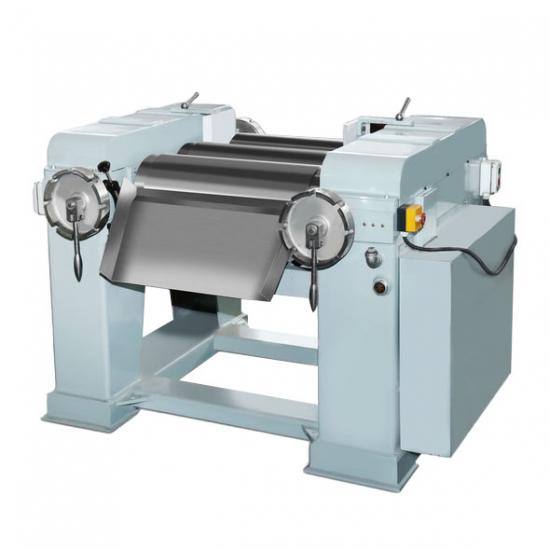

Strengthen Three Roll Mill for High Viscosity and Hardness Material


This SGX Strengthen Three Roll Mill is widely used in high viscosity and hardness material including pencil core, silicon rubber, blue bubble, and reflex blue paste.


Model SGX5 SGX6 SGX9 SGX12 SGX16
Roller dia.,mm 120 150 260 305 406
Roller length,mm 280 300 675 700 800

Sow roller speed,rpm

22 25 13 11 12.4

Mid roller speed,rpm

52 57 38 35 37

Fast roller speed,rpm

120 132 108 109 112
Motor power,kw 2.2-4 4-7.5 11-15 15-30 30-37
Weight,kg 450 500 2300 3800 5300
Size,mm 830*750*920 980*750*915 1800*1400*1180 1950*1520*1200 2050*1810*1500



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
