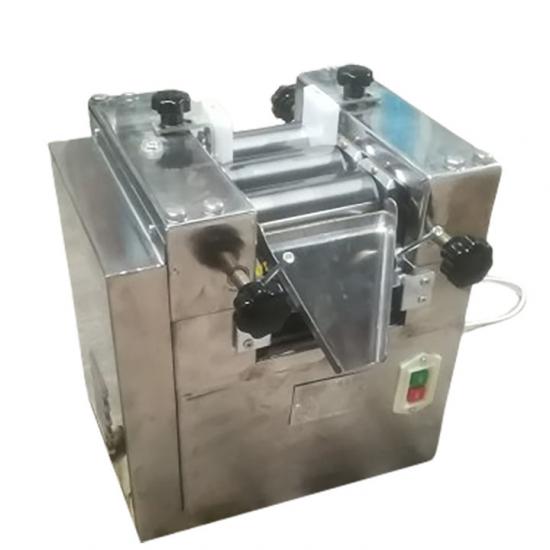

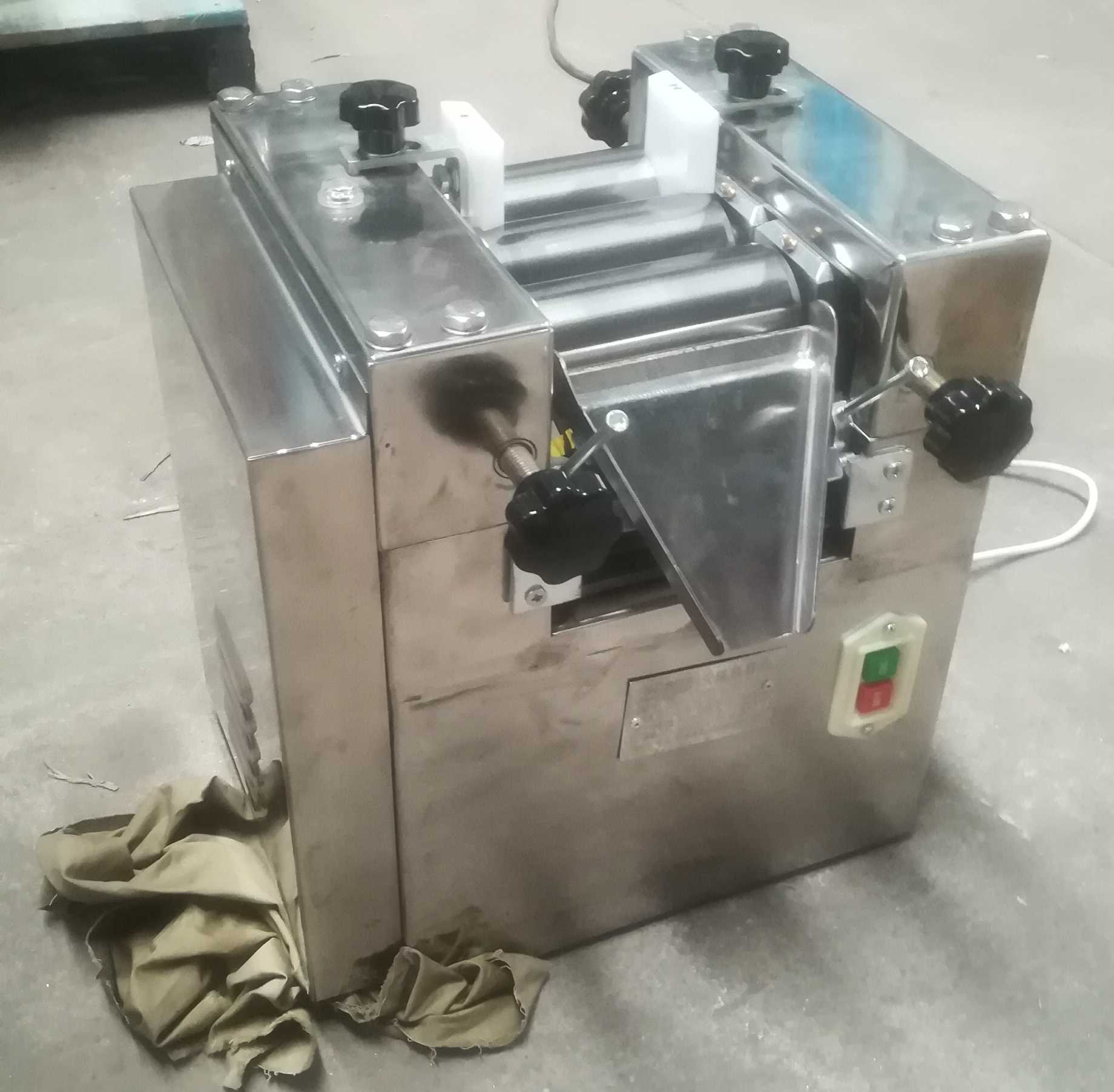

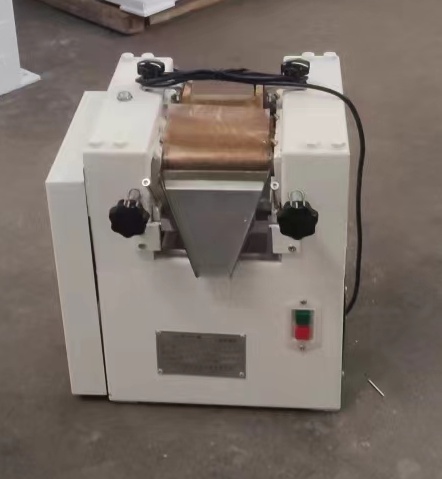

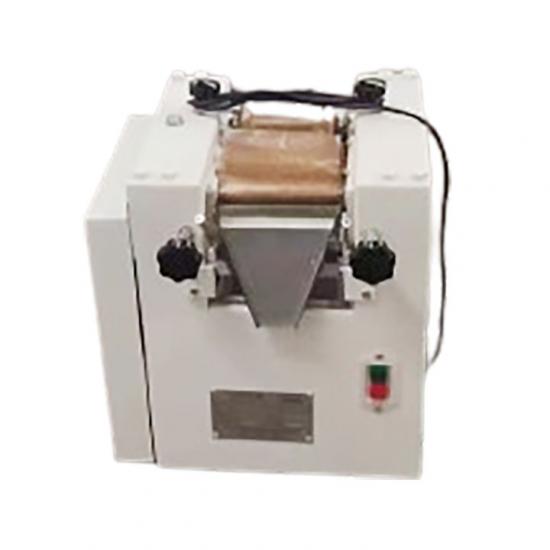

Roller Diameter 65mm 150mm 200mm 260mm 405mm Three Roller Mill with 304 Stainless Steel Frame And Nickel-Chromium Rolls

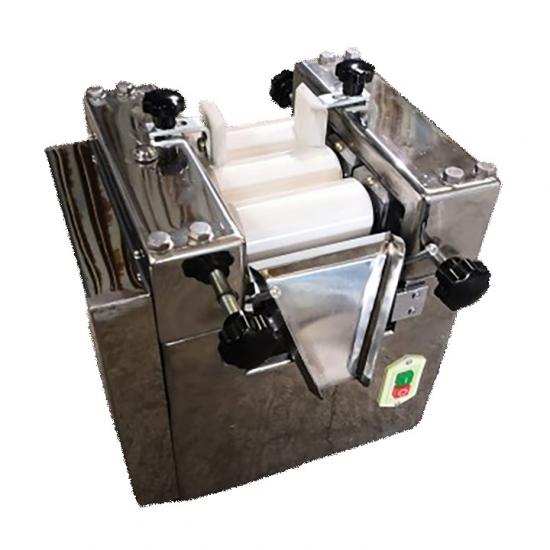

(Ceramic zirconia roller, frame material is stainless steel 304)



(Nickel-chromium roller, frame material is stainless steel 304)



(Chilled alloy roller, frame material is ordinary iron)



Main technical parameters

Parameter		S65	S150	S200	S260	S405
Roller diameter (mm)		Ф65	Ф150	Ф200	Ф260	Ф405
Roll working length (mm)		125	300	500	695	800
Roll speed	Slow roll	32	28	20	19.1	12
	Middle roll	89	66	55	54.5	37.6
	Fast roll	250	152	155	155	116
	Power (kw)	0.75	2.2	4	7.5	15
	Speed (r.p.m)	1400	1420	1420	970	970
Roller speed ratio		1:2.8:7.8	1:2.5:64	1:2.8:8.1	1:2.8:8.1	1:3:94
Overall dimensions (L×W×H)		420×400 ×440	820×800 ×920	1180×1120 ×980	1650×1350 ×1100	2150×1980 ×1250
Weight (kg)		80	500	800	2300	5218

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
