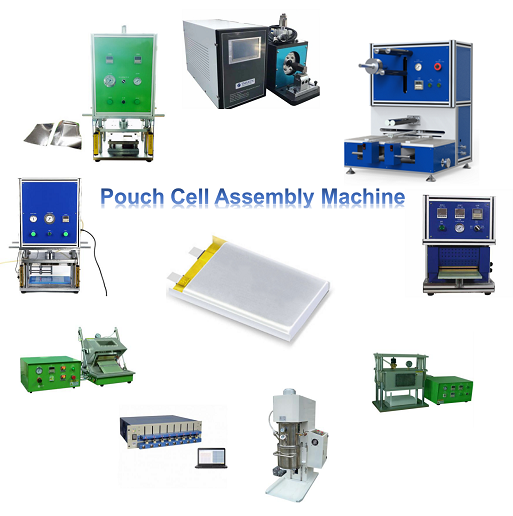

Pouch Cell Lab Pilot Assembly Machine Line

Process	Item	Product Name	Description	Web address
Powder processing	Furnace	Muffle Furnace/Tube Furnace/Atmosphere Muffle Furnace...		https://www.tmaxcn.com/1400-c-40-segment-muffle-furnaces-w-pc-interface_p1078.html
Slurry vacuum mixing	Mixer	Compact Vacuum Mixer With Vibration Stage & Two Containers (150 & 500ml)	With 150ml and 500ml container, Rotary Speed:320rpm	https://www.tmaxcn.com/compact-vacuum-mixer-with-vibration-stage-two-containers-150-500ml_p424.html
		Compact Dual-Shaft Planetary Vacuum Mixer Machine With A 500 ML Container	Dual-Shaft, 500ml container, Rotary Speed:600rpm	https://www.tmaxcn.com/compact-dual-shaft-planetary-vacuum-mixer-machine-with-a-500-ml-container_p385.html
Electrode coating	Coater	Laboratory Electric Heat Film Coating Machine For Electrode Coater With Dryer	Effective coating area:100*250mm	https://www.tmaxcn.com/laboratory-electric-heat-film-coating-machine-for-electrode-coater-with-dryer_p904.html
			200*300mm
			250*550mm
			250*800mm
		Micrometer Adjustable Film Applicator With Digital Display-100mm Width	With digital gauge,coating width:100mm	https://www.tmaxcn.com/micrometer-adjustable-film-applicator-with-digital-display-100mm-width_p1472.html
		Lab Compact Film Vacuum Coating Machine with 300mm Width Doctor Blade	Bar coating, coating width:100mm	https://www.tmaxcn.com/lab-compact-film-vacuum-coating-machine-with-300mm-width-doctor-blade_p491.html
Electrode pressing	Press Machine	Electric Roller Press Machine With Variable Speed	100*100(dia*width,mm),electric,with heating function	https://www.tmaxcn.com/electric-roller-press-machine-with-variable-speed_p379.html
			100*200
			100*300
			100*400
		Lab Small Pressing Calendar Rolling Machine	100*100(dia*width,mm),maual,without heating function	https://www.tmaxcn.com/lab-small-pressing-calendar-rolling-machine_p843.html
			100*200
			100*300
Electrode cutting	Die cutter	Lab Electrode Die Cutter For Pouch Cell Electrodes Cutting	Suitable for small size electrode cutting Max. customized size:140mm L x 80mm W Including one customized cutting die 190USD per extra cutting die	https://www.tmaxcn.com/lab-electrode-die-cutter-for-pouch-cell-electrodes-cutting_p1474.html
		Lab Electrode Die Cutter For Pouch Cell Electrode Sheet With Two Size Range Optional	Suitable for various size range electrode cutting Max. customized size:200mm(L) * 300mm(W) Including one customized cutting die 190USD per extra cutting die	https://www.tmaxcn.com/lab-electrode-die-cutter-for-pouch-cell-electrode-sheet-with-two-size-range-optional_p906.html
Electrode stacking	Stacker	Laboratory Electrode Stacking Machine For Pouch Cell Production Line	Suitable for various electrode size stacking, manual	https://www.tmaxcn.com/laboratory-electrode-stacking-machine-for-pouch-cell-production-line_p907.html
		Semi-Automatic Stacking Machine For Pouch Cell Electrodes	Max suitable electrode size:200mm*200mm	https://www.tmaxcn.com/semi-automatic-stacking-machine-for-pouch-cell-electrodes_p502.html
Tab Welding	Ultrasonic spot welder	Al Tab Ni Tag Ultrasonic Welding Machine	2000W, 40kHz, max.40 Layers	https://www.tmaxcn.com/au-fe-ni-ag-ultrasonic-metal-welder-tabbing-max-40-layers_p909.html
			3000W,  40kHz, max.60 Layers
Case forming	Forming machine	Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films	Including one customized forming die 1010USD per extra forming die Max customized size：80mm*80mm	https://www.tmaxcn.com/pouch-forming-machine_c61
			Including one customized forming die 1120USD per extra forming die Max customized size：120mm*120mm
Top&side welding	Hot sealing machine	Compact Heating Sealer For Sealing Laminated Aluminum Case Of Pouch Cells	With rubber sealing blade, suitable for sealing with tab, sealing length:200mm	https://www.tmaxcn.com/compact-heating-sealer-for-sealing-laminated-aluminum-case-of-pouch-cells_p397.html
			Sealing length:300mm
Electrolyte injection	Electrolyte filing machine	Bottletop Electrolyte Digital Dispenser With 32oz Boston Round Glass Bottle: 1- 10 Ml Adjustable	Manual operation, digital display	https://www.tmaxcn.com/bottletop-electrolyte-digital-dispenser-with-32oz-boston-round-glass-bottle-1-10-ml-adjustable_p470.html
		Single Head Electric Injection Pump For Lithium Ion Battery Electrolyte Filling	Automatic, PLC controlled	https://www.tmaxcn.com/single-head-electric-injection-pump-for-lithium-ion-battery-electrolyte-filling_p651.html
Electrolyte Diffusion & Degassing	Diffusion & Degassing Chamber	Pouch Cell Electrolyte Diffusion/Degassing Chamber	Can be put into glove box；Operation Temperature:-20 to 40 ℃	https://www.tmaxcn.com/pouch-cell-electrolyte-diffusion-degassing-chamber_p1016.html
Vacuum sealing	Vacuum sealer	Laboratory Vacuum Sealing Machine	Can be put into glove box, sealing length:200mm	https://www.tmaxcn.com/laboratory-vacuum-sealing-machine_p806.html
			Sealing length:300mm
			Sealing length:400mm
Battery performance testing	Battery tester	5V6A 8 Channel Lithium Ion Battery Tester Equipment For Experiment	Testing range from 12.0 mA to 6000 mA, up to 5V.	https://www.tmaxcn.com/high-accuracy-battery-internal-resistance-tester-for-lab-r-d_p606.html
		10V10A 8 Channel Lithium Ion Battery Tester Equipment For Experiment	Testing range from 12.0 mA to 10000 mA, up to 10V.



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
