200mm Length Compact Vacuum Sealer Machine for Vacuum Pre-Sealing

Sales Manager:David

Wechat:18659217588

Item No.:
TMAX-YF200
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

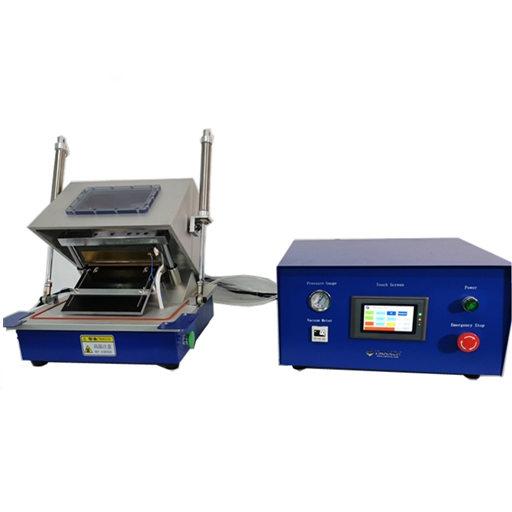

200mm Length Compact Vacuum Sealer Machine for Vacuum Pre-Sealing

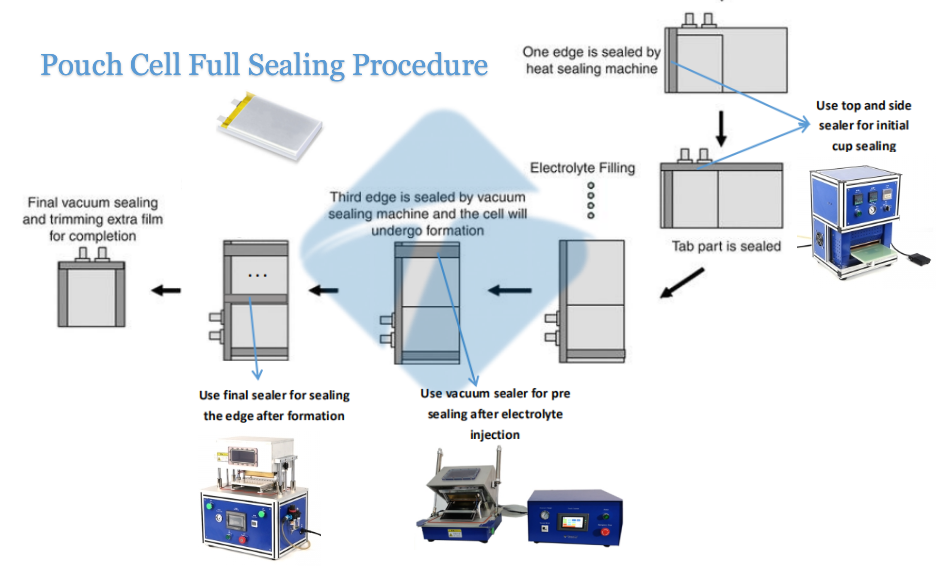

TMAX-YF200compact vacuum sealeris mainly used for sealing aluminum-laminated case in glove box after injection of electrolyte into pouch Li-ion cell or after formation for final seal (polymer Li-Ion cell). Heatable sealer blade is built into the chamber, automatically sealing the aluminum film pouch case for polymer battery.

Model	Compact Vacuum Sealer TMAX-YF200
Source voltage	AC 220V/110V, 50/60HZ
Power	600W
Warranty	One year limited warranty with lifetime support
Advantages	1 Sealing Head adopts copper material, good heat transfer effect, 2 With adjust plate, Can apply to different specifications battery, and the adjusting easily
Vacuum degree	-95Kpa - 0
Sealing head TEM	RT-250℃, adjustable
TEM accuracy	±1.5℃
Sealing pressure	0-7Kg/cm2, adjustable
Sealing time	0-99s, adjustable
Sealing Blade	Hard type (without rubber, only for Al case sealing, not suitable for sealing case with tab in between)
Sealing width	5mm, customized
Sealing head length	200mm
Suitable battery size (Inner size)	18012010mm
Air source	0.5-0.7MPa (72.5-102psi)
Dimension(LWH)	Sealing Unit with Chamber Closed: 470430480mm Sealing Unit with Chamber opened: 470430559mm Control Unit: 420320220mm
Weight	About 50kg
