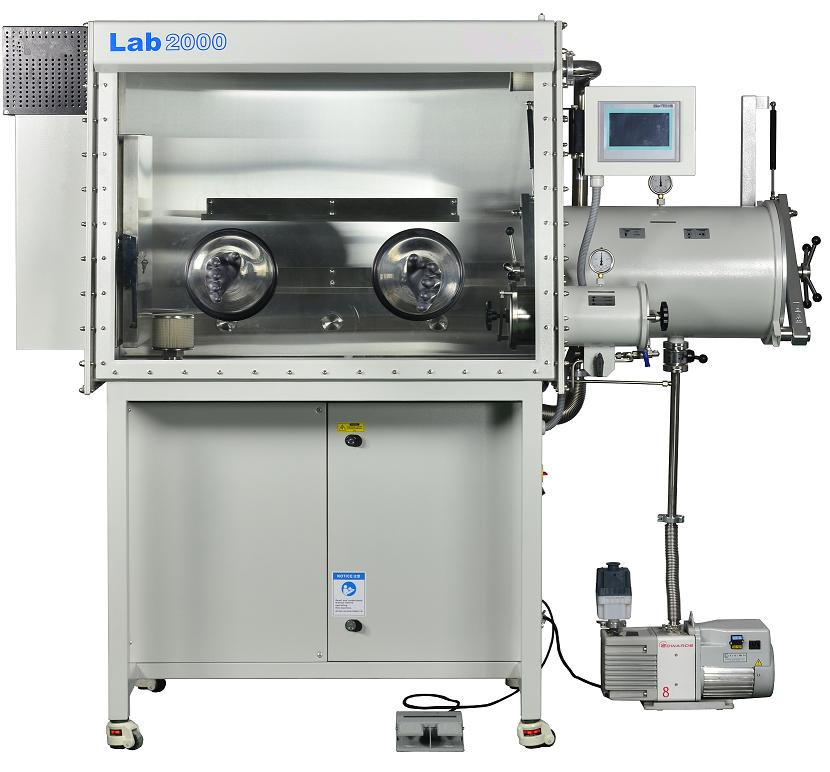

Dual-Workstation Single-Side Vacuum Glove Box with H2O & O2 Purification System for Lithium Battery Experiment

Specification:

Structure	Integrated structure (Purification System integrated under the box)
Power Supply	110 - 220V AC, 50/60Hz, Single-phase

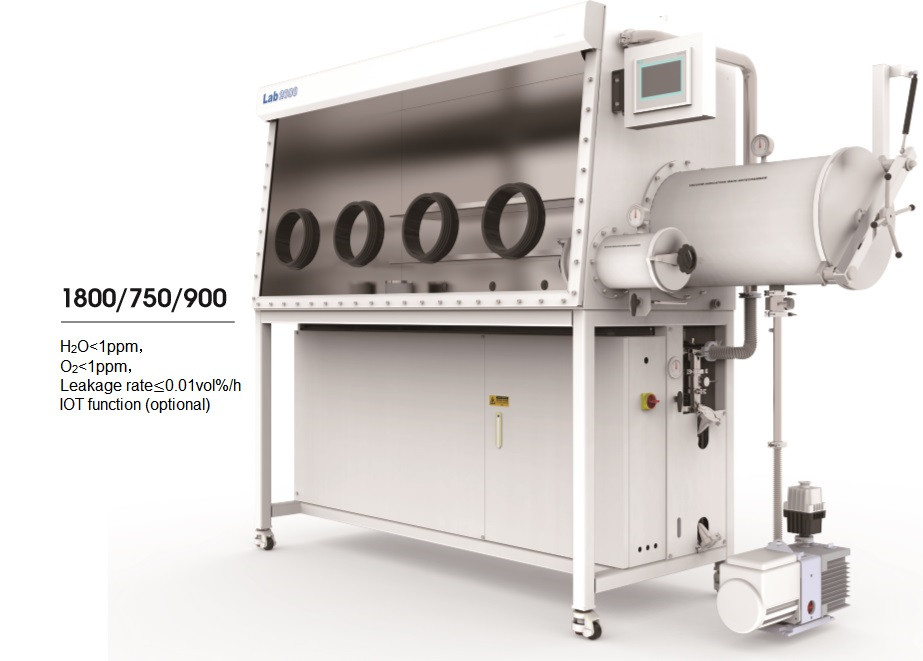

Glove box Box	Box Material: 304 Stainless Steel (Type 304), thickness 3mm  Box Size（excluded antechamber and  support）: 1800mm(L) x 750mm(W) x 900mm(H)  70.87" x 29.5" x 35.4"  Box Support height: 900mm（35.43" ）

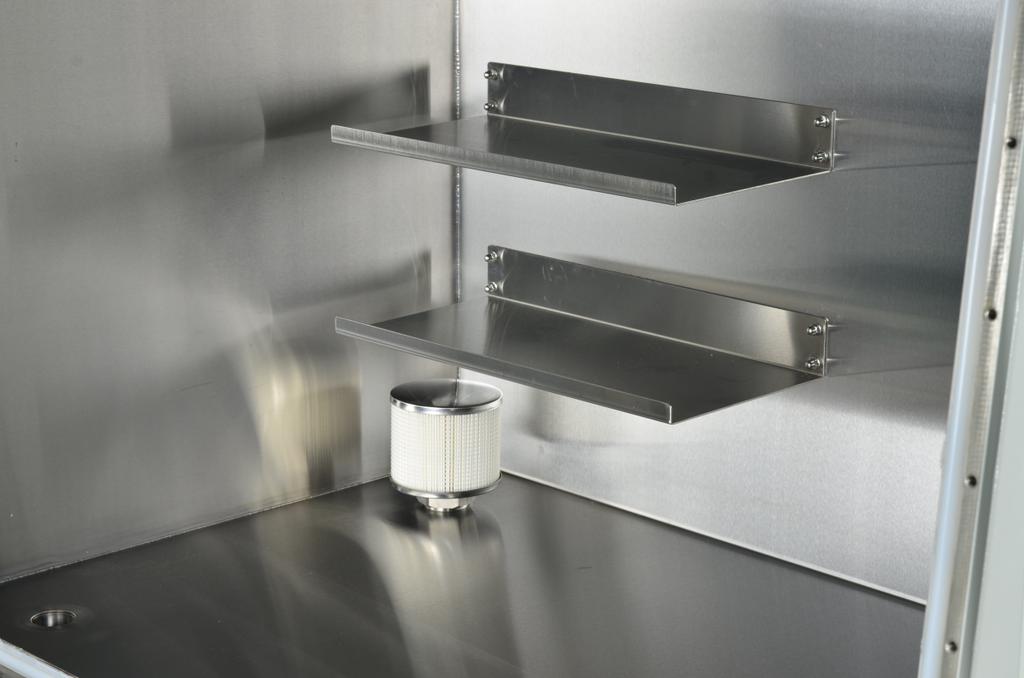

Tray	Standard Layout					Two layers in box.

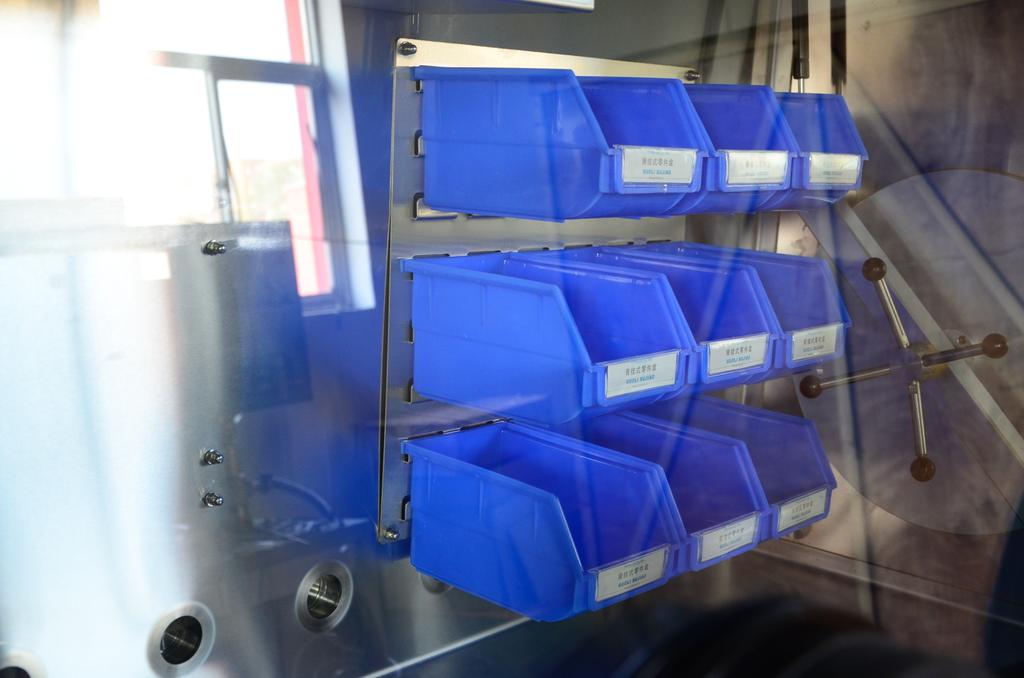

	Option/Add: tool boxes or other					Various tool boxes, can be placed according to user needs.
Front window	Tilt design operating window, removable safety toughened glass front window, 8mm thickness，Wear resistance, corrosion resistance, good light transmission, sealing ring using 3/8 inch thick OMEGA sealing ring.

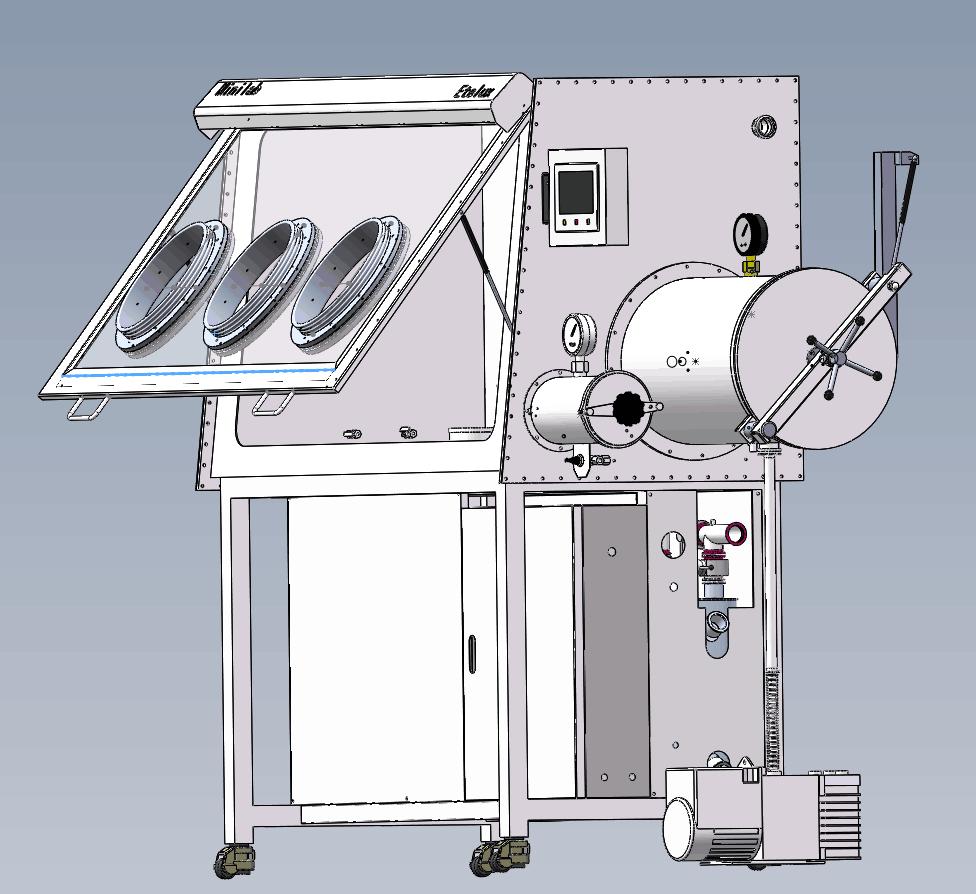

	Option: Window Open		The front window can be designed to open instead of fix, in order to put in a variety of instruments (custom function).
Environment of Box inside	H2O <1 ppm (20°C/68 ℉, 1 atm)  O2 <1 ppm (20°C/68 ℉, 1 atm)

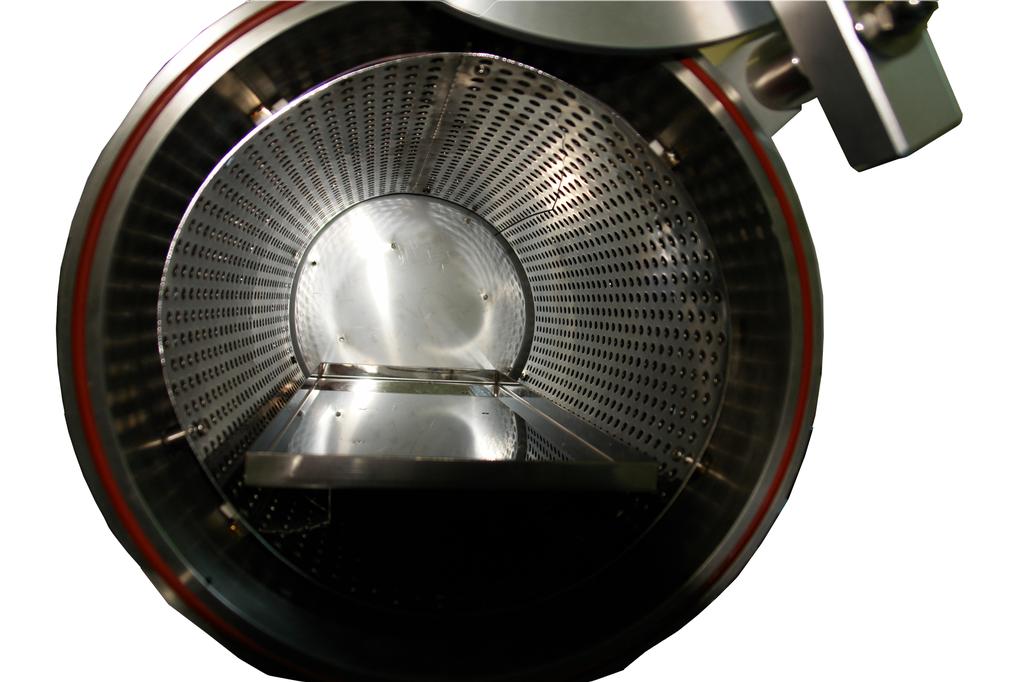

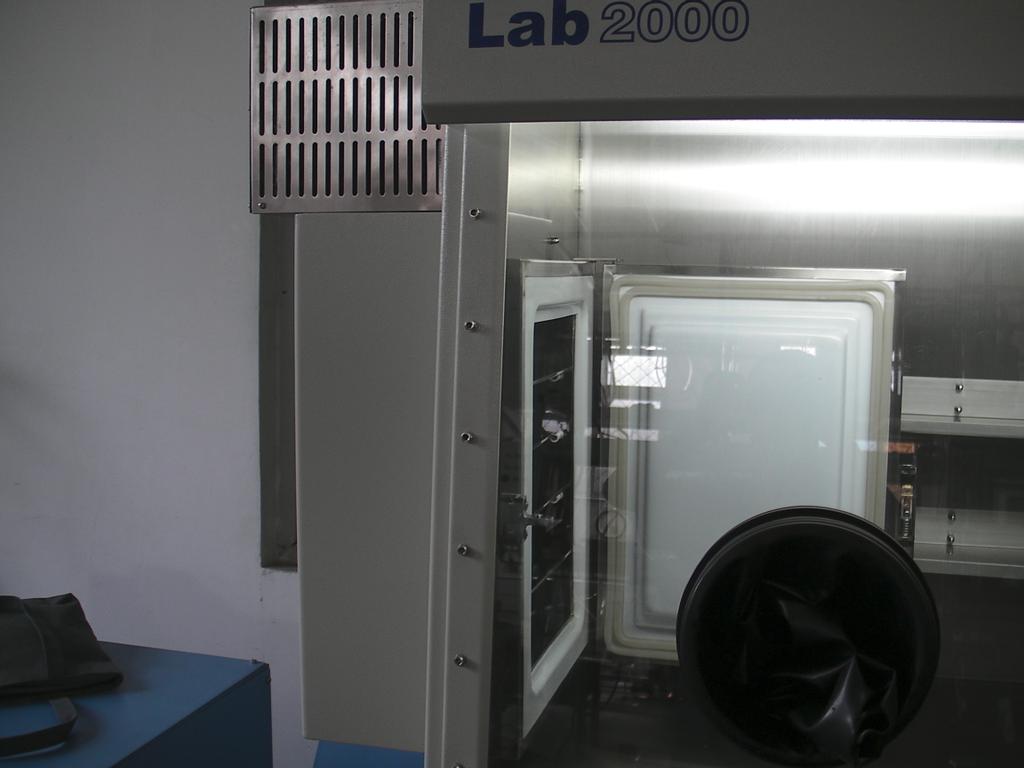

Antechamber	Control way: manual  Design： two circular antechambers  Main chamber size: Φ360mm (Dia.)x 600mm(length)（location: right-side of box）  14.17 "(Dia.) x 23.62" (L)  Mini chamber size: Φ150 mm(Dia.) x 300mm(L)(location: right-side of box)  5.9 "(Dia.) x11.8" (L)  Vacuum degree:<=－0.1MPa(right side antechambers included main chamber and mini chamber, all of that are need vacuum and display. The vacuum pressure gauge brand is German WIKA。

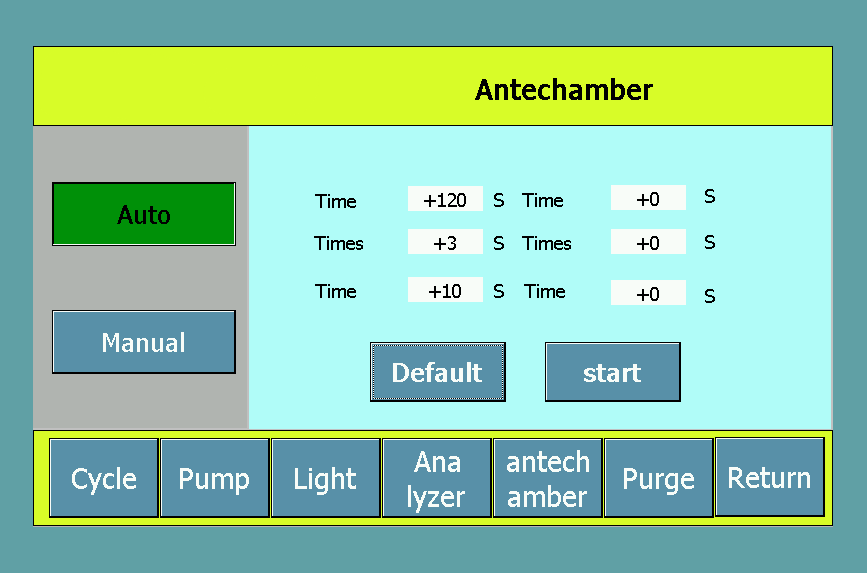

	Option/add auto control way				It will automatically control the antechamber by time setting and the number of times for gas exhaust and filling.
	Option/Add: heating mode				Max temperature:200℃/ 392℉  Control accuracy：±2℃/±3.6℉  The main chamber and mini chamber are both can adding the heating function (compared with standard antechamber the size is a little different)
Working gas and regeneration gas	Working gas: 99.999% high pure N2, Ar, He and other inert gas  Control gas:99.999% high pure inert gas  Regeneration gas: mixing gas of working gas and H2，hydrogen（H2）Volume accounted for 5-10%  If the pure system only has moisture removal function, the regeneration gas is the same with working gas
Gas purification system	Single pure column:  German BASF Oxygen removal material, US UOP high moisture absorb material. The regeneration process of purification system is auto control and automatic moisture and oxygen removal function.  Gas purity can be sustained and keep long-term:H2O<1ppm, O2<1ppm。
	Option: dual columns purification system  (one in use and the other is reserve)	Why choose duel pure column? 1、The Pure column need to be regenerated after saturated by absorbing the oxygen and moisture. The regeneration time is 16hours. If there is no reserved column, it may stop working. (we recommend dual column purification system to factory or other unit which need glove box working Continuously）; 2、The pure capacity of dual pure columns is two times as much as single column
Pressure control system	Box pressure can be auto controlled by PLC touch screen  Control accuracy:±1Pa  Can also be manually controlled by foot switch
Filter system	The ends of inlet and outlet both are provided with filter  The filter precision is: 0.3 mu m
Closed circulating fan	High speed frequency conversion fan, flow 0-100m3/h, microprocessor control, Stainless steel device for pressure testing.  With water cooling device (can equipped with water cooler and external refrigeration equipment)

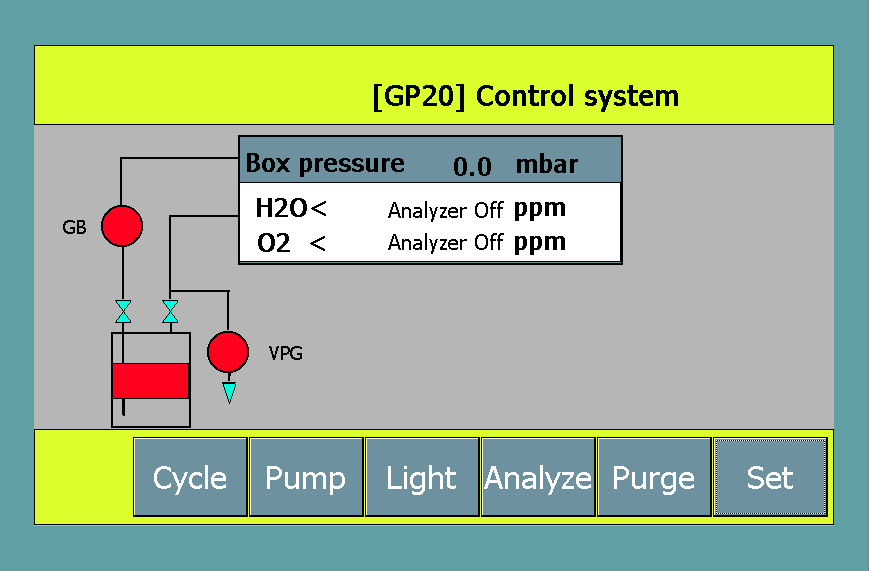

Control system	SIEMENS colors touch screen (6 inches), PLC control system, Bilingual in Chinese and English can be switched  Pressure sensor: -2500～2500Pa touch screen, accuracy±1Pa  Pressure control: control the box pressure to one setting point (scope can be set)
measurements	Moisture analyzer: US GE brand, 0～1000ppm touch screen display, precision 0.1ppm

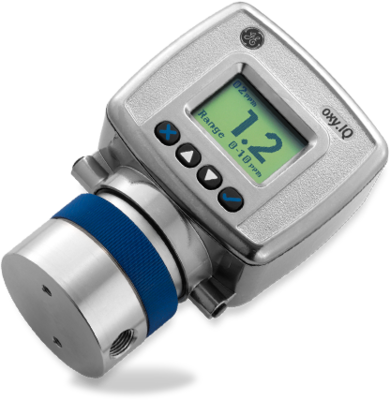

	Oxygen analyzer: US GE brand, 0～1000ppm touch screen display, precision 0.1ppm
Vacuum Pump	Britain Brand EDWARDS, pumping speed 8.4-12m3/h, Model: RV12  Extreme pressure 2 x 10-3 mbar/1.5 x 10-3 Torr  Inlet flange NW25 Outlet flange NW25 Noise level: 50 Hz 时 48 dBA

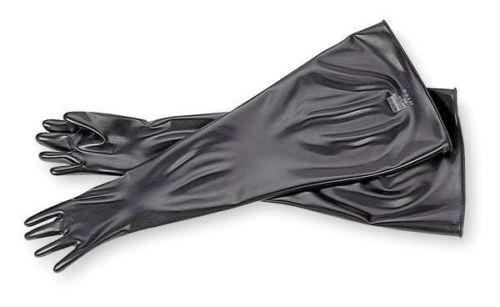

Glove	Brand: US NORTH  Material: Butyl  Model for standard：8B1532
illumination system	Equipped with Fluorescent lamp. Brand: PHILIPS
Solvent removal system	Efficient adsorption of activated carbon, can effectively remove trace organic solvents;

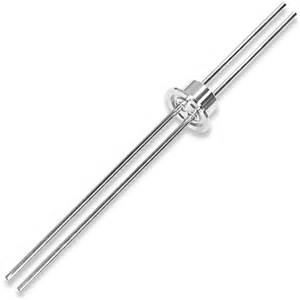

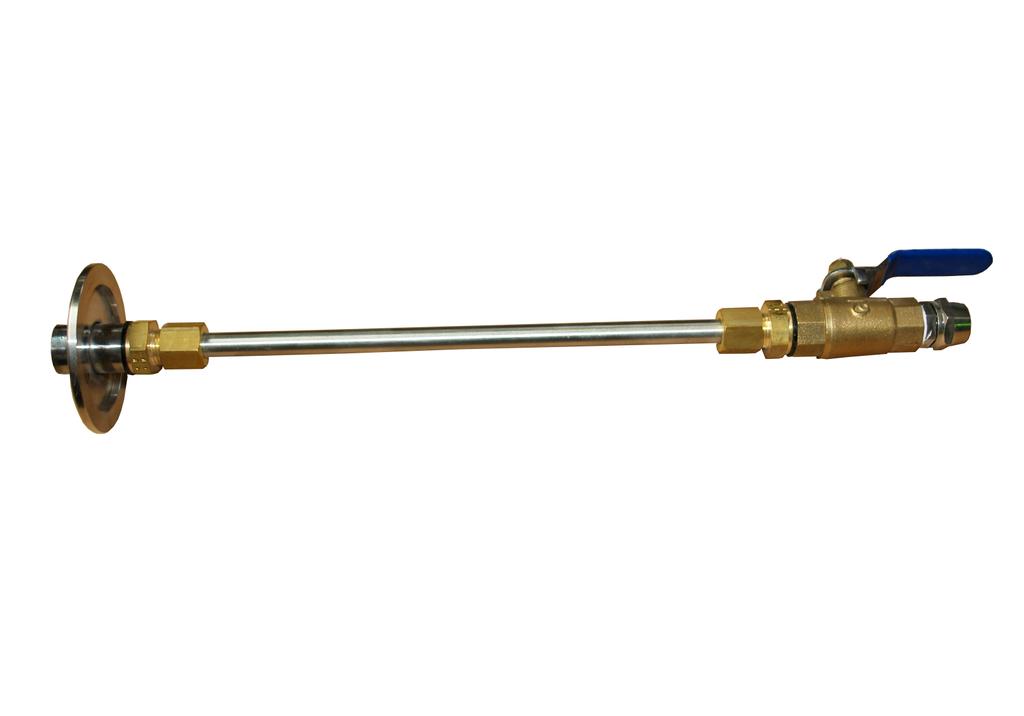

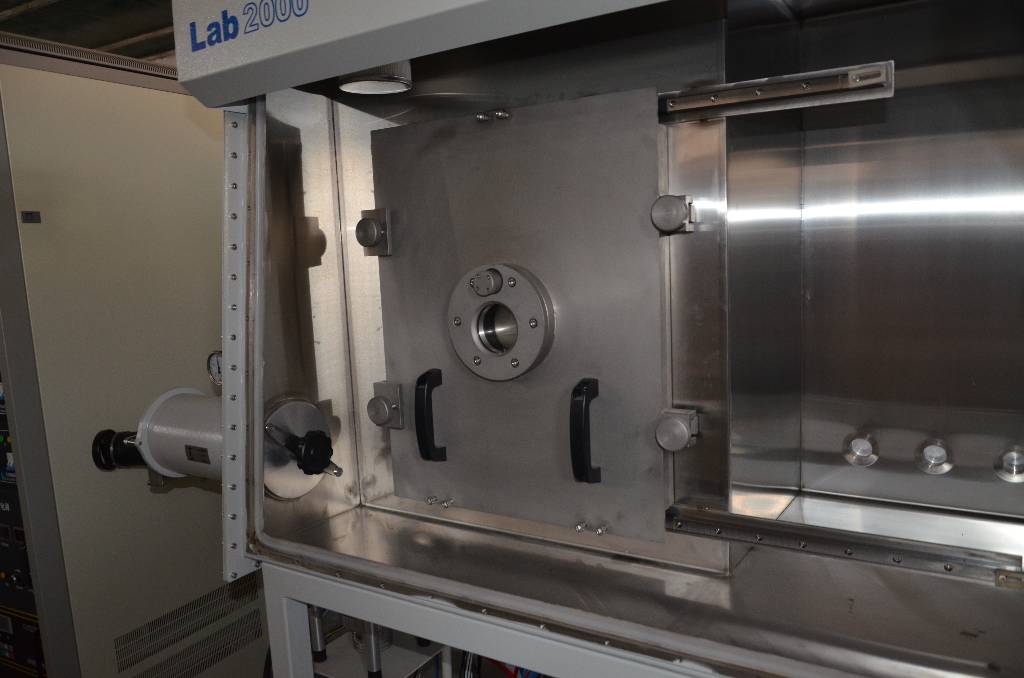

Spare KF40 standard joint	Special design to KF40 Joint, you can lead the water into the box

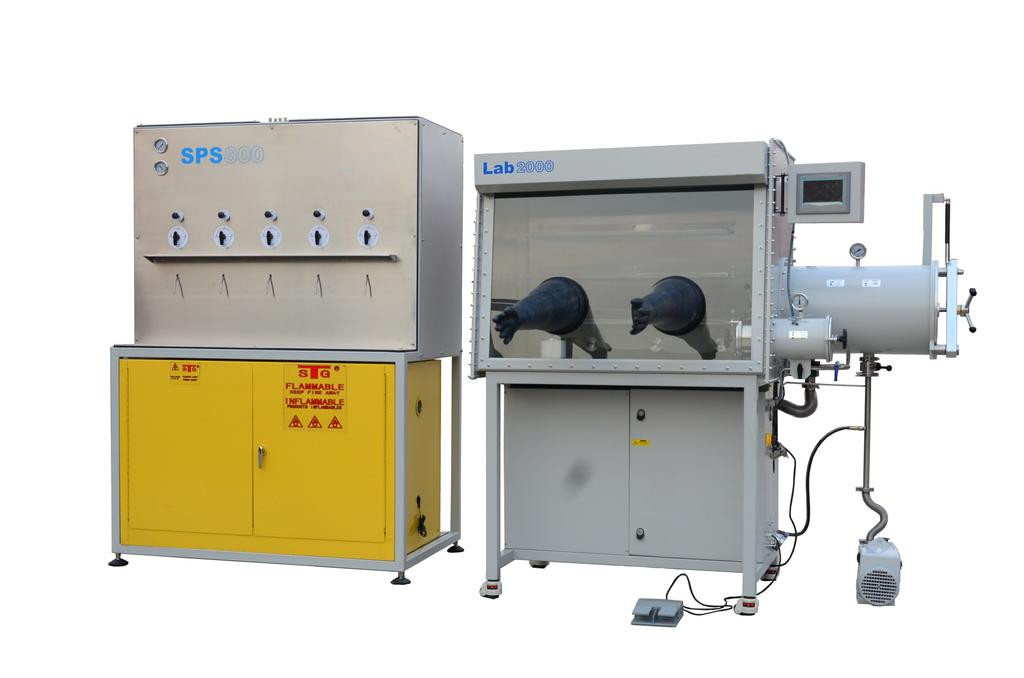

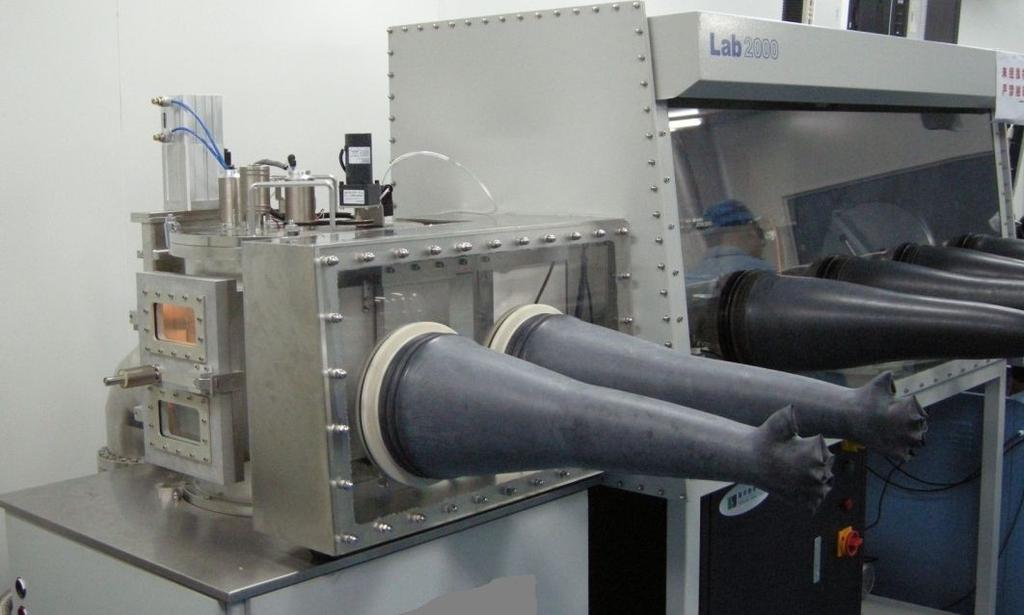

Can be connected to other devices          (low temperature refrigerator, film coating machine, microscope, solvent purification system, low temperature cold trap, heating furnace, etc.)	low temperature refrigerator

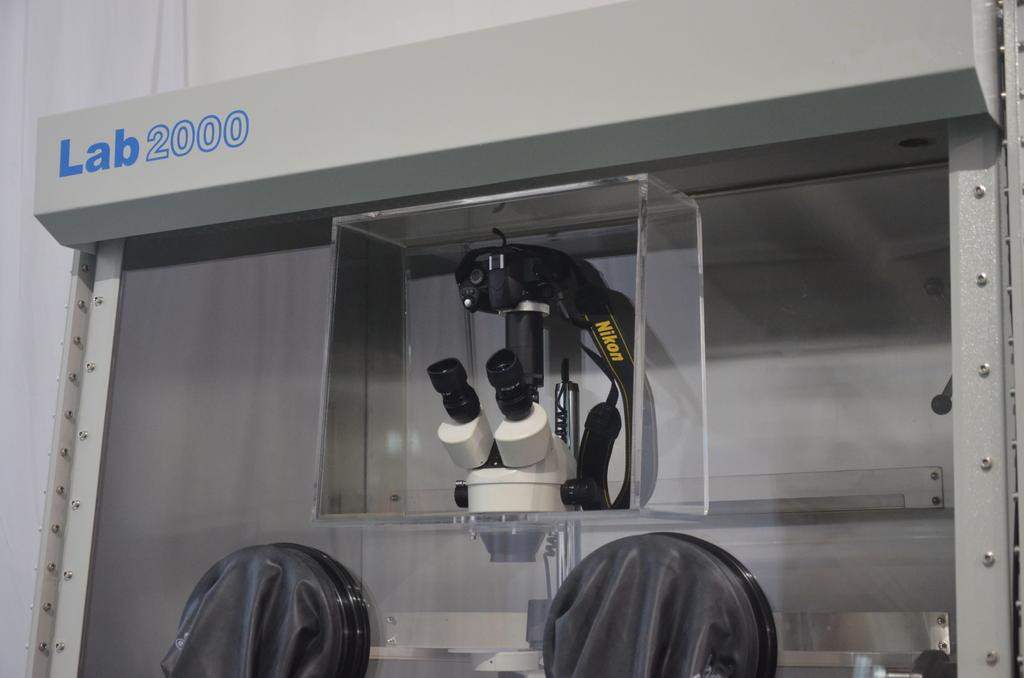

	microscope
	Solvent Purification System
	Coating machine			Inside connection(one door of Coating machine is inside of glove box)    Outside connection
Equipment size and room requirements	Overall size			2450mm(L) x 1000mm(W) x 1950mm(H)  96.46" x39.37" x 76.77"
	Room size			2200mm(L) x 1500mm(W) x 2000mm(H)  110.24" x59" x 78.74"
Wooden Package size and weight	2785mm(L) x 1145mm(W) x 2300mm(H)  109.65" x 45" x 91" (7.5M3)
	820 kg (1766 lbs)
Notice	When the gas is circulating, must ensure that the piping of the circulation system is clear and cannot be blocked (if the color of the filter is changed from white to black, the filter should be replaced timely).  No corrosive gas in the glove box.  It needs to regenerate the column when the moisture and oxygen indicators cannot meet the work requirements.            If the corrosive gas is released from inside of glove box.(such as LiPF6 electrolyte),please do not use. you must put the bottle filled with liquid seal.  Vacuum pump needs to be checked the oil level and maintain in regular time.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
