Item No.:
TMAX-TTS003Payment:
L/C, T/T, Western Union, Credit Cards, PaypalProduct origin:
ChinaShipping port:
Xiamen PortLead Time:
5 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
Two years limited warranty with lifetime technical support
Introduction

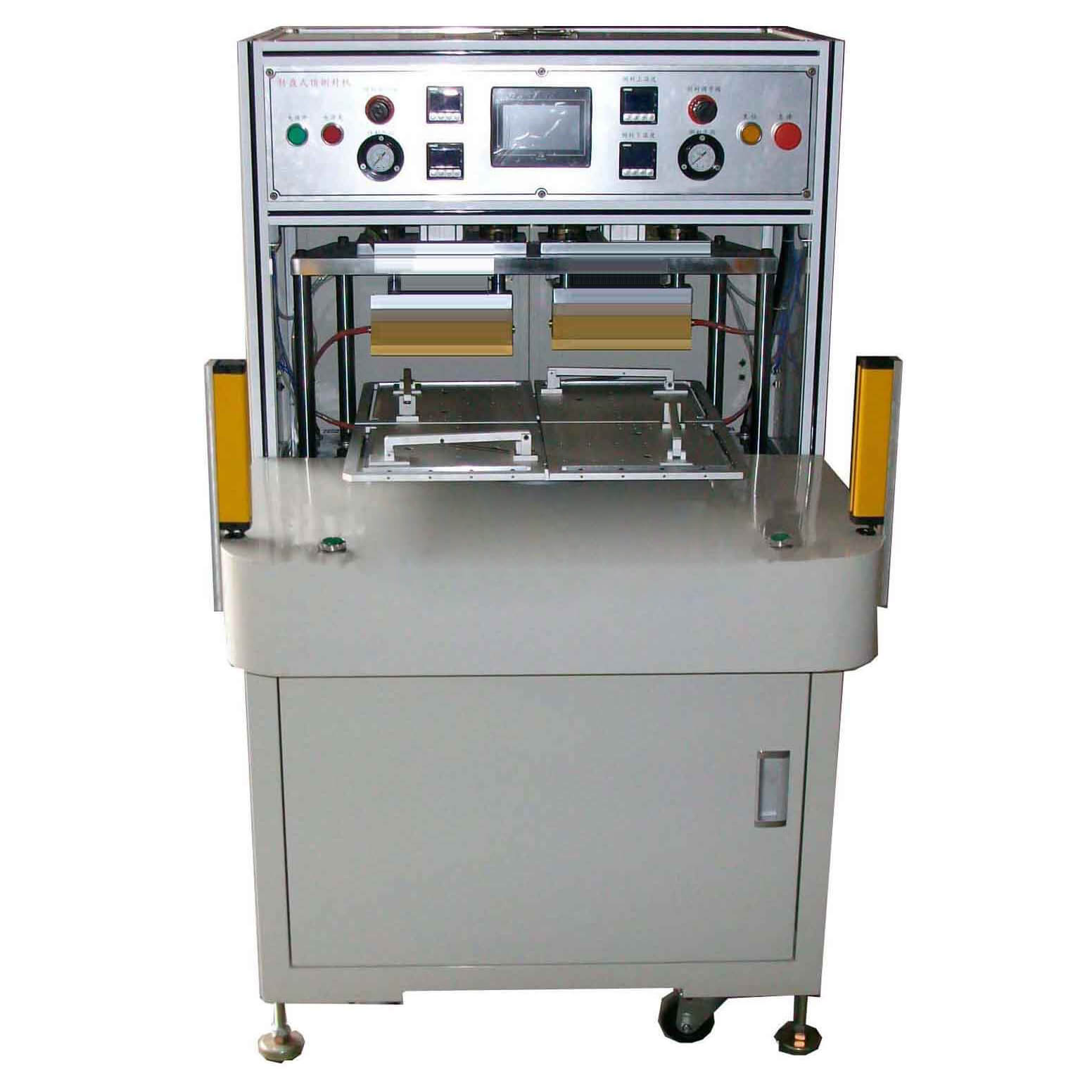

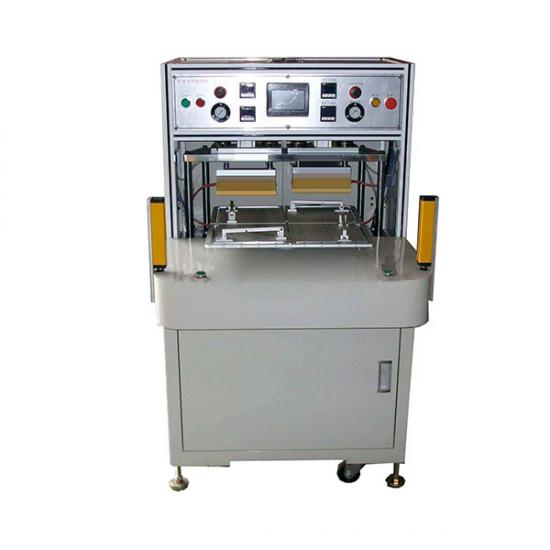

1.Suitable for soft packing lithium core top-side heating vacuum sealing
2.The 4 stations turntable structure, cam positioning, precision bias error is less than ± 30
3.To configure a single head pressure regulator
4.Import PLC, touch screen control display, imported thermostat, error of ± 2 °C
5.Fixture locating detection, double-side heating, temperature alarm, screen protection
6.Using the programmable controller PLC practical automatic control, touch screen to realize man-machine dialogue, convenient operation
Technical Parameters
Main technical
parameters
TMAX-TTS001
TMAX-TTS002
TMAX-TTS003
Size(L*W*H)
870*870*1500mm
970*970*1500mm
1100*1100*1500mm
Weight
500kg
800kg
1000kg
Max sealing size
top:200mm side:200mm
top:240mm side:240mm
top:240mm side:240mm
Sealing head length
210mm
250mm
330mm
Sealing stamp width
2-10mm
2-10mm
2-10mm
Production capacity
200-600pcs/H
100-250pcs/H
100-200pcs/H
Temperature error
± 2 °C
± 2 °C
± 2 °C
Source voltage
AC 220V
AC 220V
AC 220V
power
3.5KW
3.5KW
3.5KW
Air supply
0.6-0.7Mpa 10L/S
0.6-0.7Mpa 10L/S
0.6-0.7Mpa 10L/S
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
