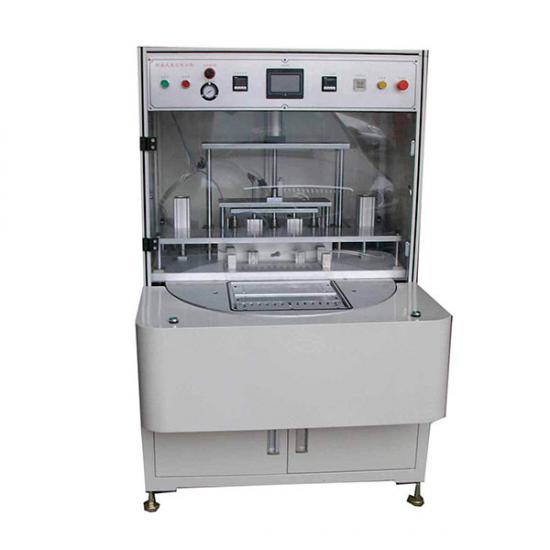

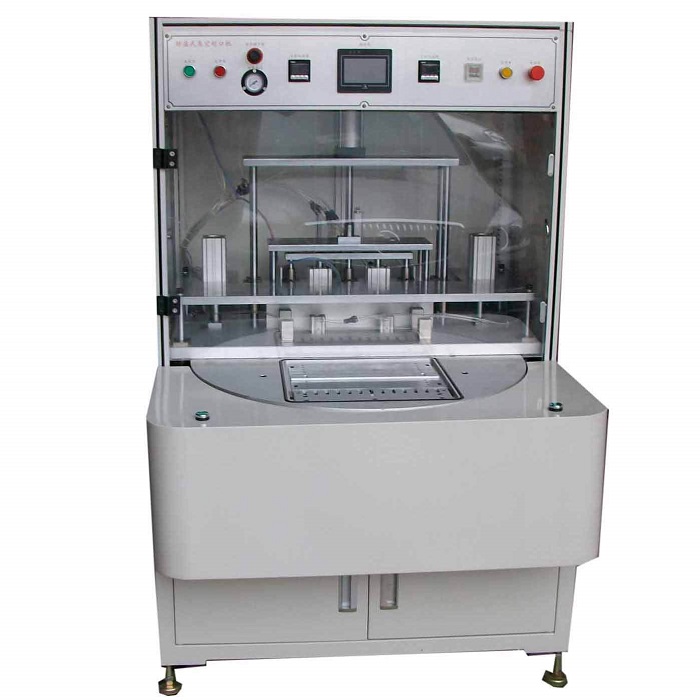

4 Stations Turntable Structure Vacuum Sealing Machine For Pouch Battery Top-Side Heating Sealing

Sales Manager:David

Email:David@tmaxcn.com

Wechat:18659217588

Product Details

Introduction

1.Suitable for soft packing lithium core top-side heating vacuum sealing

2.The 4 stations turntable structure, cam positioning, precision bias error is less than ± 30

3.To configure a single head pressure regulator

4.Import PLC, touch screen control display, imported thermostat, error of ± 2 °C

5.Fixture locating detection, double-side heating, temperature alarm, screen protection

6.Using the programmable controller PLC practical automatic control, touch screen to realize man-machine dialogue, convenient operation
More info about vacuum sealer you can visit our site directly.

Technical Parameters

Main technical parameters	TMAX-TS001	TMAX-TS002	TMAX-TS003
Applicable battery size(LWH)	≤1801208mm	≤25021010mm	≤32021010mm
Sealing head length	200mm	280mm	330mm
Sealing stamp width	2-5mm	2-10mm	2-10mm
Parallelism of the sealing head	±0.01mm	±0.01mm	±0.01mm
Production capacity	200-600pcs/H	150-500pcs/H	100-450pcs/H
Source voltage	AC 220V	AC 220V	AC 220V
power	1.2KW	1.8KW	1.8KW
Size(LWH)	6406401450mm	9008001600mm	90010001600mm
Weight	300kg	450kg	550kg
Air supply	0.6-0.7Mpa 10L/S	0.6-0.7Mpa 10L/S	0.6-0.7Mpa 10L/S
Vacuum supply	-0.095Mpa 20L/S	-0.095Mpa 20L/S	-0.095Mpa 20L/S

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
