Laser Welding Machine for Prismatic Battery Welding

Sales Manager:David

Wechat:18659217588

Item No.:
TMAX-YK-HJ-2103
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Product origin:
China
Shipping port:
Xiamen Port
Lead Time:
5 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

Laser Welding Machine for Prismatic Battery Welding

1、Equipment Overview

This equipment is used for sealing welding and liquid injection hole welding of prismatic battery top cover. It is a semi-automatic equipment. The top cover of the incoming material has been manually buckled into the aluminum shell. Taking the sealing surface of the battery as the upper benchmark, it is positioned from the top of the bottom plate of the cell. After laser welding, it is manually inspected and judged. This equipment can quickly change the fixture and is suitable for welding of various models of products.

2、Basic Parameters

1. Equipment composition (number of single set)

SN	Item	Qty	Remark
1.	Welding laser	1set
2.	Welded joint	1set
3.	cooler	1set
4.	Motion module	1set
5.	servo motor	1set
6.	Frame + plate + shield	1set
7.	Observation CCD+Display	1set
8.	Industrial dust collector	1set
9.	Motion control of welding platform	1set
10.	Welding control software	1set
11.	Laser waveform control card	1set
12.	IPC	1set
13.	Fixture	1set

2. Configure power supply

3 phase 380V；Voltage fluctuation is less than ±10%；power：8KVA；

3. Compressed air

0.6~0.8MPa

4. Environmental requirements

ambient temperature 20～40℃；relative humidity 5～55％HR；

3、Incoming parameters

Item

Specification

Remark

Battery size

L 166mm，

T 22mm，

H 234mm

Customize according to customer’s size

4、Process performance

1. Hardware accuracy

SN	Item	Specification	Remark
1.	Effective working range of workbench	L 300mm×W 300mm×H 200mm
2.	Repeated positioning accuracy of laser welding joint	≤±0.02mm
3.	Qualified rate	98.5%
4.	efficiency	50-70mm/s
5.	Tooling fixture can be replaced
6.	Welding method	Vertical welding and side welding (corresponding fixture is required)
7.	Laser welding machine power	1000W
8.	Focal length adjustment accuracy of welding joint	0.02mm
9.	Welding parameter memory function, switching products that have been done without programming again
10.	Equipped with dust and smoke removal function
11.	Equipped with safety door and safety grating to ensure safe work
12.	Noise	≤75db
13.	failure rate	Failure rate = (failure shutdown duration / equipment service duration) ＜ 2%

2. Product accuracy

SN	Item	Standard
1.	Welding flanging width	＜0.3mm
2.	Weld penetration and width	Penetration 0.5~1.4mm，Melt width: 0.8~1.5mm，
3.	Weld pressure resistance (tensile strength)	Withstand voltage＞1.1Mpa
4.	Appearance and welding quality	After welding, the weld shall be free of defects such as pits, broken welds, misalignment, and explosion points, and the weld shall be smooth and flat, which will not cause serious deformation of the shell. There is no welding slag in the shell after welding, and the laser does not burn the diaphragm and high-temperature tape inside the shell

5、Configuration of main components

Equipment composition:

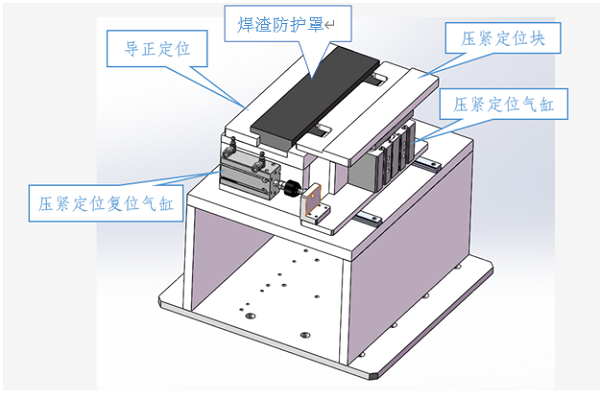

1. Top cover welding battery clamp part

SN	Description	Remark
1.	Manual feeding, taking the sealing surface of the electric core as the benchmark, lift up from the bottom of the electric core to ensure the consistency of the upper benchmark; The long side cylinder is locked, the short side cylinder is locked, the upper reference cylinder is unlocked, and the lower end of the fixture adopts a spring positioning mechanism. The spring is elastically deformed to ensure that the cell shell is not scratched during precise positioning;
2.	Pre weld the cover plate and shell first, and then fully weld after fixing the position.
3.	The clamping part is not in overall contact with the cell, and the middle is hollowed out to prevent excessive extrusion pressure on the cell; Manual blanking: when the battery moves to blanking, the battery cylinder unlocks, the battery cell pops up, and the material is taken manually. The short side is clamped by a rotating cylinder, and the electric core is placed and taken from the side, which is convenient to operate.

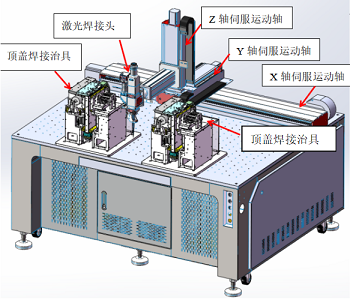

2.Three axis welding platform

SN	Description	Remark
1.	The laser output head is driven by a three-axis high-precision mechanical module to ensure the accuracy of the hardware; Using high-precision algorithm and controller, accurate laser excitation power and path; Press the assembly mechanism up before welding, and then fully weld the top cover to ensure the product qualification rate; The exhaust pipe and filter shall be made of fire-retardant materials, and the connecting parts shall be connected with steel rings.

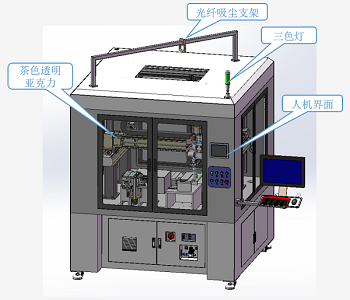

3.Frame cover and man-machine interface

SN	Description	Remark
	The upper cover of the equipment is composed of sheet metal and Tan acrylic panels, and safety gratings are installed to ensure the safety of operators. The human-machine interface of the equipment is designed according to the existing structure of the company, and the welding parameters are visual and traceable.

4.Three view part of equipment

5、Equipment capacity requirements

SN	Item	Index	Remark
1.	Time efficiency = Actual operation time: load time - planned downtime (failure, material switching) Load time: production hours - planned downtime Production hours: normal working hours Planned downtime: morning and evening, rest, spot check, cleaning, etc	≥99.00%
2.	Performance improvement= Theoretical tempo: theoretical production time of a single product	100%
3.	Product qualification rate= Fixed loss: tape splicing, coil changing, etc	≥99.50%
4.	CMK Equipment capacity index CMK index only considers short-term dispersion and emphasizes the influence of equipment factors on product quality. Test requirements: the extracted data is continuous; It is assumed that the operator, measuring tools and raw materials are not affected; Only consider the influence of a single factor of the equipment. (that is, the operator must be skilled and competent; the measuring tools must meet the requirements and have been calibrated; the same batch of materials; and the inspectors meet the requirements.) Generally, 10 groups of 100 samples are sampled for measurement within about one hour after the production of the machine is stable.	≥1.67
5.	Equipment operation plan	300 day/year,2 shifts,（11.5）H/ shift
6.	Equipment life	10 Years
7.	Operator
8.	Equipment noise	≤75dB

6、Brand of components and spare parts

SN	Name	Brand	Remark
1	Welding laser	TMAX
2	Welding head	TMAX
3	cooling-water machine	Dongluyang
4	Motion module	Shangyin
5	servo motor	Panasonic
6	Frame + plate + shield	customized
7	Observe the CCD+ display	customized
8	Dust collector	foxconn
9	Motion control of welding platform	customized
10	Welding control software
11	Laser waveform control card	customized
12	IPC	Advantech / Lenovo
13	Fixture	customized
