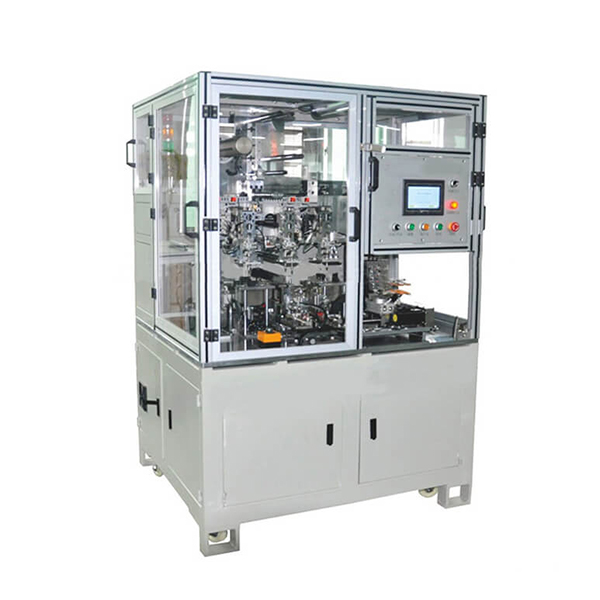

High-accuracy Automatic Stacking Machine For Prismatic Cell Manufacturing

TMAX-YS-BZP180 is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.
Advanced Features:

·        PLC Touch Screen Control allows easy condition setting

·        Continuous "Z" fashion stacking with a separator

·        Auto electrode pick-up & stacking via vacuum suction manipulator

·        Adjustable mechanical fixture for accurate electrodes positioning

·        Unreeling rotors for separator film feeding

·        Auto-tension control for separator film delivery

SPECIFICATIONS

Working Voltage	AC220V 50/60Hz
Power	2.5KW
Stackable Size	180x80mm
Stackable Layers	Upto 500 layers
Max. Electrode Thickness	Piled up thickness < 25mm
Aligning Accuracy	±0.3mm for stacked electrodes
Acceptable Separator Roll Size	1.          I.D>3'' (76mm) 2.          O.D<9.8'' (250mm)
Stacking Fixture	1.          One set of 180 x 80mm stacking die fixture is included for immediate use. 2.          If you need different size electrode stacking, please inform us before order.  We will make for your at extra cost. Allowable customization size: Max.  200mm x 200mm; Min.  40 mm x 25 mm 3.          Chang fixture requires professional training
Vacuum Pump	An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.
Suggested Air Pressure	0.7 MPa (Air compressor is not included in the standard package.)
Product Dimensions	L1100mm x W1100mm  x H1800mm
Weight	500Kg
Compliance	CE Certified
Warranty	One year limited warranty with lifetime support
Application Notes	Note: please confirm electrode sheet size before order ( each mold only fit with one zie electrode )

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
