Item No.:
TMAX-S65Payment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:
Two years limited warranty with lifetime technical support

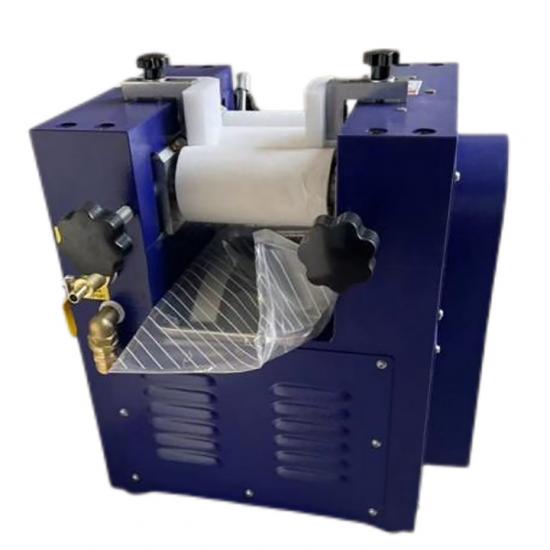

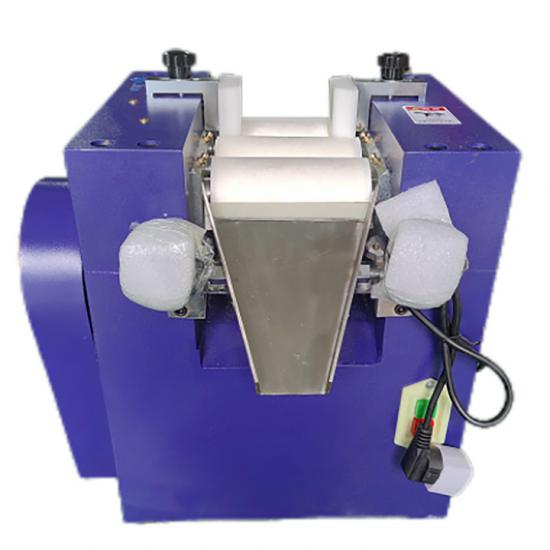

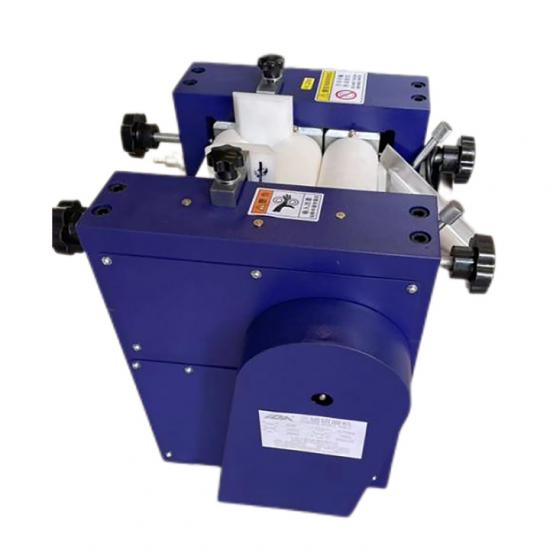

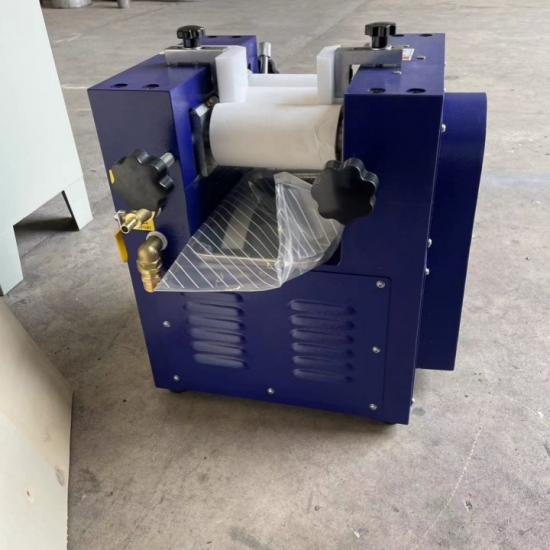

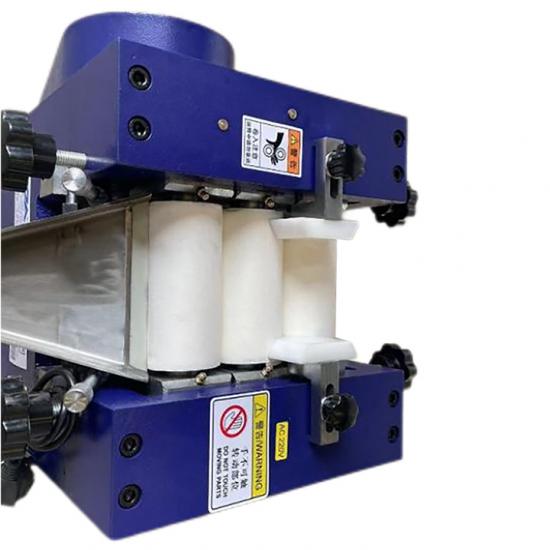

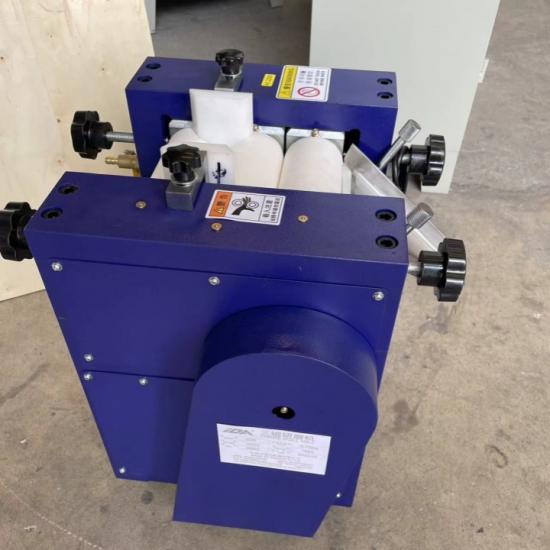

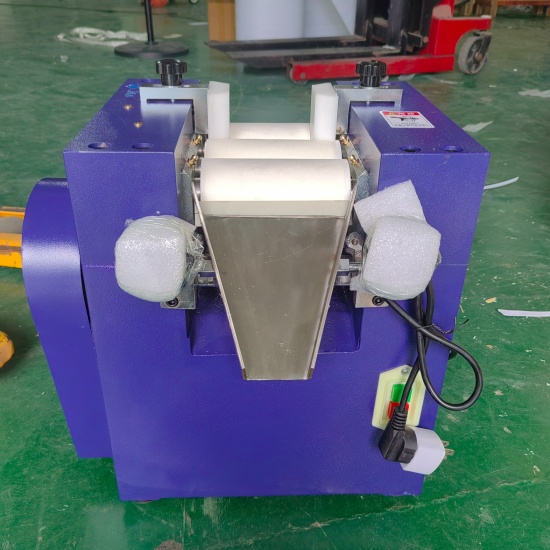

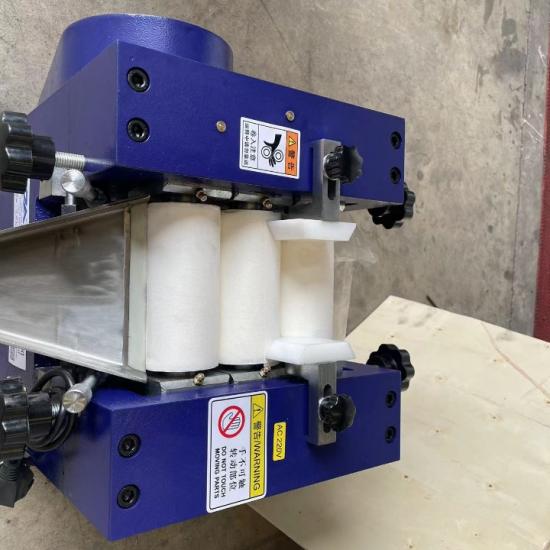

S65 laboratory three roller grinding machine is mainly used for grinding and dispersing laboratory of all kinds of paint, ink, pigments, plastics and other slurry, especially high viscosity and particle size requirements of fine products.
The grinding effect is achieved by rubbing the surfaces of three horizontal rollers against each other at different speeds.
The roller of the machine is made of alloy steel, so the crystal phase is close, the strength is high, the surface has high hardness and wear resistance, and there is a cooling device to ensure continuous work.
|
Device name |
Three-roll grinding machine (ceramic roller) |
|
Model number |
S-65 |
|
Roller diameter (mm) |
65 |
|
Working length of roller(mm) |
125 |
|
Material of roller |
Zirconia ceramic roller |
|
Blade material |
Hard plastic |
|
Baffle material |
Polytetrafluoroethylene |
|
Frame material |
Stainless steel 304 |
|
Speed fast/medium/slow(r.p) |
145/70/26 |
|
Power (kw) |
0.75-220V mains power |
|
Overall dimensions (mm) |
450 * 400 * 440 |
|
Weight (KG) |
Net weight 82KG |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
