Lab X Fluorescence Special Steel Ring Mold

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-XFM
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
15 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
One year limited warranty with lifetime technical support

Product Details

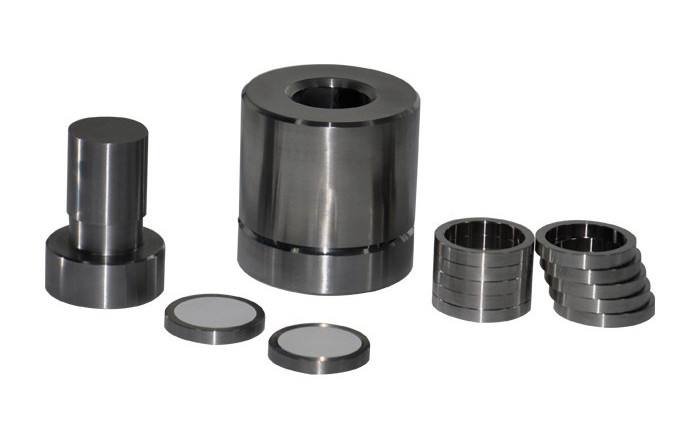

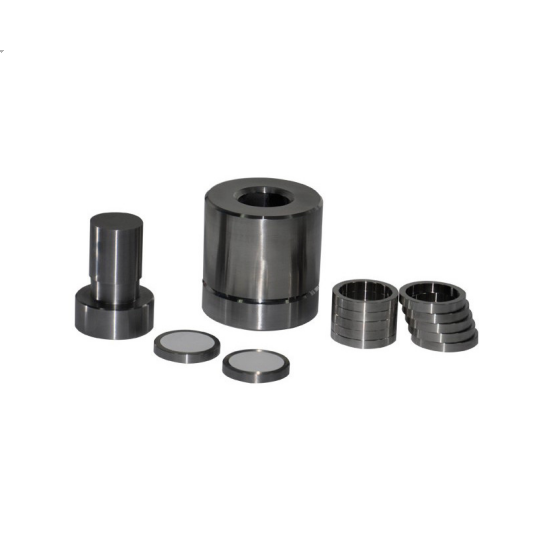

Lab X Fluorescence Special Steel Ring Mold

The special fluorescent steel ring mold is used for the molding of X-ray fluorescence spectrometer samples. The stainless steel ring is used as the support ring of the sample. The tablet pressing speed is fast and the molding effect is good. There are two common steel ring mold specifications on the market. The most common size is: Ф40-Ф32mm, that is, the outer diameter of the steel ring is Ф40mm, the inner diameter of the steel ring is Ф32mm, and the sample size is Ф32mm. The second is: Ф32-Ф24mm, that is, the outer diameter of the steel ring is Ф32mm, the inner diameter of the steel ring is Ф24mm, and the sample size is Ф24mm. The sheet thickness is 5-8mm high. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.

Specifications

Name	X fluorescence special steel ring mold
Actual drawing of molding sample
Actual drawing of molding sample
Compressible sample shape	Cylindrical
Common mold specifications	Ф outer 32-Ф inner 24mm or Ф outer 40-Ф inner 32mm
Mold material	Alloy tool steel: Cr12MoV
Hardness of die indenter	HRC60-HRC62
Mold cavity depth	45mm
Mould dimensions	Ф73×133mm
Mould weight	3.2kg
Calculation formula of die pressure	Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
Mould remarks	Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
