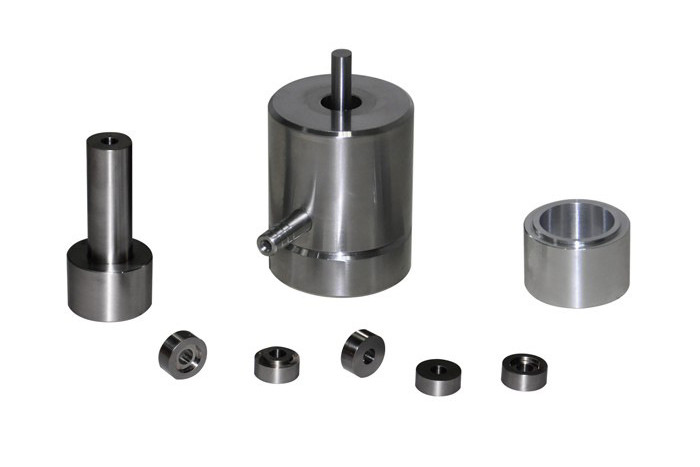

Lab Ring Mold Hole Mold


This series laboratory-use ring molds are mostly used in the catalytic industry or for the molding of samples that require holes. Square and porous samples can be customized. Commonly used sizes: diameter Ф3-20mm, height 1-20mm, common mold specifications :Outer circle and inner hole diameter, outer Ф7-inner Ф3mm, outer Ф10-inner Ф5mm, Ф12-inner Ф6mm, outer Ф20-inner Ф10mm, etc. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.



Specifications

Name

Ring mold/Hole mold

Actual drawing of molding sample

ring mold

Compressible sample shape

Round hole shape, square hole shape or semi-arc hole shape, etc.

Common mold specifications

Outer diameter and aperture: Ф7-Ф3mm, Ф10-Ф5mm, Ф12-Ф6mm, Ф20-Ф10mm, etc.

Mold material

Alloy tool steel:Cr12MoV(Can be customized hard alloy steel)

Hardness of die indenter

HRC60-HRC62

Mold cavity depth

40mm

Mould dimensions

Φ53*120mm

Mould weight

1.4kg

Calculation formula of die pressure

Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!

Mould remarks

Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

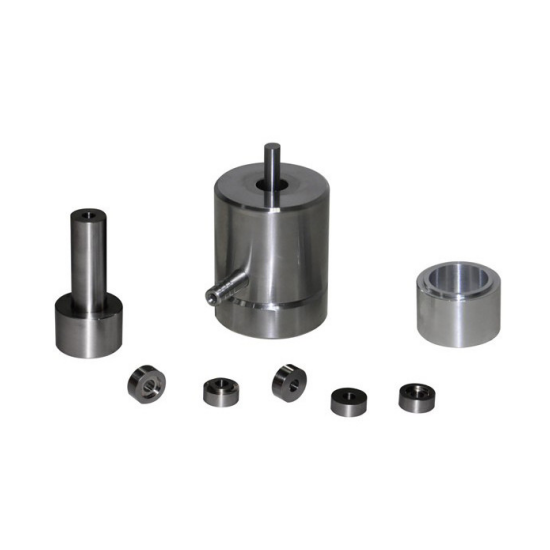

Product Images


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
