Lab Micro Vertical Type Small Scale Planetary Ball Mill Optional Vacuum Ball Mill Tank

A. Product presentation

Planetary mill is an indispensable equipment for high-tech material mixing, fine grinding, sample preparation, nanomaterial dispersion, new product development and small batch production. The product is small in size, full in function and high in efficiency. It is the ideal equipment for scientific research institutions, universities, and enterprise laboratories to obtain particle research samples (each experiment can obtain four samples at the same time), grinding samples under vacuum.

Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, beauty, environmental protection and other departments, such as: electronic ceramics, structural ceramics, magnetic materials, lithium cobaltate, lithium manganate, catalysts, phosphors, long persistence luminescent powder, rare earth polishing powder, electronic glass powder, fuel cells, ceramic capacitors, zinc oxide varistors, piezoelectric ceramics, nanomaterials, wafer ceramic capacitors, MLCC, Thermistor (PTC, NTC), ZnO varistors, arrester valves, Strontium titanate ring varistor, ceramic filter, dielectric ceramics, piezoelectric transducers, piezoelectric transformers, chip resistors, thick film circuits, coke potentiometers, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, nickel zinc ferrite, manganese zinc ferrite and other industry products.

The planetary crusher is designed to crush, grind and disperse metal, non-metal, organic, and other powders. Especially suitable for laboratory research. Strong shear, impact and rolling can achieve the purpose of crushing, grinding, dispersing and emulsifying materials. The planetary ball mill is equipped with four ball mill tanks on the same turntable. When the turntable rotates, the ball mill rotates around the turntable axis, while rotating around its own axis, doing planetary motion. The grinding balls in the tank collide with each other in high-speed motion to grind and mix the sample. The product can be used for dry and wet grinding and mixing products of different particle sizes and materials. The Z-particle size of the grinding product can be as small as 0.1 micron. It can well meet the requirements of various process parameters. At the same time, due to its advantages of small batch, low power consumption and low price, it is the primary choice for schools, scientific research units and enterprises to carry out research on crushing technology, new materials and coatings.



B. Product feature

Equipment through professional appearance design, shell using high-precision mold stamping forming, generous and exquisite, high-end stable, planetary disk using the overall processing molding, the structural components are processed with numerical control processing technology, the transmission gear is selected as high temperature and wear-resistant non-metal and metal combination precision gear, and the nitriding metal heat treatment process ensures that the rotating shaft is wear-resistant to prevent shaft breakage, and ensures that the equipment is stable and quiet when running at high speed. The grinding tank staring device can stare at the grinding tank simultaneously for self-locking and anti-loose, convenient and safe operation, and the shell is color-matched and given New vitality of products, activate the new life of products, in line with international and domestic aesthetic needs, in line with ergonomics.



C. Properties of products

Transmission mode	Gear drive
Working mode	Two or four ball mill tanks working simultaneously
Maximum sample loading	Two-thirds of the volume of the ball mill tank
Ball mill tank volume	Each can is 0.05L-0.1L, the total volume is 0.2L-0.4L
Feed size	Soil material ≤10mm, other materials ≤3mm
Discharge size	The minimum is 0.1μm
Speed ratio (revolution: rotation)	See the main parameters of the planetary ball mill for details
Rotational speed	See the main parameters of the planetary ball mill for details
Speed regulation mode	Brand inverter stepless speed regulation



D. Technical parameters of vertical semicircular planetary ball mill

Model number	PBM-0.2A	PBM-0.4A
Specifications (L)	0.2	0.4
Configurable ball mill tank specifications	10-50ml	50-100ml
Quantity (piece)	4	4
Matching ball mill tank	Available with 10ml vacuum ball mill tank	Available with 50ml vacuum ball mill tank
Standard ball mill tank staring and locking device	Manual operation	Manual operation
Equipment power supply (single phase)	Single-phase 220V to 50HZ	Single-phase 220V to 50HZ
Motor power (kw)	0.09	0.25
Total set time (min)	1-9999	1-9999
Forward and backward running time (min)	1-999	1-999
Adjustable revolution (rpm)	60-580	47-465
Adjustable rotation speed (rpm)	120-1160	94-930
Standard panel (smart, touch screen optional)	Common	Common
Lubrication mode	Lubricating grease	Lubricating grease
Speed regulation mode	Frequency control of motor speed	Frequency control of motor speed
Equipment weight (kg)	18	26
Equipment size L × W × H(mm)	430×250×270	520×300×420
Noise ≤db	50±5	55±5

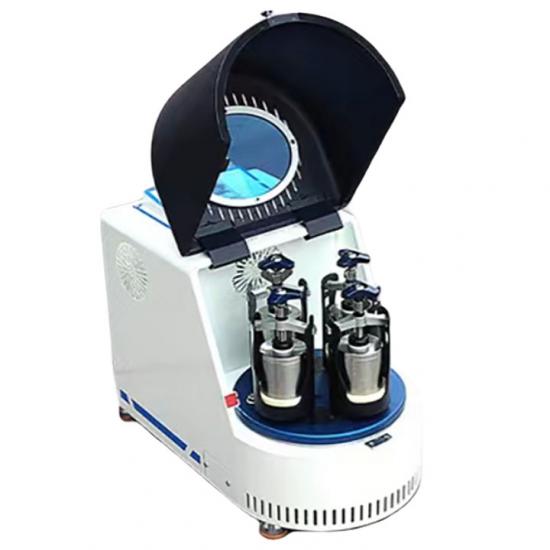

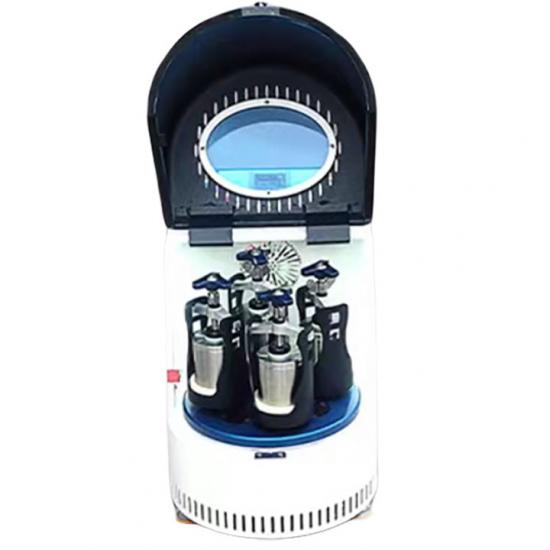

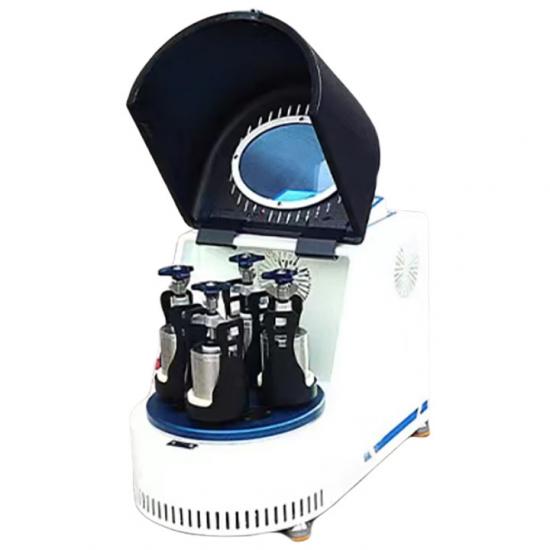

E. Product picture







1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
