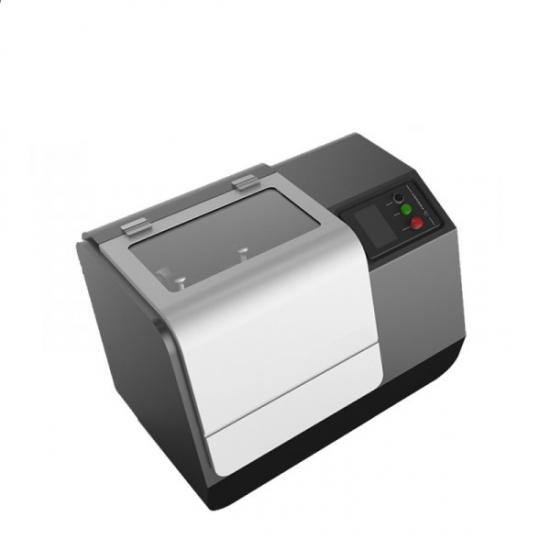

Planetary Ball Mill Machine Material Grinder With Automatic LED Lighting

SPECIFICATIONS

Max. feed size (depends on material):	10mm
Final fineness (depends on material):	<100nm
Min. sample quantity:	10ml
Max. sample quantity:	900ml
Rotational speed (disk):	50-400r/min
Rotational speed (jars):	100-800r/min
Transmission ratio (disk / jars):	1:-2
Transmission standard:	CE
Grinding modes:	16 modes programmable
Grinding tools:	grinding jars and grinding balls
Bi-direction grinding:	yes
Continuously grinding	00:01:00 - 99:59:59
Paused interval:	00:01:00 - 99:59:59
Emergency stop:	yes
Power off memory:	yes
Overload protection	Yes
Milling chamber lighting:	automatic LED lighting, 220V, 18W
Number of milling samples:	4 simultaneously
Materials of the grinding jars:	SS304, SS316, nylon, PTFE, agate, zirconia, alumina, PU, WC
Number of working stations:	4
Ball mill type:	vertical
Compatible grinding jars:	100ml / 250ml / 1500ml
Materials of milling balls:	SS, agate, zirconia, alumina, nylon, PTFE
Grinding ball diameter:	3/5/10/15/20mm
Compatibal ball weight	200-1000g
Grinding process:	dry /wet grinding
Vacuum grinding:	yes
Low temperature grinding:	yes
Grinding in inert gas:	yes
Temperature detection:	yes ( special accessories)
Pressure detection:	yes ( special accessories)
Electrical details:	100-120V/200-240V AC ,50-60Hz, 750W
Plug types:	GB/EU/US/UK standard
Net weight:	92kg
Dimensions (W x D x H):	720*480*500mm
Noise level:	50dB
IP rank:	IP60
Product standard:	CE
Patent:	design patent/ noise improve patent
Accessories:	user manual, warranty card

Material Data for Grinding Jars/Balls

Material	Main component	Density (g/cm3)	Abrasion resistance	Use for material to be ground
Agate	SiO2	2.65	Good	Soft to medium-hard samples
Sintered corundum	Al2O3	3.8	Fairly good	Medium-hard, fibrous samples
Silicon nitride	Si3N4	3.25	Excellent	Abrasive samples, iron-free milling
Zirconium oxide	ZrO2	5.7	Very good	Fibrous, abrasive samples
Stainless steel	Fe –Cr –Ni	7.8	Fairly good	Medium-hard, brittle samples
Tempered steel	Fe –Cr	7.65	Good	Hard, brittle samples
Tungsten carbide	WC	14.95	Very good	Hard, abrasive samples
Polypropylene disposable jar	MC/PA/PTFE/PU/HDPE/PP	**	Good	For homogenisation
