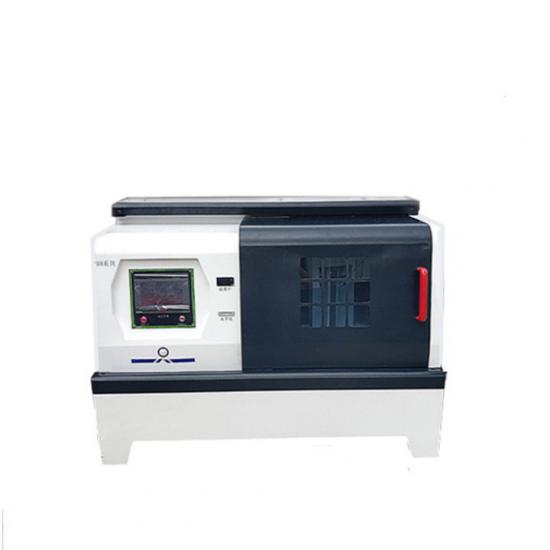

360C Degree Vertical Omni-directional Planetary Ball Mill

Sales Manager: Gia

Wechat: Dingqiuna

Item No.:
TMAX-OPBM
Payment:
L/C, T/T, Western Union, Credit Cards, Paypal
Shipping port:
Xiamen Port
Lead Time:
20 Days
Certificate:
CE, IOS, ROHS, SGS, UL Certificate
Warranty:
Two years limited warranty with lifetime technical support

Product Details

360C Degree Vertical Omni-directional Planetary Ball Mill

On the basis of the vertical planetary mill, the omni-directional planetary ball mill adds the turnover function of the planetary transmission mechanism. While the planetary disc and the materials and grinding balls in the ball mill tank are doing planetary movement, they can also do 360 ° turnover in a fixed space, so as to realize the multi-dimensional and multi-directional movement of the grinding balls and materials in the ball mill tank and improve the disordered movement of the grinding balls and materials, The whole material is ground without dead angle in the grinding tank, so that the ground material is more uniform, and the problems of bottom sinking and tank sticking of some materials can be solved.

Product character

Mode of transmission	Gear transmission
Mode of working	Two and four ball grinding jars work simultaneously
Maximum loading capacity of materials	Two thirds of the volume of the ball mill jar
Ball mill tank volume	0.05-10L per jar, total volume 0.2-40L
Feed granularity	Soil material≤10mm, and other materials≤3mm
Granularity of discharge	Up to 1 micron
Mode of speed regulation	Infinitely adjustable-speed

Model	Volume	Configurable ball mill specifications	Qty	Configurable vacuum ball mill volume	Locking device
OPBM-0.4	0.4	50-100ml	4	50ml	automatic
OPBM-1	1	50-250ml	4	50-100ml	automatic
OPBM-2	2	50-500ml	4	50-250ml	automatic
OPBM-4	4	250-1000ml	4	50-500ml	automatic
OPBM-6	6	1-1.5L	4	50-1000ml	automatic
OPBM-8	8	1-2L	4	50-1500ml	automatic
OPBM-10	10	1-2.5L	4	1-2L	automatic
OPBM-12	12	1-3L	4	1-2L	automatic
OPBM-16	16	2-4L	4	1-3L	automatic
OPBM-20	20	2-5L	4	2-4L	automatic
OPBM-40	40	5-10L	4	4-5L	automatic
OPBM-60	60	10-15L	4	5-10L	manual
OPBM-80	80	15-20L	4	10-15L	manual
OPBM-100	100	20-25L	4	15-20L	manual

Model	Power supply	Power(kw)	Rotary motor power(KW)	Total time to run the set(min)	Alternating positive and negative running time(min)	Adjustable speed Revolution(rpm) Rotation(rpm)
OPBM-0.4	220V-50HZ(single-phase)	0.75	0.09	1-9999	1-9999	47-465	94-930
OPBM-1	220V-50HZ(single-phase)	0.75	0.09	1-9999	1-9999	35-370	70-740
OPBM-2	220V-50HZ(single-phase)	0.75	0.09	1-9999	1-9999	35-370	70-740
OPBM-4	220V-50HZ(single-phase)	0.75	0.09	1-9999	1-9999	35-370	70-740
OPBM-6	220V-50HZ(single-phase)	0.75	0.12	1-9999	1-9999	35-370	70-740
OPBM-8	220V-50HZ(single-phase)	1.5	0.12	1-9999	1-9999	35-320	70-640
OPBM-10	220V-50HZ(single-phase)	1.5	0.12	1-9999	1-9999	35-320	70-640
OPBM-12	220V-50HZ(single-phase)	1.5	0.12	1-9999	1-9999	35-320	70-640
OPBM-16	380V-50HZ(three-phase)	3	0.12	1-9999	1-9999	30-255	60-510
OPBM-20	380V-50HZ(three-phase)	4	0.75	1-9999	1-9999	25-215	50-430
OPBM-40	380V-50HZ(three-phase)	5.5	0.75	1-9999	1-9999	20-195	40-390
OPBM-60	380V-50HZ(three-phase)	7.5	1.1	1-9999	1-9999	27-174	40-260
OPBM-80	380V-50HZ(three-phase)	11	1.5	1-9999	1-9999	27-160	40-240
OPBM-100	380V-50HZ(three-phase)	11	1.5	1-9999	1-9999	27-160	40-240

Model	Standard panel (optional touch screen)	Lubrication way（optional automatic grease-adding device）	Mode of speed regulation	Weight(kg)	Size(Length * width * height)	Noise≤db
OPBM-0.4	intelligent	grease	Frequency control	140	900570650	55±5
OPBM-1	intelligent	grease	Frequency control	280	1330770810	60±5
OPBM-2	intelligent	grease	Frequency control	280	1330770810	60±5
OPBM-4	intelligent	grease	Frequency control	285	1330770810	60±5
OPBM-6	intelligent	grease	Frequency control	290	1330770810	60±5
OPBM-8	intelligent	grease	Frequency control	345	1350850900	60±5
OPBM-10	intelligent	grease	Frequency control	345	1350850900	65±5
OPBM-12	intelligent	grease	Frequency control	350	1350850900	65±5
OPBM-16	intelligent	grease	Frequency control	400	15509401050	65±5
OPBM-20	intelligent	grease	Frequency control	710	170012001250	68±5
OPBM-40	intelligent	grease	Frequency control	1000	190014501400	68±5
OPBM-60	intelligent	grease	Frequency control	2180	215017502090	68±5
OPBM-80	intelligent	grease	Frequency control	2400	230019002140	68±5
OPBM-100	intelligent	grease	Frequency control	2400	230019002140	68±5

Features of omnidirectional planetary ball mill

The equipment is lightweight sliding door] easy to operate, the shell is made of high-precision laser cutting, CNC bending forming, generous and exquisite, high-end and stable, the planetary disc and structural components are processed by CNC processing technology, and the nitriding metal heat treatment process ensures the resistance of the rotating shaft. To prevent shaft breakage, the transmission gear adopts high-temperature and wear-resistant non-metal and metal combination precision gears, which are lubricated by grease, and can be equipped with our company's automatic grease adding device. Lubricating the transmission components causes abrasion, shortens the service life of the equipment, and ensures the smooth and quiet operation of the equipment at high speed.

Planetary mill is an indispensable equipment for high-tech material mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production. The product is small in size, complete in function and high in efficiency. It is an ideal equipment for scientific research institutions, universities, and corporate laboratories to obtain microparticle research samples (four samples can be obtained simultaneously for each experiment). Grind the sample under vacuum.

Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other sectors, such as: electronic ceramics, structural ceramics, magnetic materials, lithium cobalt oxide, lithium manganese oxide, catalysts, fluorescence Powder, long afterglow luminous powder, rare earth polishing powder, electronic glass powder, fuel cell, ceramic capacitor, zinc oxide varistor, piezoelectric ceramic, nano material, chip ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO Varistor, arrester valve, strontium titanate ring varistor, ceramic filter, dielectric ceramic, piezoelectric transducer, piezoelectric transformer, chip resistor, thick film circuit, pyroelectric potentiometer, alumina ceramic , Zirconia ceramics, fluorescent powder, zinc oxide powder, cobalt oxide powder production, nickel-zinc ferrite, manganese-zinc ferrite and other industry products.

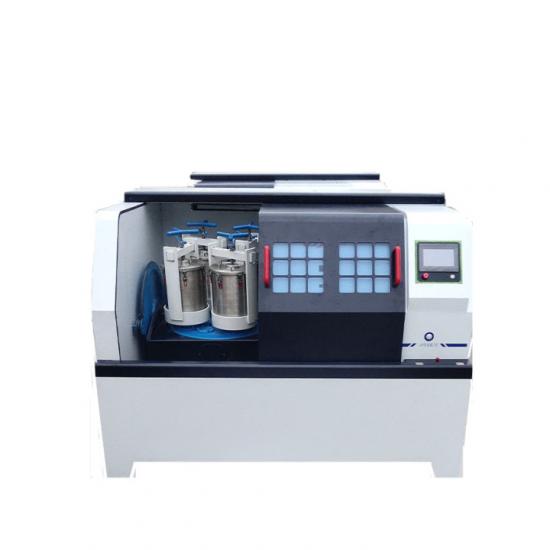

The planetary pulverizer is designed to crush, grind and disperse metal, non-metal, organic, Chinese herbal medicine and other powders. Especially suitable for laboratory research use. Strong shear, impact, and rolling can achieve the purpose of crushing, grinding, dispersing and emulsifying materials. The planetary ball mill is equipped with four ball mill pots on the same turntable. When the turntable rotates, the ball mill pan revolves around the turntable axis, and at the same time rotates around its own axis, making planetary motions. The grinding balls in the tank collide with each other in high-speed motion to grind and mix the sample. The product can be used for dry and wet grinding and mixing products with different particle sizes and materials. The minimum particle size of the ground product can be as small as 0.1 microns. Can well meet the requirements of various process parameters. At the same time, due to the advantages of small batch, low power consumption, and low price, it is the primary choice for schools, scientific research units, and enterprises to carry out research on crushing technology, new materials, and coatings.
