Lab LCD Digital Display Rotational Viscometer Machine

I. Product Model: HS-NDJ5S

II. Product Description

This instrument is a 16-bit microprocessor core control circuit, gearless drive, RTD temperature probe real-time monitoring and measurement of viscosity temperature, blue screen LCD digital display directly displays viscosity, speed, percentage of torque, rotor number and the selected rotor at the current speed of the maximum viscosity value can be measured. Pressing the button is eye-catching, the rotating speed is smooth, and the measurement is accurate. Equipped with RTD temperature probe and RS232C standard output interface, connected to a PC can be saved, compared and recorded data (optional PC interface for fully automated data collection function).

III. Usage

Apply to grease, paint, paint, drugs, food, cosmetics, adhesives and other fluids viscosity measurement, can also be used to measure the viscous resistance of the liquid and absolute viscosity.

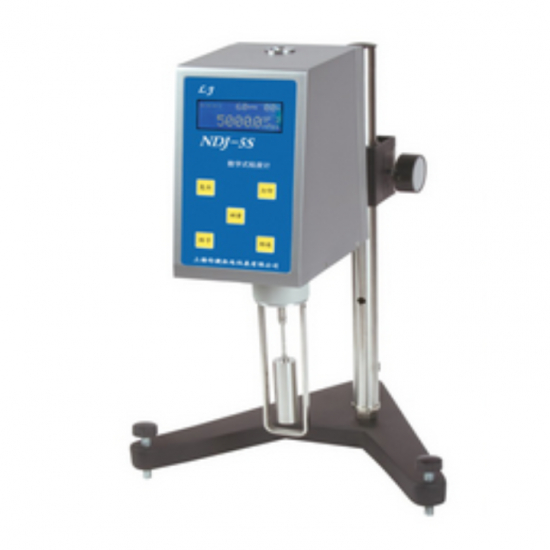

IV. Product Appearance



V. Performance parameters

Measuring range	1～100、000 mPa·s (cP)
Rotational speed	6、12、30、60(rpm)
Number of rotors	Supplied with 4 rotors, No. 1, 2, 3 and 4 (No. 0 rotor is optional).
Measurement accuracy	±1.0%
Reproducibility	0.50%
Power supply	Power Adapter ( Input 220V 50±1Hz, Output 15V 1.2A)
Dimensions and weight	L×W×H: 280×105×258mm (without bracket), 1.5Kg



VI. Configuration list

Viscometer main unit	1 set	Seat foot, wrench	1 each
Power Adapter	1 pc	Certificate of Conformity	1 copy
Rotor Kit 4 pcs	1 set	Warranty card	1 copy
Protective Frame	1 pc	Instruction manual	1 copy
Lifting frame	1 pc	Combination box	1 pc



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
