Lab High Measurement Accuracy Rotary Viscometer Optional Small Sample Adapter with Button Function

Brief introduction

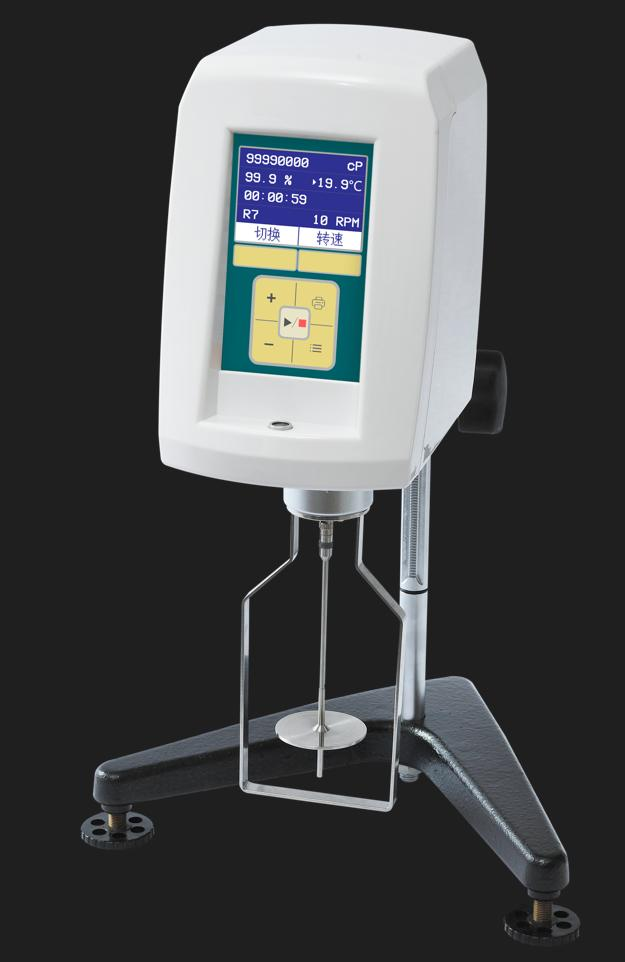

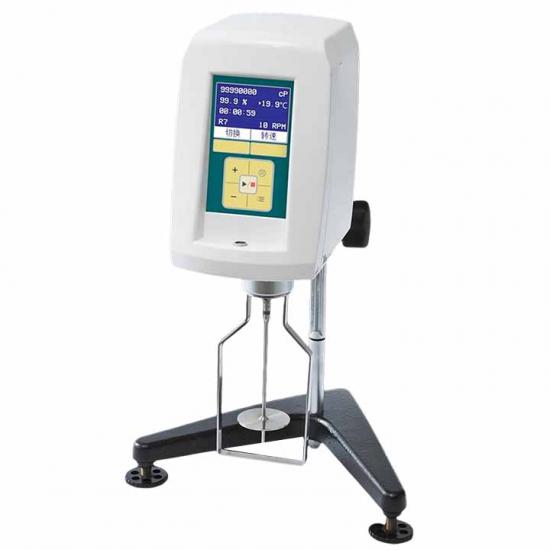

The HADV-1 rotary viscometer provides rapid, accurate and convenient measurement of fluid samples with medium to high viscosity. Powerful, optional small sample adapter, enhanced ultra-low viscosity adapter, more speed, the maximum measurement of 26 million mPa.S. It has many measuring parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable speed, strong anti-interference performance, display shear rate and viscosity curves, wide working voltage and other obvious advantages. It can replace similar imported instruments.

Main features:

1. Accurate viscosity measurement: each range is automatically calibrated by computer, with high accuracy and small error;

2. Front level: level adjustment is intuitive and convenient;

3. Optional Pt100 temperature probe: wide temperature range, from -20 to 300℃, temperature measurement accuracy of 0.1℃;

4. Optional enhanced ultra-low viscosity adapter ULR/URL PLUS;

5. Optional small sample adapter SSR/SSR PLUS, the sample size of each measurement is only 7-11ml;

6. Abundant optional accessories: constant temperature bath, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.

7. Automatic scanning, timing measurement and other functions;

8. Viscosity measurement stability automatic prompt function;

9. Display shear rate and shear stress;

10. Viscosity unit switching (1Pa.s=1000mPa.s; 1P=100mPa.s ;  1cP=1mPa.s);

11. Temperature unit switch: Celsius, Fahrenheit;

12. Connect printers and computers

13. Switch between Chinese and English operating systems

The torque of the spring, the shape of the rotor, the size of the speed, and the range of viscosity measurement are the same as that of the imported viscometer, and the measured viscosity and other data are very comparable with the imported similar instruments.

Widely used in asphalt, paste, caulking, peanut butter, chocolate, putty, plaster, epoxy resin, roofing materials, gels, sealants, ink, sheet molding plastics, (ballpoint pen ink, plate printing ink), molasses, tar and other samples measurement.

Detailed technical parameters

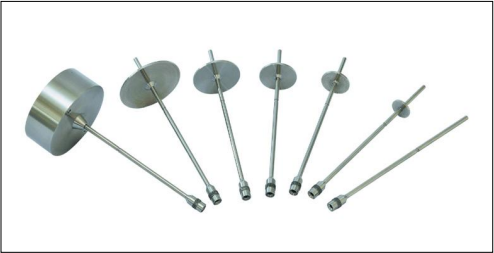

From left to right: R1-R7 rotor

Optional accessories:

1. R1 rotor

Measure samples with viscosity below the lower limit of rotor R2.

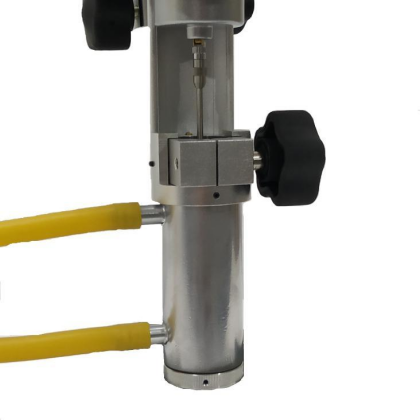

2. Enhanced ultra-low viscosity adapter (ULR/ULR PLUS)

ULR standard equipped with No. 0 rotor, sample cylinder, fixed ring, connecting frame, knob, etc. ULR PLUS adds a circulating thermostatic water jacket. Used to measure ultra-low viscosity. Different viscometer models measure different ranges.

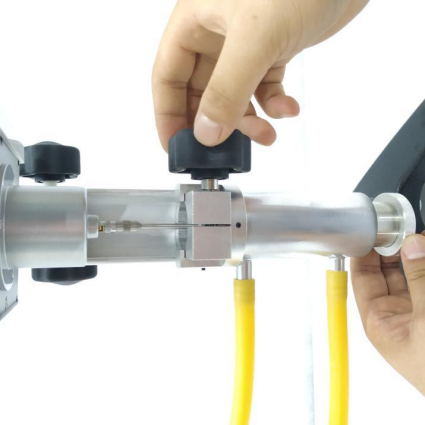

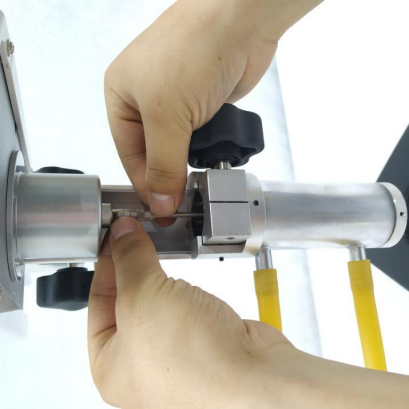

3.Small sample adapter SSR/SSR PLUS

The SSR standard configuration has 21,27,28,294 rotors and sample cylinders, connecting frames, fixed rings, knobs, etc. The SSR PLUS adds a thermostatic circulating water jacket

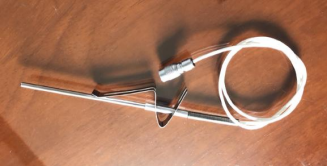

4. Temperature probe (temperature sensor)

Temperature measurement range: 20,300℃

Temperature measurement accuracy: 0.1℃

5. Micro printer

Connect the viscometer directly to print various data displayed on the viscometer screen

6. Low temperature constant temperature tank DC0506W:

Temperature control range: -5 to 100℃

Temperature control accuracy: 0.1 ℃

The square opening can be put into ordinary beakers of 400ml and 500ml

The thermostatic tank has the function of external circulation and can be connected to the thermostatic cup.

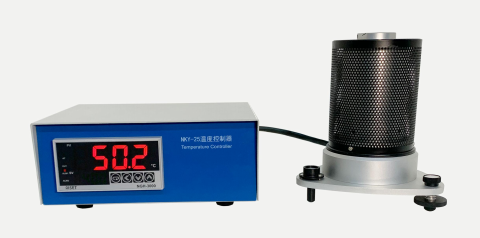

7. Temperature control device and heating furnace

Measure low viscosity of high-temperature molten samples such as polyethylene wax, which can be used for rotor 0.

Measurement of other high-temperature melting samples such as asphalt, hot melt adhesive, rosin, paraffin, etc., can be used 21,27,28,29 rotors.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
