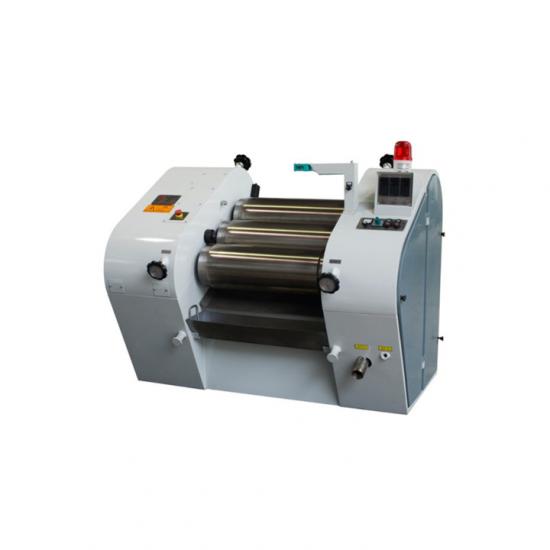

Lab Hydraulic Three Roll Mill Applied to Electronics Cosmetics and Pharmaceuticals

SY three roll mill is designed for universal applications and for meeting the most stringent quality standards. Convenient, easy operation, handy design and easy to clean. Versatile machine for low to high viscosity masses, e.g. all types of printing inks, artists’ colors, industrial and decorative paints, toners, coating masses, etc., applied also to products from the fields of electronics, cosmetics and pharmaceuticals.

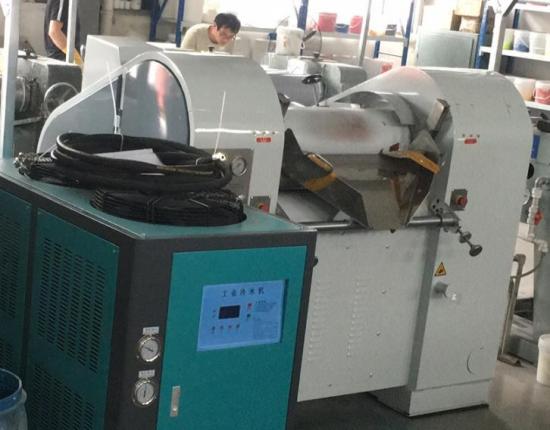

Each of the three rolls is equipped with an individually adjustable high-efficiency cooling system. Automatic, precise control ensures constant roll temperatures and thereby uniform, reproducible operating conditions. The cooling water supply is automatically stopped when the machine is not running. This prevents undesirable cooling of the rolls and unnecessary water consumption. The hydro-dynamic roll pressing system guarantees high throughput and permanently stable, reproducible pres-sures in the roll gap. Three roll operating positions can be selected:

1. Pressing: Working position for the grinding and dispersion

2. Mixing: Intake gap is pressed for intermixing the material

3. Disengagement: Rolls are disengaged for cleaning



An adjustment mechanism allows a defined roll gap to be set. This permits the processing of short, dilute and low-viscosity products.

Three roller mill uses shear force created by three horizontally positioned rolls rotating in opposite directions and different speeds relative to each other, in order to mix, refine, disperse, or homogenize viscousmaterials fed into it.

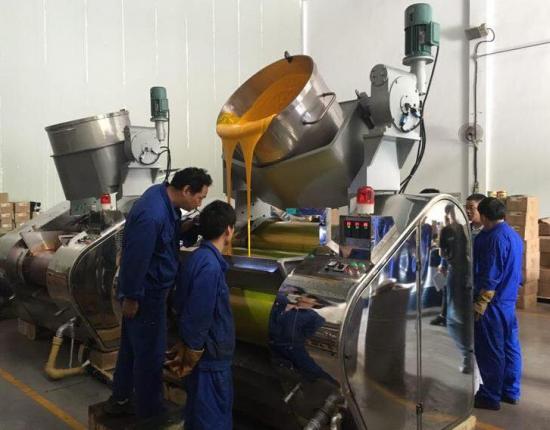

The material is fed into gap between feeding roller and middle roller from feeding hopper, to start first squeeze and milling, then transfer into outlet roller for second milling. The material can be collected in outlet blade after second milling to finish the operation process. The material can be mixing and milling between three rollers until reach the fineness. The milling times and fineness are related with material quality and previous process.

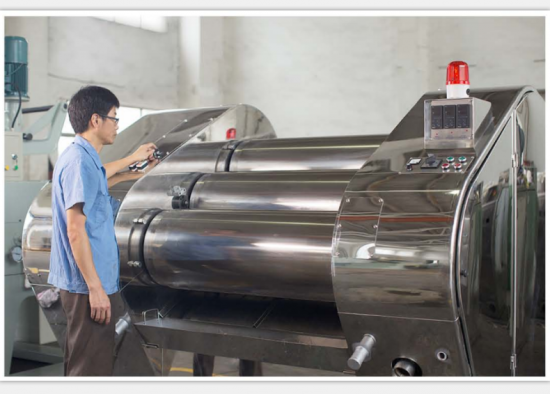

SY Hydraulic Three Roll Mill is designed for high quality request. It features good universal operation, low noise, stable working.  All the important mill parameter, for example roller temperature, roller pressure, blade pressure can be pre-set as products requirement. The pre-set parameter including pressure can be re-set and keep stable/accurate during the operation process.

This machine is equipped with original created integration panel oil circuit type in domestic market, the machine operation is controlled by magnetic valve, the response speed of press and loosen is fast with average pressure, easy controlling, the different finess of material can be available via adjusting pressure. The special connector is equipped in oil circuit so as to make sure no leakage, and easy for maintenance and dismantle. The roller is made of special alloy material casting with high strength and abrasive resistance.

TECHNICAL SPECIFICATIONS

Model	Roller dia.	Roller length	Slow roll	Mid roll	Fast roll	Motor power	General pressure	Pump power	Weight
SY260-650	260mm	650mm	49rpm	140rpm	400rpm	18.5kw	≤6.17	1.5kw	2500kg
SY400-800	400mm	800mm	31rpm	122rpm	400rpm	37kw	≤6.17	1.5kw	5000kg
SY400-1000	400mm	1000mm	31rpm	122rpm	400rpm	37kw	≤6.17	1.5kw	5120kg
SY400-1300	400mm	1300mm	31rpm	122rpm	400rpm	55kw	≤6.17	1.5kw	5280kg

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
