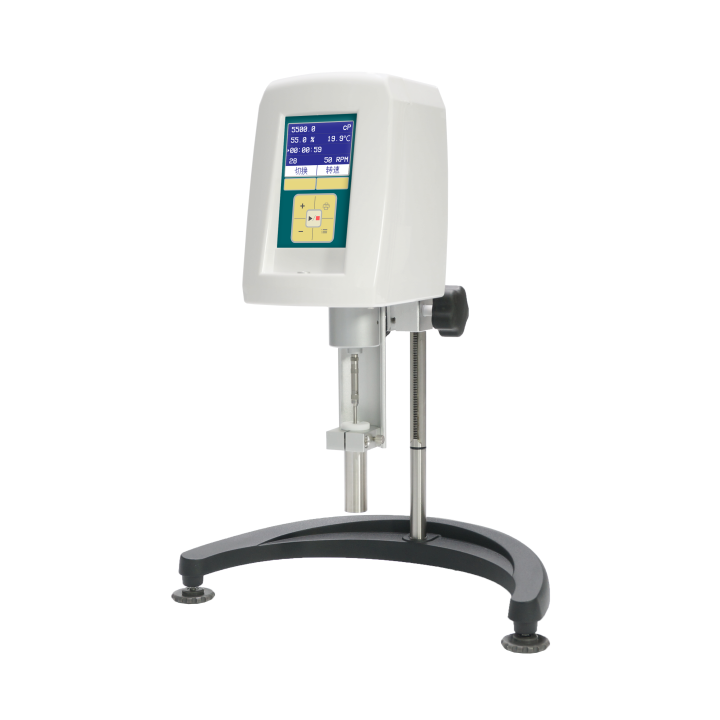

Lab High Temperature Rotational Viscometer with 37 Kinds of Rotation Speed

A. Main feature

1. Accurate viscosity measurement: each range is automatically calibrated by computer, with high accuracy and small error;

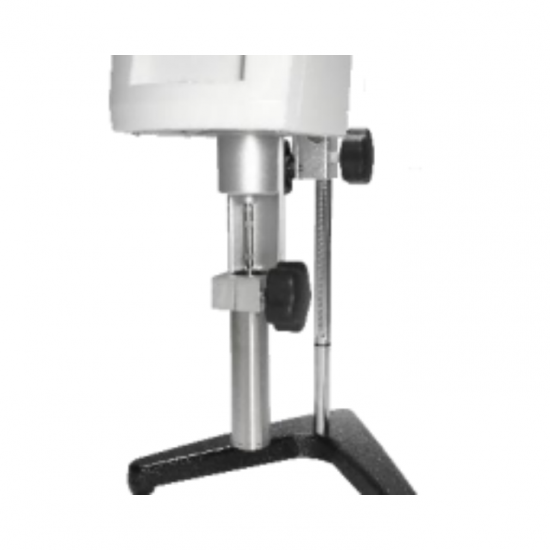

2. Front level: level adjustment is intuitive and convenient;

3. Optional Pt100 temperature probe: wide temperature range, from -20 to 300℃, temperature measurement accuracy of 0.1℃;

4. Optional enhanced ultra-low viscosity adapter ULR/URL PLUS;

5. The sample size of each measurement is only 7-11ml;

6. Abundant optional accessories: constant temperature bath, printer, standard viscosity sample (standard silicone oil), etc.

7. Automatic scanning, timing measurement and other functions;

8. Viscosity measurement stability automatic prompt function;

9. Display shear rate and shear stress;

10. Viscosity unit switching (1Pa.s=1000mPa.s; 1P=100mPa.s; 1cP=1mPa.s);

11. Temperature unit switch: Celsius, Fahrenheit;

12. Connect printers and computers

13. Switch between Chinese and English operating systems

B. Equipment introduction

The torque of the spring, the shape of the rotor, the size of the speed, and the range of viscosity measurement are the same as that of the imported viscometer, and the measured viscosity and other data are very comparable with the imported similar instruments.

LV series viscometers measure low viscosity samples. The main samples are: solvent-based adhesives, latex preparations, oils, petroleum, chemical reagents, paints, coatings, cosmetics, daily chemicals, photosensitive resins, hot paraffin, polymer solutions, ink, rubber solutions, fruit juices, solvents, etc.

RV series viscometers are suitable for medium viscosity fluids, mainly measuring samples are: paint, asphalt (SHRP), paper coatings, ceramics, pulp, cream objects, plastisol, daily chemicals, starch, food products, surface coatings, resins, gums, toothpaste, screen printing inks, brighteners, organic solvents

C. Main technical parameters:

D. Optional accessories:

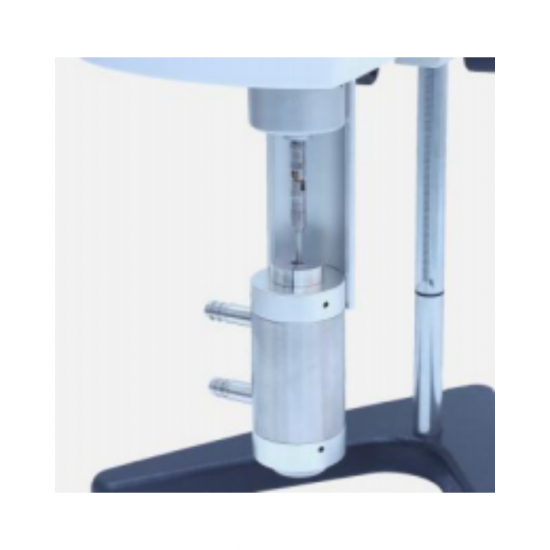

1. Constant temperature circulating water jacket

If you want to control the temperature of the tested sample, it is necessary to choose the constant temperature circulating water jacket and connect the constant temperature tank with a hose. Temperature-controlled water in the thermostatic tank passes through the water jacket to transfer temperature to the sample.

ULR(without thermostatic circulating water jacket)

ULR PLUS (with thermostatic circulating water jacket)

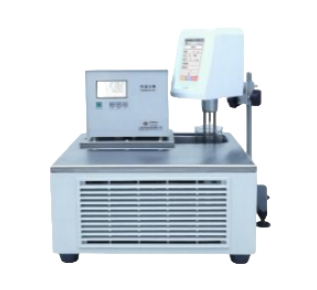

2.DC0506W viscometer special low temperature constant temperature tank

1) High performance single chip microcomputer control, self-tuning PID regulation, imported Japanese platinum resistor, imported embrsco refrigeration compressor, fast cooling, temperature control.

2) The use of large screen backlight LCD display, the parameters are clear, with a broken pair protection constant temperature liquid level protection device, can effectively prevent the instrument out of control and heating tube air burning and other phenomena.

3) The instrument is stable, reliable and easy to operate.

4) In the full range of temperature control, linearity is very good, DCW(N) series with 0.1 display accuracy, temperature control accuracy error is less than 0.2℃; The temperature fluctuation is less than ±0.05;

5) Temperature control range: -5 to 100℃

The above models of viscometers can also be selected with temperature control device and heating furnace combination high-temperature Brinell viscometer, used to measure high-temperature melting samples, such as paraffin, polyethylene wax, asphalt, hot melt adhesive, plastic and other samples.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
