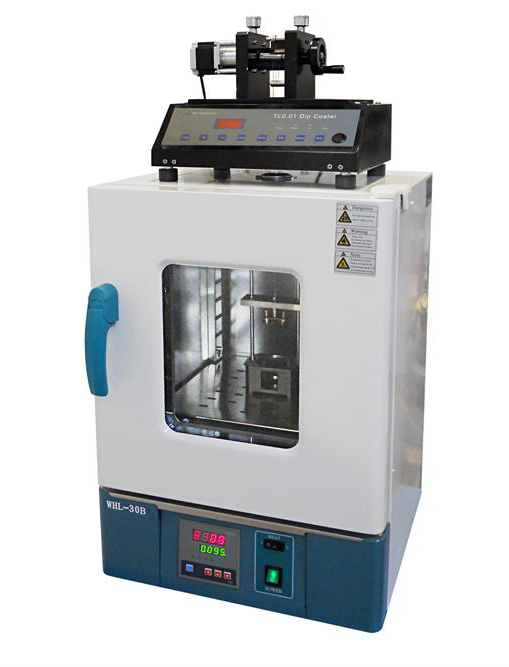

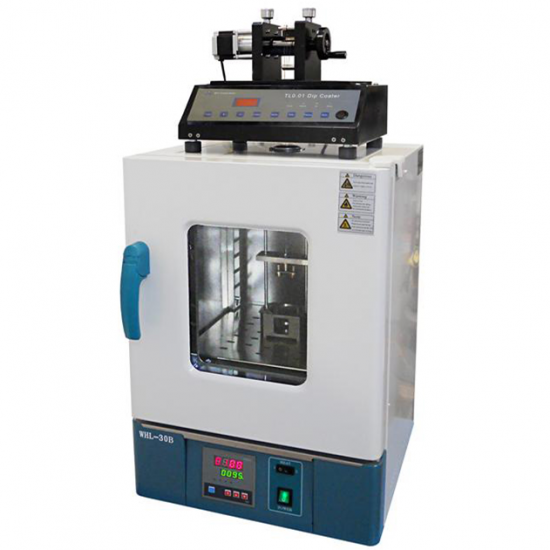

Lab Dip Coater (1-200 Mm/Min) With Drying Oven Up To 100°C

PTL-MMB01 is a CE Certified Millimeter Grade Desktop Programmable Dip Coater (1 - 200mm/min). The system is controlled by SBC, which provides adjustable dipping speed, pulling speed, and travelling length. It is designed for R&D Lab to prepare various optical or epitaxial films from liquid solution.

Specifications：



Working Voltage	110/220V AC selectable
Travelling Distance	0-200 mm Adjustable
Dipping/Pulling Speed	1-200 mm/min Adjustable, controlled by digotal pannel.
Sample Holder	Two screw sample clips are installed in the sample holder in order to carry the samples sliding up and down through two guide rods
Solution Container	One 150mL beaker is included
Beaker Holder	The beaker which contains the coating material (coating solution) will be placed into the slot of the beaker holder.
Max. Sample Size	3"(L) x 2"(W)
Sample Weight	Less than 250g
Dipping/Pulling Motor	Stepping Motor
Oven	1.Working Voltage: 110/220V AC selectable in Personalization 2.Max. Power Consumption: 600W 3.Chamber Dimensions: 280mm(L) x 280mm(W) x 280mm(H) 4.Inner Material: Stainless Steel 5.Digital temperature controller at range 50-200°C with +/- 1°C accuracy.
Product Dimensions	440mm(L) x 460mm(W) x 1040mm(H)
Compliance	CE Certified
Warranty	Two years limited with lifetime support
Application Notes	1.For pulling multi sample, please consider  6-Position Programmable Desktop Dip Coater  2.In order to get better film coating, the substrate shall be treated by plasma cleaner  3.Use ultrasonic processor to disperse nano powder or homogenize solution to get better coating
Shipping Weight	46 kg (100 lbs)



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
