Lab High Precision Program Controlled Vertical Dip Coating Machine with Touch Control Screen

Product introduction

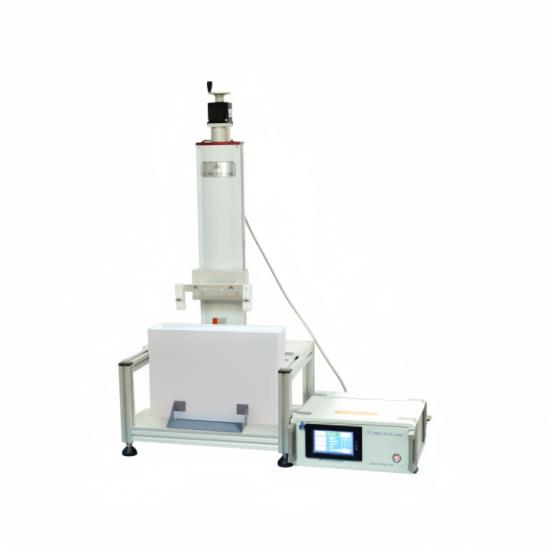

PTL-MM02-200 program controlled vertical dip coating machine is a precision equipment designed for the study of liquid phase growth film, by vertically lifting samples impregnated in the liquid phase to grow film. Large samples can be coated, sample size up to 310mm×260mm, thickness of 1mm-5mm, by customizing different sample clips can also be fixed multiple samples at a time. The lifting speed of the sample, the impregnation time of the sample in the liquid film material, the inlet speed of the sample, the number of cycles of the sample film coating, and the drying time of the sample can be controlled by the control system. PTL-MM02-200 program controlled vertical dip coating machine adopts high precision speed control system and touch screen parameter input to realize automatic control of the whole process of lifting and drawing film. The machine is small in size, simple and convenient in operation, and is an ideal equipment for the coating of large samples in laboratories and small production workshops at room temperature.

Main features:

a.Touch control screen is used to set lifting speed, descending speed and residence time according to actual needs.

b.It can set the lifting speed, impregnation time, inlet speed, number of cycles and drying time.

c.Adopt high precision stepper motor.

d.It has passed the CE certification.

Technical parameter

Product name	PTL-MM02-200 program controlled vertical dip coating machine
Product model	PTL-MM02-200
Installation condition	The equipment is required to be used at an altitude of less than 1000m, at a temperature of 25℃±15℃, and at a humidity of 55%Rh±10%Rh. 1. Water: No need 2. Electricity: AC220V 50Hz, must have good grounding 3. Gas: No need 4. Workbench: size 800mm×600mm×700mm, bearing capacity of more than 200kg 5. Ventilation device: no need
Main parameter	1. Power supply: 220V(50Hz)
	2. Running (up and down) speed: 1mm/min-200mm/min
	3. Stroke: 270mm
	4. Sample size :(L)310(mm)×(W)260 (mm)×(T) 1~5 (mm)
	5. Lifting load: ≤5.5kg
	6. The two-phase hybrid stepper motor is subdivided by the driver stepping Angle
	7. Dipping, drying time setting: 1-999s
	8. Can be lifted: 1-20 times

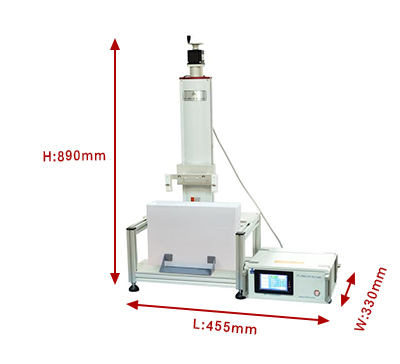

	9. Product specifications: Dimensions:455mm(L)x330mm(W)x 890mm(H)

Standard fittings

No.	Name	Qty
1	Control box	1 PC
2	Immersion tank	1 PC

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
