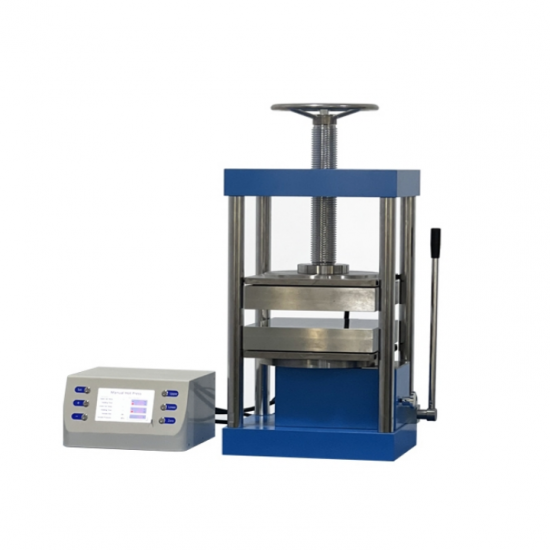

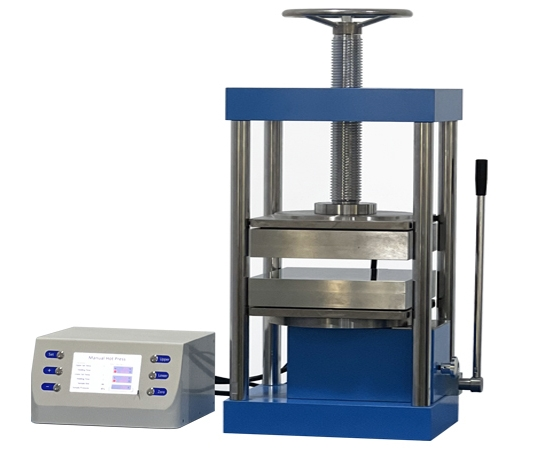

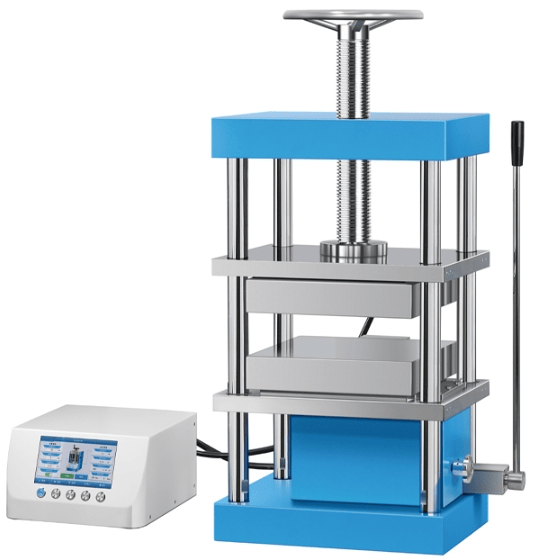

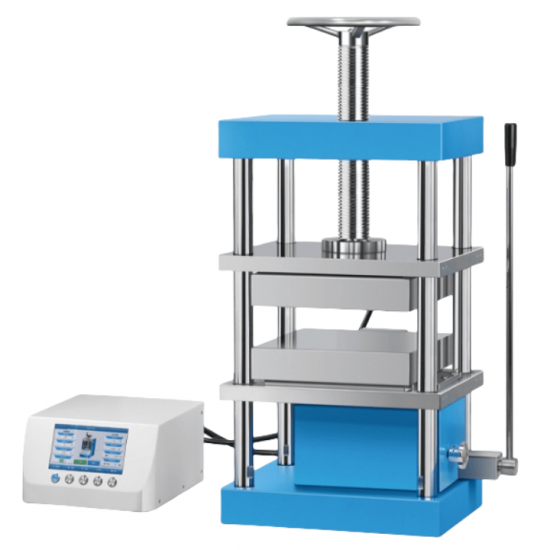

Lab 40T High Temperature Manual Hot Press with Double Heating Plates

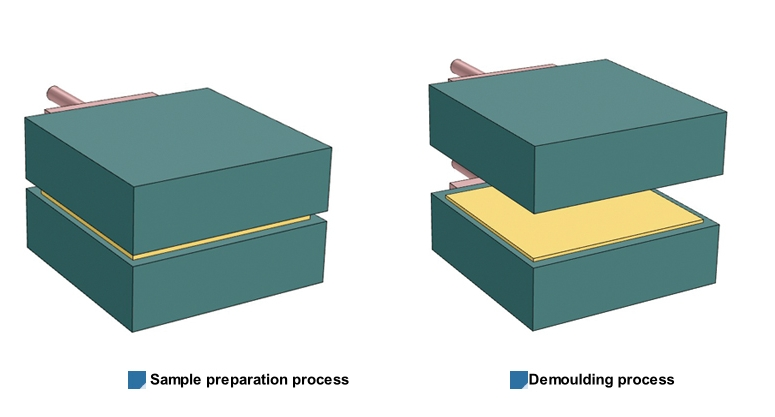

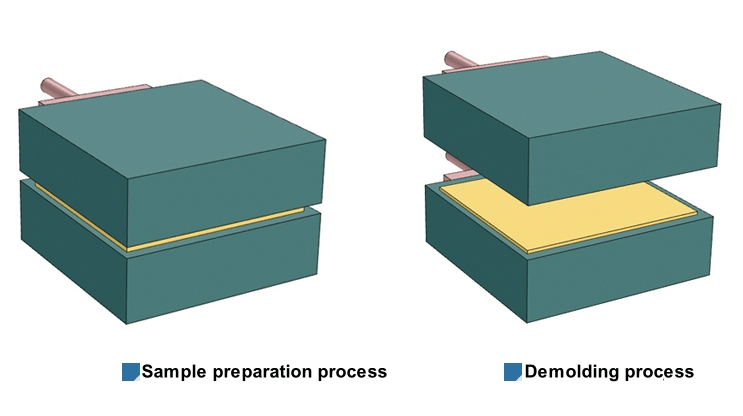

Mold operation diagram

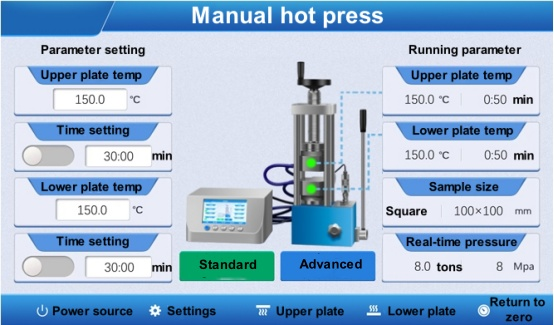

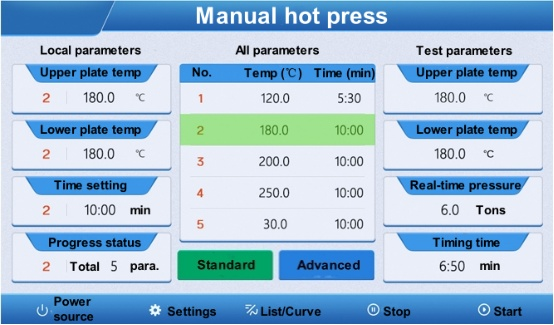

Operation interface (Manual mode)

Standard interface: The heating temperature and constant temperature time of the upper and lower plates can be set separately on the interface.

Return to zero button:Calibrate the pressure to zero.

Upper plate button: Heat the upper heating plate.

Lower plate button: Heat the lower heating plate.

Timing switch: The timing function can be turned on and off.

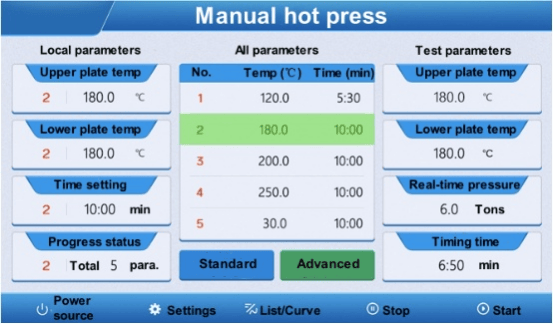

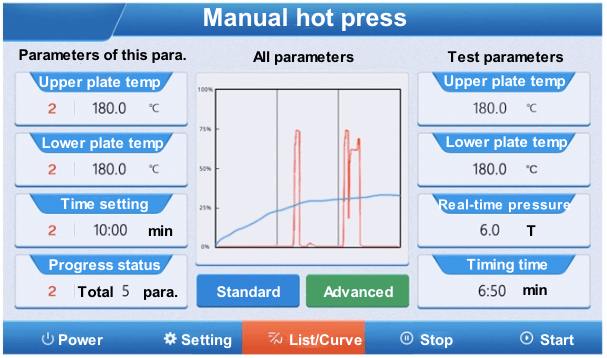

Operation interface (Automatic mode)

Start button: It can be pressurized according to the multi-stage pressurization program.

Stop button:Press the stop button to stop the heating process.

List/Curve: The current display state can be switched between list and curve

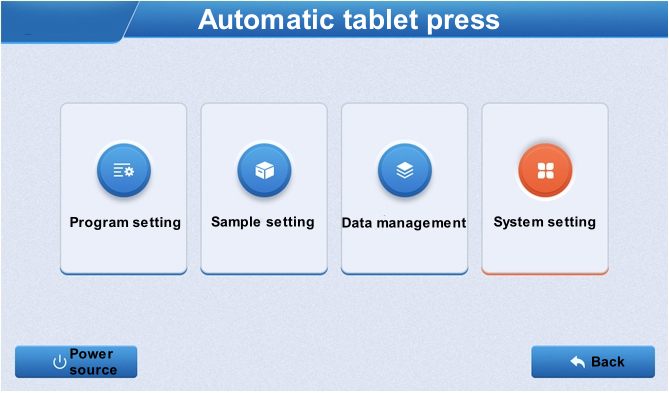

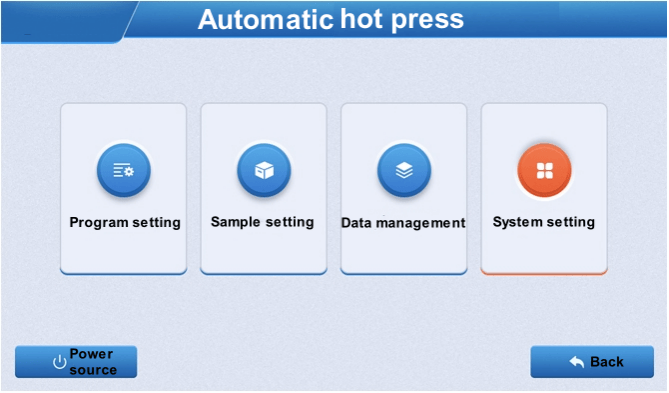

Setting interface

Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"

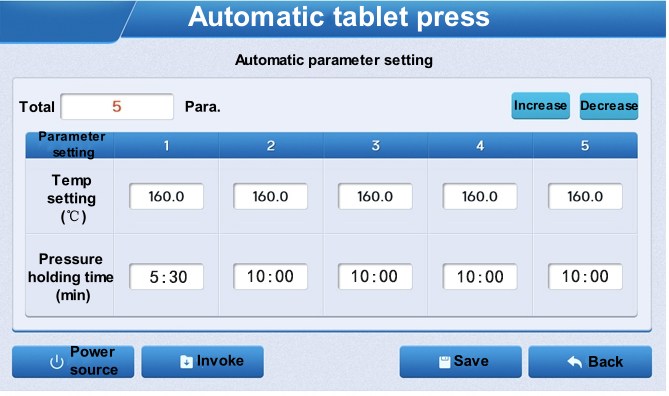

Setting interface

Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen

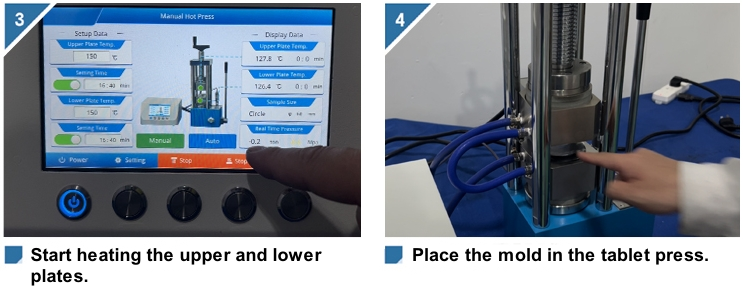

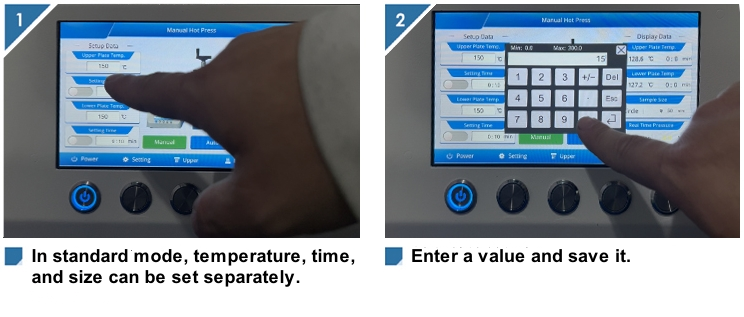

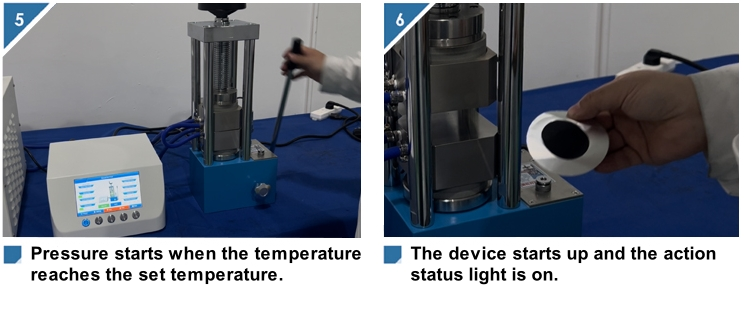

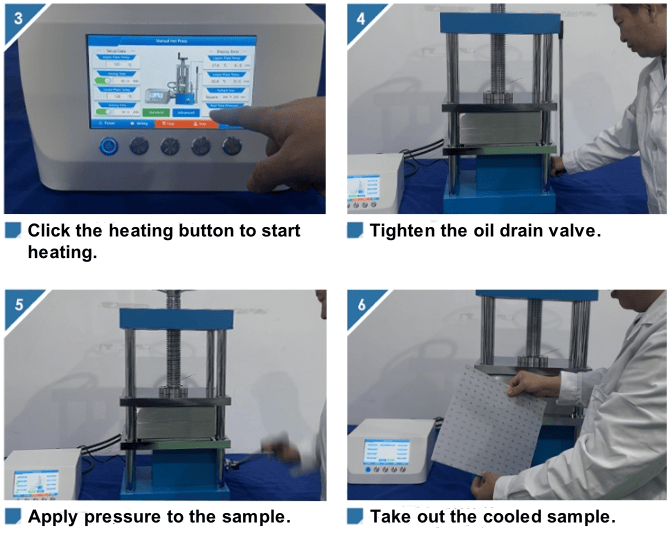

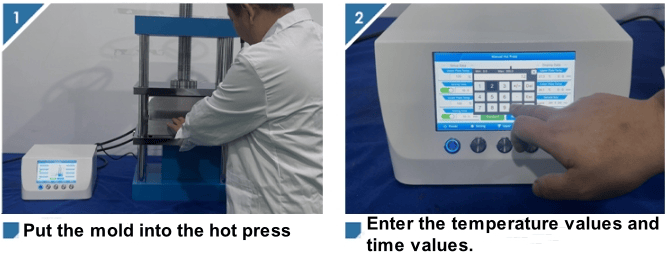

Operation procedure

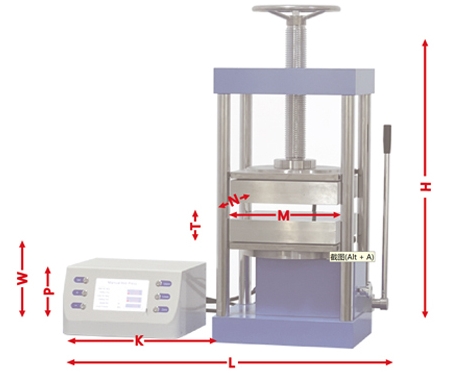

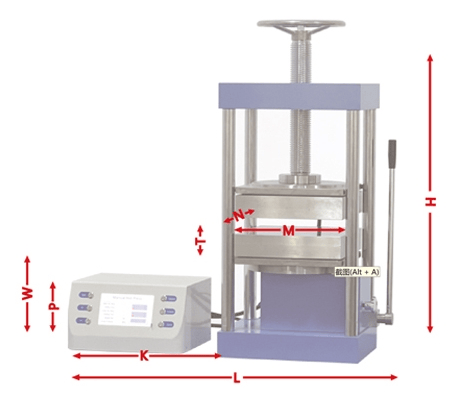

Technical parameter

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
