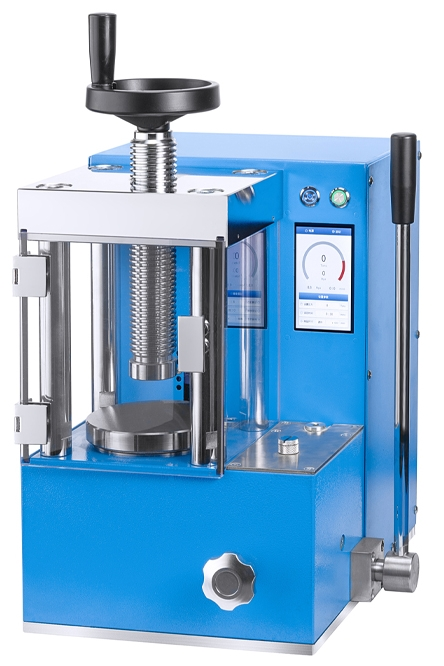

Lab 20T Electric And Manual Dual-purpose Tablet Press

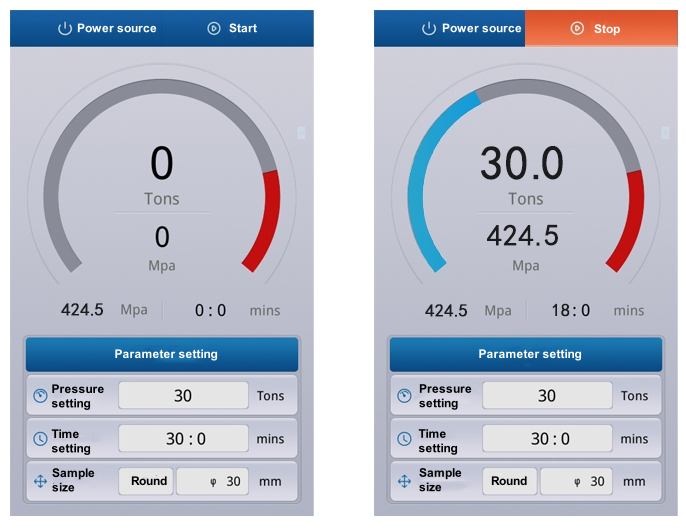

Operating interface

Parameter setting: Click Parameter setting to enter the Setting menu.

Pressure settings: The pressure applied can be set.

Time setting: Set pressure timing, when the holding time is up. The device will alert you that pressure can be relieved.

Sample size: Set the shape and size of the sample, the device will automatically calculate the pressure of the sample according to the size you set, so as not to cause overpressure.

Start button: Click the start button and the device starts to operate according to the set parameters. When the pressure reaches the set value, the pressure will automatically stop, and the automatic pressure will start. The "Start" button becomes "Stop"

Stop button: Click the stop button, the device exits the pressure retaining program. Then open the oil stem to remove the pressure.

Operating interface

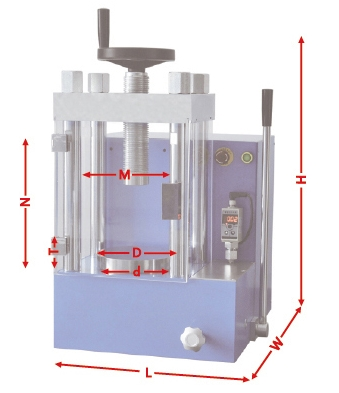

Technical parameter

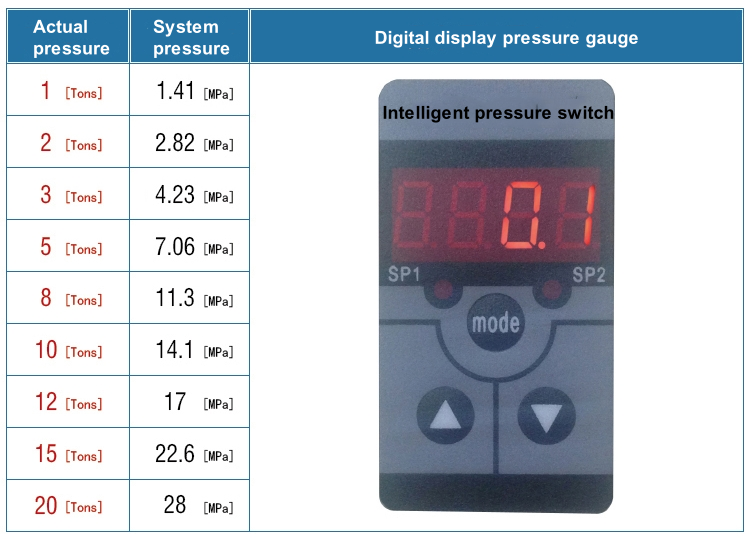

Pressure conversion

Tip: The general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
