Item No.:
TMAX-PCH-600APayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
15 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

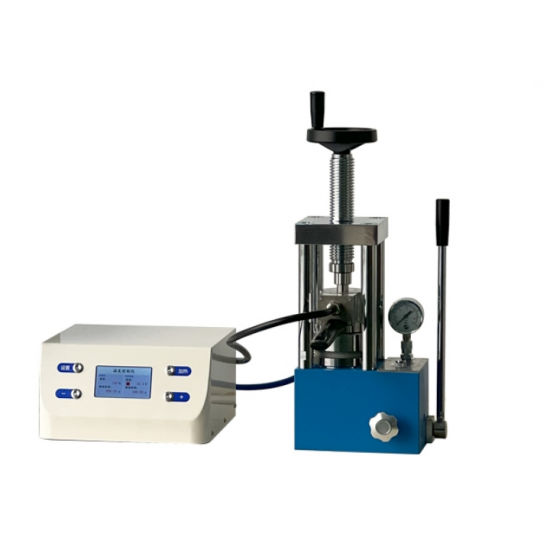

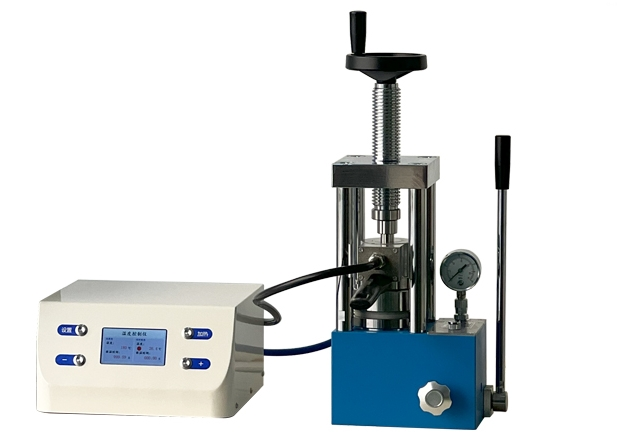

One year limited warranty with lifetime technical supportLab 15T 300C or 500C Cylindrical Hot Press Optional Water Cooler
Technical parameter
|
Instrument type |
PCH-600A |
|
Pressure range |
0-15T(0-30MPa) |
|
Piston diameter |
Chrome plated cylinder φ80mm(d) |
|
Overall structure |
Main body integrated sealing structure |
|
Mold heating temperature |
Room temperature -300.0℃/500.0℃ |
|
Constant temperature time |
1 s to ∞ s |
|
Temperature control accuracy |
0.1 ℃ |
|
Heat insulation method |
Imported heat shield |
|
Cooling method |
Water cooling rapid cooling [Optional water cooler] |
|
Mold cavity size |
Inner hole <20mm[Larger size can also be customized] |
|
Main engine size |
245X175X415mm(KxPXH) |
|
Overall size |
800X470X415mm(LxWXH) |
|
Power source |
300W (220V/110V can be customized) |
|
Main engine weight |
60 Kg |
|

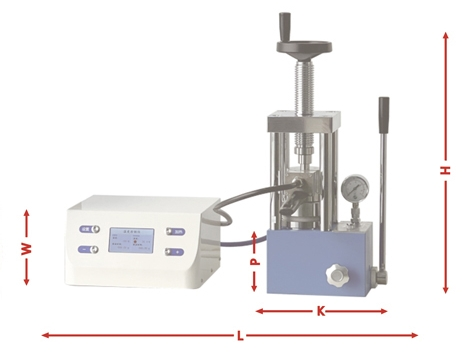

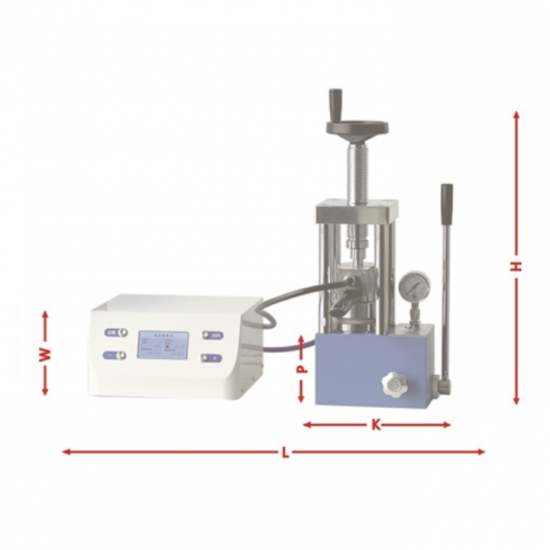

Size diagram of powder tablet press |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
