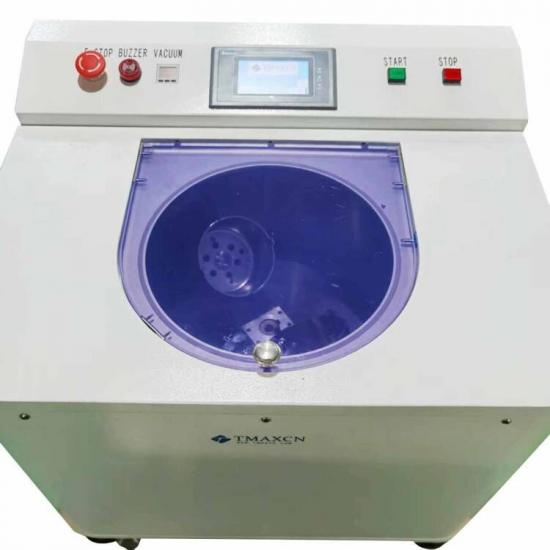

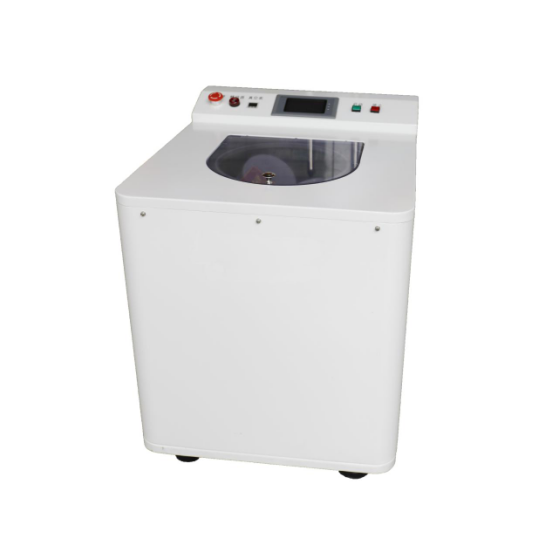

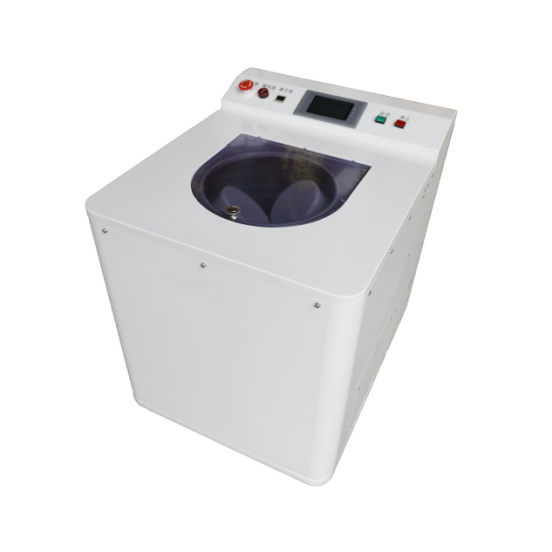

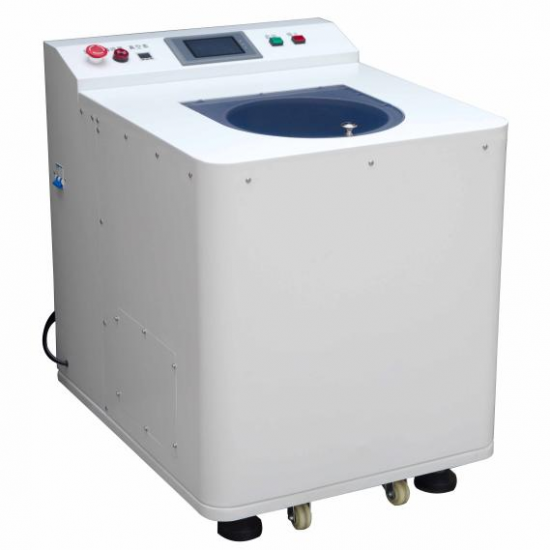

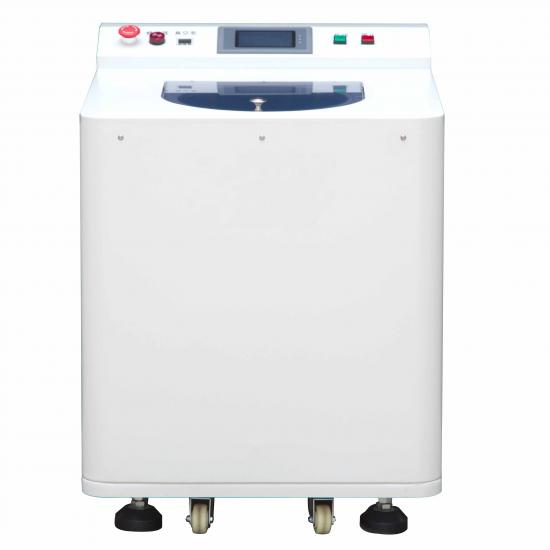

1100ml Lab Vacuum Planetary Gravity Mixer

Model: ITT-1100S

Application: suitable for dispersion, mixing and deaeration of multi-component materials (silica gel, multi-component epoxy resin etc.).

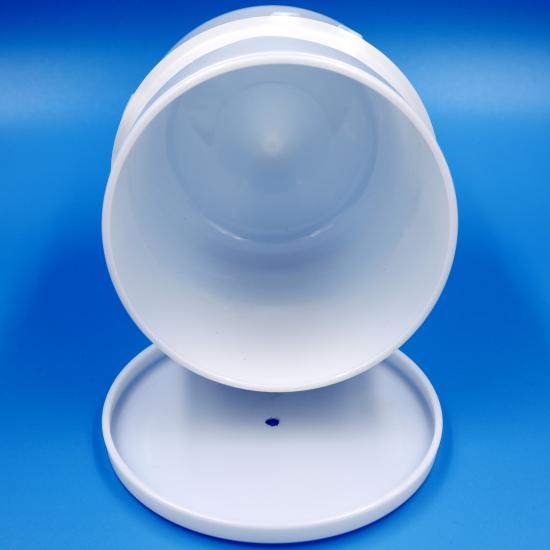

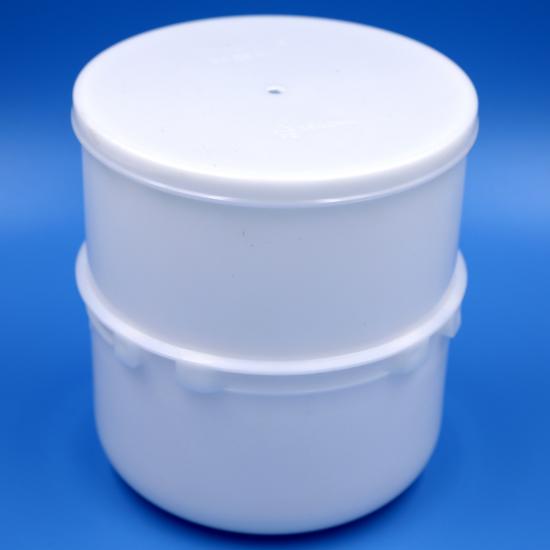

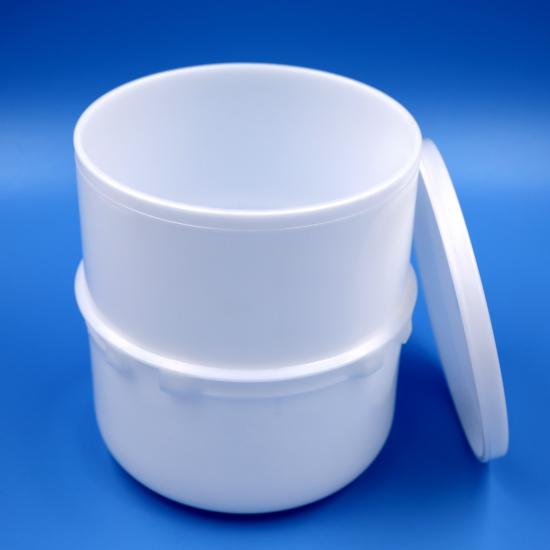

Standard container: 1100ML (HDPE φ one hundred and twelve × 140)

Maximum processing capacity: 100g~1800g * 2; ≤600mL*2；

Revolution: 200~2000rpm stepless speed regulation, input freely according to the actual needs of users, and adjust 1rpm;

Rotation:Constant speed ratio 0.9;

Setting time: 0~3000S * 5 (five steps in total), accuracy 1s;

Parameter storage: 5 groups;

Vacuum degree: - 100KPa, accuracy: 0.1KPa;

Vacuum source: built-in two-stage advanced vacuum pump 240L/min (=4L/s=14~16m2,/hour);

Absolute limit pressure (partial pressure 5 * 10-2Pa and 0.05Pa)

Absolute limit pressure (full pressure 4 * 10-1Pa and 0.4Pa)

Vacuum setting: vacuum independent switch, with vacuum delay function, and vacuum degree can be adjusted at will;

Bearing: Japanese NSK bearing;

Control system: man-machine dialogue, Chinese interface, touch screen operation;

Balance adjustment: Double cup configuration balance;

Transmission mode: Gear transmission;

Working principle: public autorotation wingless centrifugal gravity mode;

Alarm device: detection of uncovered upper cover during operation;

Safety protection: when the upper cover is locked during operation, it will stop working when the upper cover is opened;

Applicable temperature and humidity: 10~40 ℃; 20~80% RH (without dense mist like moisture);

Voltage: AC220V ± 5%; 1-Phase； 50~60Hz；

Power: rated power of main engine 1500w, including vacuum pump

Overall dimension：L600 * W730* H780mm；

The host weigh： 150Kg.

Equipment features: The rotation and revolution movement can produce nearly 400G centrifugal gravity at the highest level, which can strongly disperse and remove bubbles; There is no spiral blade to realize mixing and dispersion in the container; No need to clean and do not pollute materials; No damage to the properties of materials (especially fibrous materials); Human computer interaction, convenient operation; Ultra small, ultra light and ultra quiet optimized design.

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
