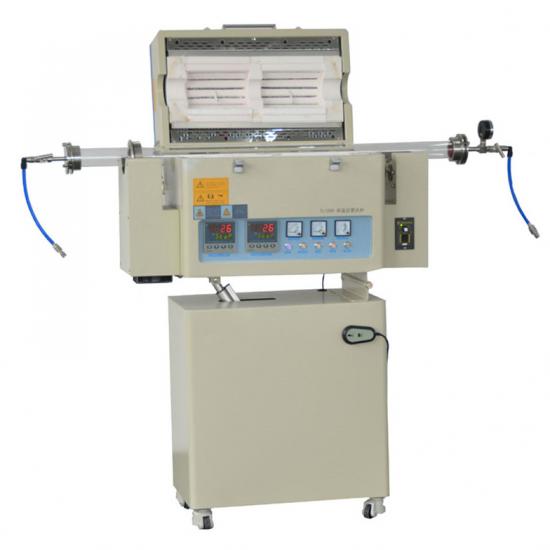

Model

1200-1200-I

1200-1200-II

Power

3KW

4KW

Tube size（OD）(mm)

Dia 60(OD) X1200mm

Dia120（OD）X1400mm

Overall dimension

580X370X1050

660X440X1100

·        Supply voltage

                                                         220V

Phase

                                                        Single

Heating element

                                               Resistance wire

·        Temperature control type

Using the Yudian electric program control thermometer (standard)

1. 30 program control temperature intelligent PID adjustment.

2, over temperature protection is broken accidentally protection with a temperature or broken accidentally electric furnace heating circuit automatically cut OFF, and, when the temperature of the furnace more than 1200 degrees or thermocouple burn out, the main circuit of ac relay will automatically disconnect, main circuit disconnect, panel ON lights, OFF the light, the limited protection electric furnace).

3. With 485 communication interface (standard and standard for choosing software)

4. It has the function of power failure protection, that is, when the power is off, the program will not start up from the beginning temperature, but the furnace will start to rise when the power is off.

5. The instrument has the function of temperature self-tuning

（Optional）

FP93 SHIMADEN,Japan          EUROTHERM          Touch screen instrument

Chamber materials

1. High quality high pure alumina polycrystalline fiber cured furnace with vacuum suction and filter molding.

2. Adopt Japanese technology to form.

3. The spacing and pitch of the resistance wire in the furnace are arranged according to the best thermal technology of Japan, and the temperature field is simulated by thermal software

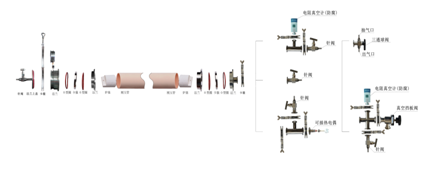

   Flange

 Rotation speed of furnace tube

 With the infinitely variable speed motor, the speed can be adjusted (0-25 RPM/min)

 Motor Power

                                                              40W

 Angle range of Inclination

                                                        -10 ~ 30℃

 Electric lifting support frame power

                                                              40W

Control precision

                                                            +/- 1℃

Trigger

                                               Phase-shifted trigger

Electric appliance

                                                    Zhejiang chint

silicon controlled

                                            106/16E SEMIKRON

maximum temperature

                                                         1200℃

 rated temperature

                                                          1100℃

Heating length

205mm+205mm

300mm+300mm

Heating rate

≤30℃/ Min（adjustable, 15℃/ Min is recommended

Thermocouple Type

                                                    K

Surrounding surface temperature

                                              ≤45℃

Open cover protection system

When the cover is opened, the relay will automatically cut off the main power supply to ensure the user's safety.
