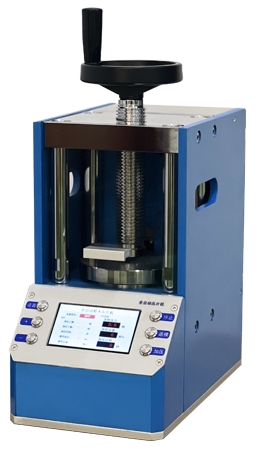

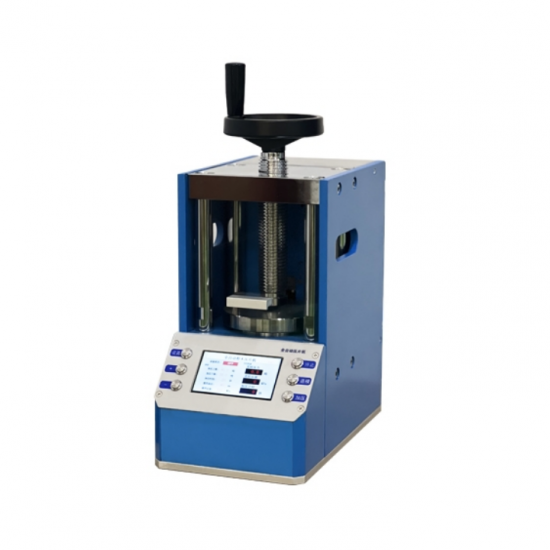

Lab 0.2T-12T Automatic Powder Tablet Press with 4.3 Inch LCD Screen

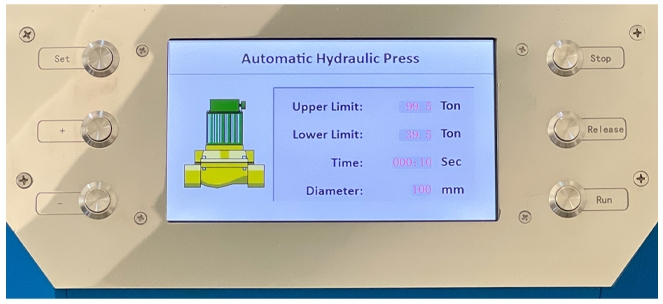

Setting interface

Settings

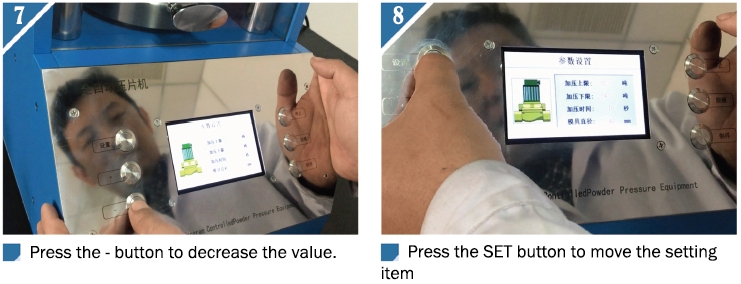

Under the operation interface, press the setting button to enter the setting interface, press the setting button again, move the setting content, move to the mold diameter, press the setting button again to return to the operation interface. Note: When the time is set to "0", the setting time is infinite.

+

On the operation screen, press the + key to add the number.

-

On the operation screen, press _ to reduce the number of Settings.

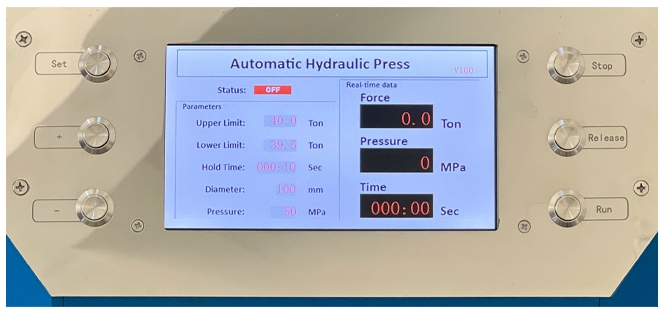

Operating interface

Stop

When the equipment is running, press the "Stop" button, the equipment will stop the motor operation, and open the pressure relief valve to release the pressure.

Release

The equipment starts running when the Release button is pressed down;  when the pressure exceeds the specified value or the limit switch is pressed, the equipment stops automatically and releases pressure. The operation also can be stopped manually.

Sample

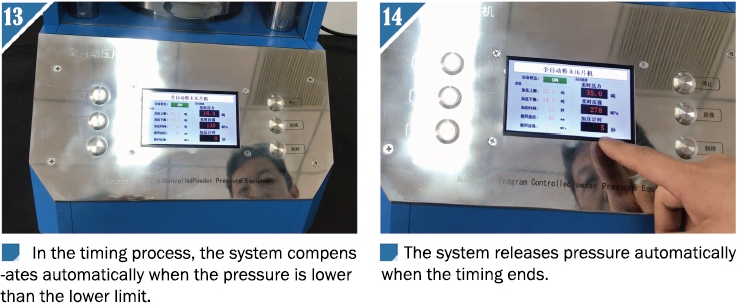

The equipment starts running when the Sample button is pressed down; when the pressure exceeds the specified value, the pressurizing stops and maintains the pressure; when the pressure is lower than the lower limit.the equipment compensates automatically, when the timing ends, the equipment releases pressure automatically.

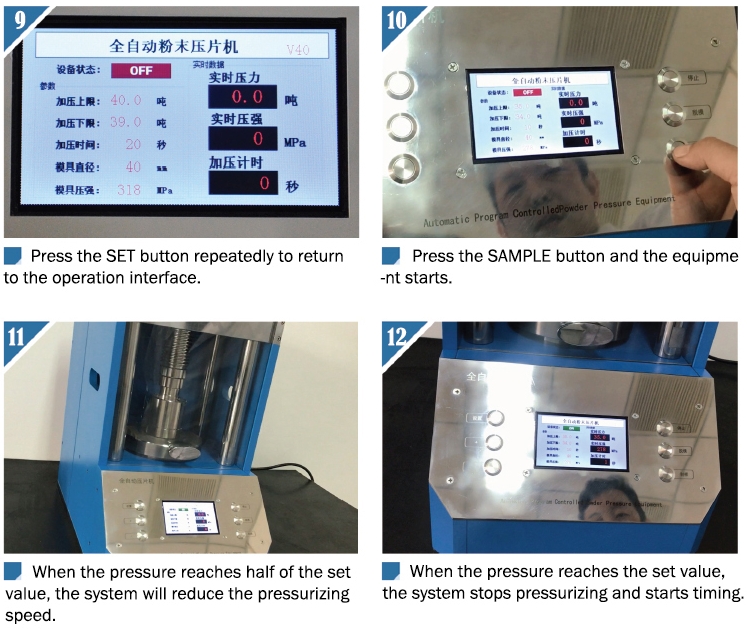

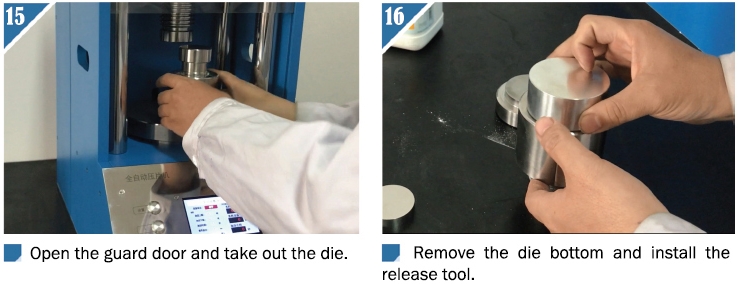

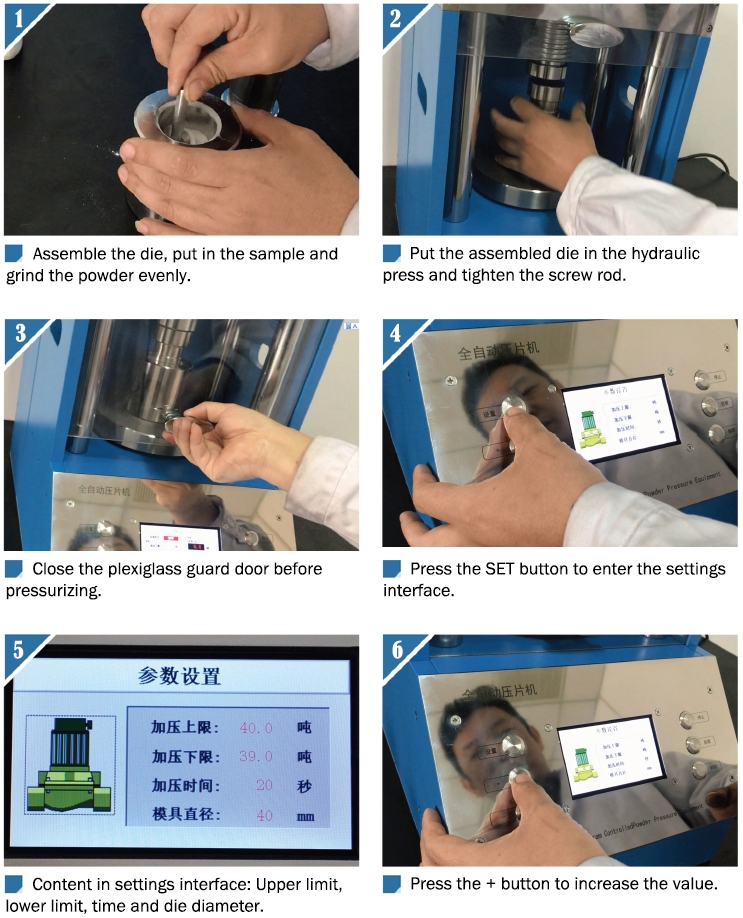

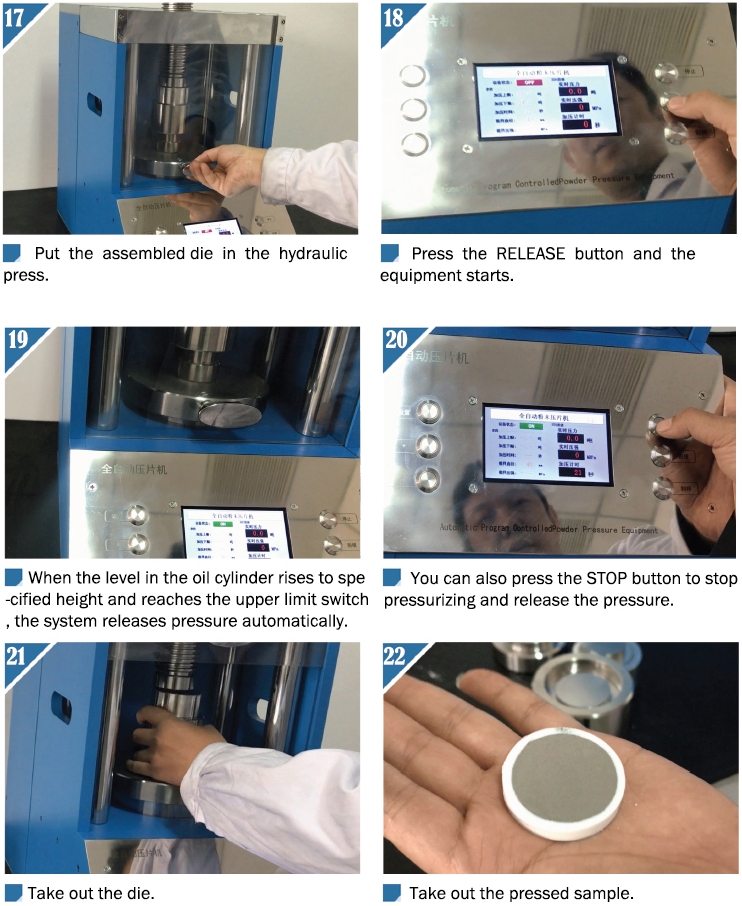

Operation procedure

Operation procedure
