Heating Three Roll Mill Good for High Automation and Stable Working

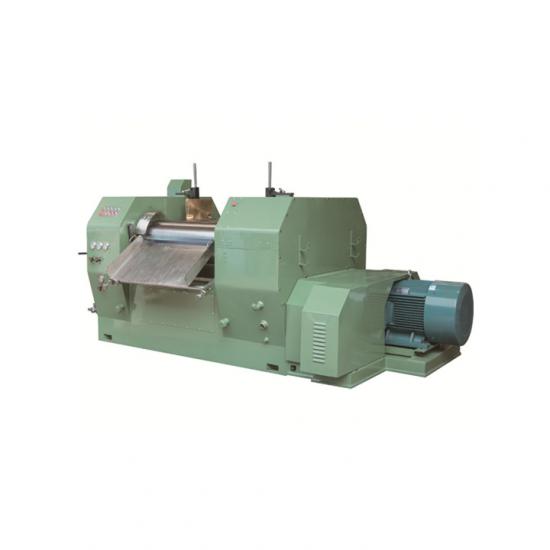

SYJ Heating Type Three Roll Mill

This machine is improved model based on SQ powerful mill. Hydraulic operation system is good for high automation and stable working. The mill is especially applicable for super high viscosity and hard material milling and mixing like EVA, ABS, PE, PP, PVC rubber masterbatch. The roll spindle heads are increased, gears are made by special material for strong power use.

SPECIFICATION:

Model	SYJ-400
Roller Diameter	400mm
Roller length	900mm
Slow roller speed	13.9rpm
Middle roller speed	41.7rpm
Fast Roller speed	125rpm
Hydrualic prseeure	6.3Mpa
Hydraulic pump power	2.2kw 1500rpm
Main motor power	30-50kw 980rpm
Weight	7800kg
Size	4280*1950*1805 mm

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
