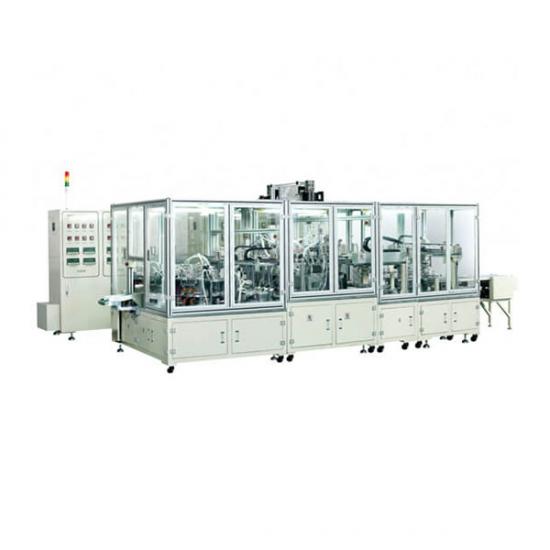

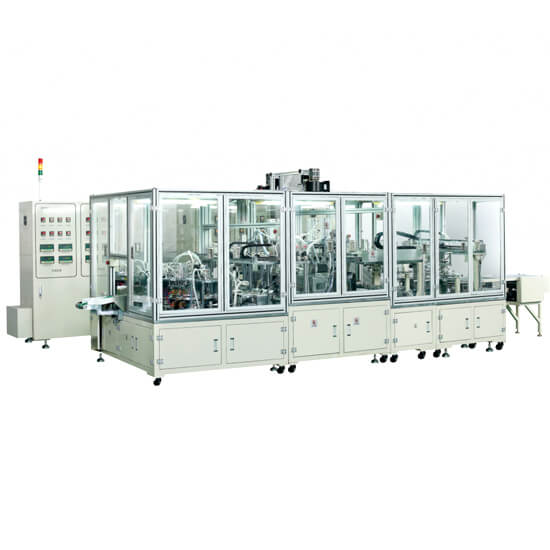

Automatic Degas Sealing Machine For Pouch Cell Manufacturing

Functions
● Suitable for the auto extraction, sealing, airbags pre-cut, trimming, flanging, hot forming auto production equipment. (Add test, scan code, weighing and functions of auto load & unload material be optional).

Features
● Mechanical hand to load material to sealing body, after completion of loading automatically closed cavity, Pierce, infusion, encapsulation；
● Pre-cut air pocket function, the removal of excess air pocket, avoid air pocket on the residual electrolyte contamination；
● After encapsulation battery short circuit test function, process, after test NG material not next level automatically;
● Air pocket respectively in two side and side sealing side location positioning excision and ruffled, ensure the cutting precision;
● After folding iron battery edge shape, iron edge block buffer, ensure the battery is good;
● Weighing function after molding, weighing data input to the computer;
● Trimming precision of ± 0.15 mm;
● Before packaging to secondary reorientation of battery, encapsulation location accuracy ± 0.15 mm;
● 1 set of each cell has an independent servo mechanism, pressure through the pressure sensor control and output display;
● Use knife to Pierce, airbags on the outside edge of the cut out gap, batteries inside block speed of gas discharge, put an end to the electrolyte injection, control pumping fluid volume and reduce the electrolyte pollution to the head and the cavity.

Technical Parameters(for reference)：

ITEM	HBS-CYCX100	HBS-CYCX150	HBS-CYCX300
Measures	(L*W*H): 2800*1400*2300mm	(L*W*H): 4800*2300*2400mm	(L*W*H): 4500*2700*2300mm
Weight	About 2.0T	About 2.5T	About 3.0T
Power	AC220V/50HZ, 15Kw	AC220V/50HZ, 15Kw	AC220V/50HZ, 15Kw
Air source	≧0.6Mpa,50L/Min	≧0.6Mpa, 50L/Min	≧0.6Mpa,50L/Min
Vacuum source	≤-95Kpa,400L/Min	≤-95Kpa,400L/Min	≤-95Kpa,400L/Min
Applicable range	L:40-100mm,W:40-80mm,T:3-10mm	L:50-160mm,W:50-120mm,T:3-15mm	L:100-300mm,W:100-300mm,T:4-15mm
Capacity	≧10PPM(2pcs/cavity, ≤20s)	≧10PPM(2pcs/cavity, ≤20s)	≧4PPM(1pcs/cavity, ≤25s)
Action	≧99.5%	≧99.5%	≧99.5%

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
