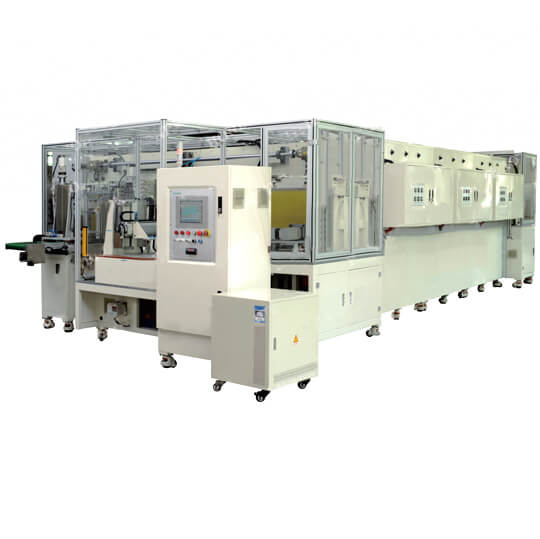

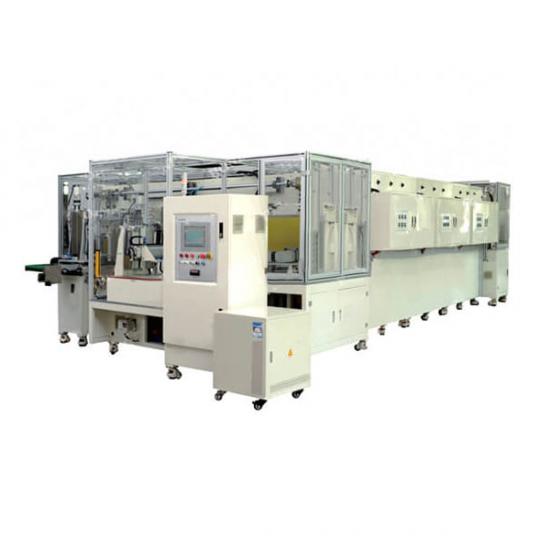

Automatic Baking Oven Machine For Lithium Pouch Cell Manufacturing

Automatic Baking Oven Machine For Lithium Pouch Cell Manufacturing

Sales Manager:David

Email:David@tmaxcn.com

Wechat:18659217588


  • Item No.:

    TMAX-A-022
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    20 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

Automatic Baking Oven Machine For Lithium Pouch Cell Manufacturing



Functions
 Suitable for auto load and unload Baking fixture, Baking oven, Baking furnace cooling, in order to achieve high temperature polymerization, standing.


Features
 Manual load materials to jig, manipulator clamp feeding to the Baking step by step from the rotary table
 Baking fixture in precision positioning and auto calibration devices are removed from the institutions
 Baking jig locked by servo control
 Baking furnace and cooling furnace use plate chain conveyor, closed loop control
 Baking fixture tensioning force servo control, tensioning force within the touch screen settings, tensioning force accuracy ±0.25%
 Baking furnace temperature control precision of ± (except within one meter distance from the security door)
 After Baking the battery thickness accuracy: plus or minus 3.0% T (T is average thickness of the battery)
 After cooling, the temperature below 40  when Baking fixture
 Head component structure adopts movable roller structure, convenient maintenance, and dismantling


Technical Parameters(for reference)

ITEM

MAIN PARAMETERS

Measures

(L*W*H): 9800*3500*2350mm

Weight

About 10T

Power

AC380V/50HZ, 72Kw

Air source

0.6Mpa,150L/Min

Vacuum source

-85Kpa,60L/Min

Applicable range

L:50-180mm,W:30-130mm,T:2-10mm

Capacity

15-20PPM(Baking time:4 hour,4pcs in one time, Thickness5mm)

Cold source

Cooling water,10-18, head of delivery:20M

Action

99%


dry oven




 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
