Item No.:
TMAX-PP-40JPayment:
L/C, T/T, Western Union, Credit Cards, PaypalShipping port:
Xiamen PortLead Time:
15 DaysCertificate:
CE, IOS, ROHS, SGS, UL CertificateWarranty:

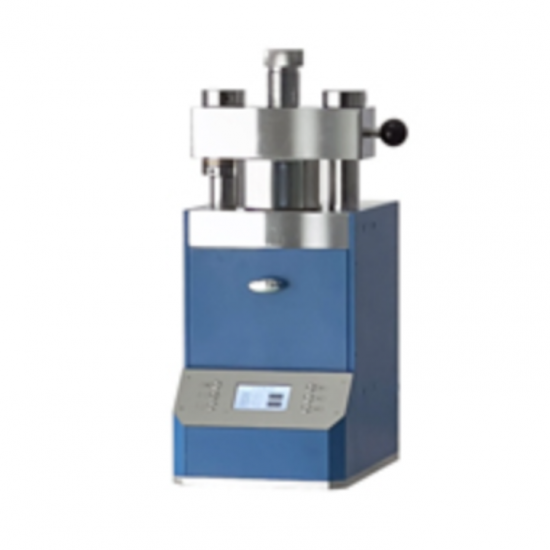

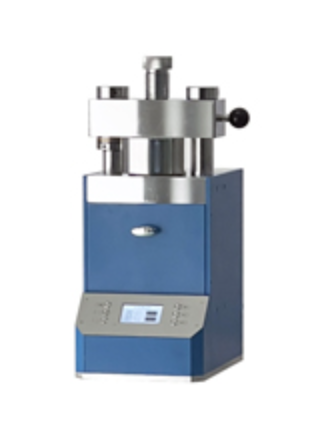

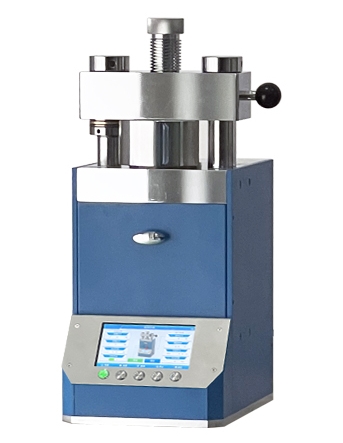

One year limited warranty with lifetime technical support700MPa Lab 40T CIP Electric Hydraulic Press Cold Isostatic Pressing Machine for Pellet Press
|
Instrument model |
PP-40J |
|
Pressure range |
0-40T |
|
Piston diameter |
130 mm in chrome plated cylinder (d) |
|
Pressurization process |
Programmed Pressurization-Programmed Pressure Retention-Timed Pressure Relief |
|
Holding time |
0-999.59 minutes |
|
Pressure conversion |
Program automatically converts the pressure to which the sample is subjected |
|
Liquid crystal display |
4.3 inch LCD screen |
|
Equipment protection |
Steel plate protection with plexiglass door |
|
Isostatic pressure |
700MPa |
|
Isostatic pressure chamber |
22mm |
|
Cylinder stroke |
50mm (T) |
|
Sample making characteristics |
Upper plate rocker structure, more convenient operation |
|
Dimension |
280*460*660 (L*W*H) |
|
Equipment power supply |
220V/1500W |
|
Equipment weight |
180Kg |
|
Dimension schematic |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
