60L Grinding and Screening Machine For Specific Discharge Particle Size

1. Product introduction:

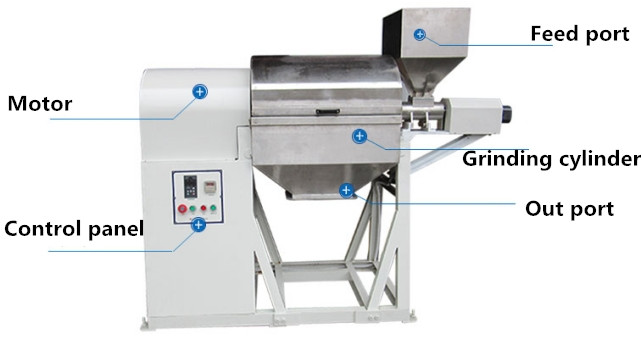

The sieving machine is composed of a ball mill roller, a screen system, a feeding system, and a receiving system. The material can be sieved while being smashed by the ball mill. When the material reaches the particle size, it is sieved through the sieve system, and the sieved material is collected by the material collected system, and the material is continuously fed through the feeding system. The screen mill is particularly suitable for materials that need to be crushed to a specific particle size. For example, if you want to obtain a specific range, such as 200-300 mesh materials, this equipment is very suitable. In addition, it greatly improves the grinding efficiency and reduces unnecessary repeated ball milling. It can be widely used in electronic materials, magnetic materials, biomedicine, non-metallic minerals, new materials and other industries.

2. Principle of Grinding and Screening Machine:

When the grinder is working, the grinding medium and the material in the cylinder are raised to a certain height with the rotation of the cylinder. Due to the effect of gravity, they are separated from the cylinder wall and fall along the parabola. The impact of the material on the grinding medium and the rolling and sliding of the grinding medium are caused It is crushed by friction and shearing.

3.Equipment technical parameters:

Note: other special requirements can be customized

4.. Equipment configuration list and details of main accessories

1. Device configuration list

2.Details of main accessories

5. Product features:

1. The machine runs smoothly, with high efficiency and energy saving, and low noise;

2. It can be used for dry and wet grinding, can process materials of various hardness, and can be used for coarse and fine grinding or mixing of materials;

3. With automatic unloading model, the material and ball can be separated automatically, and the discharge is convenient;

4. The protective jacket is adopted, with high purity of materials and low pollution;

5. Anti-wear, high grinding efficiency;

6. Different materials such as alloy steel, stainless steel and carbon steel can be selected, and the model can be selected from 5 to 500L according to the user's output;

7. The equipment has a low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, and low loss;

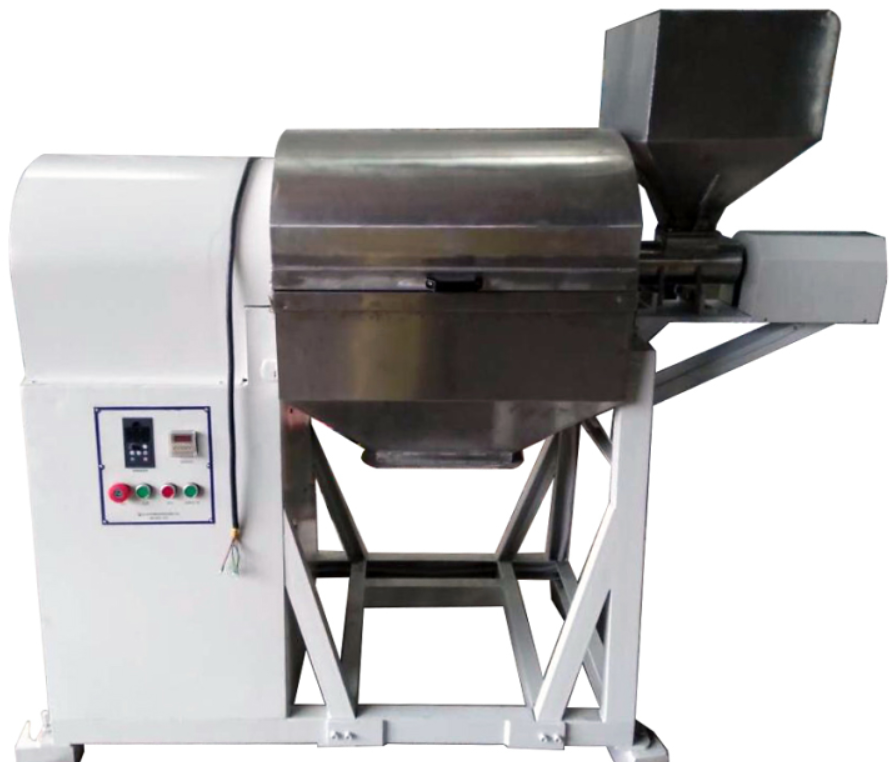

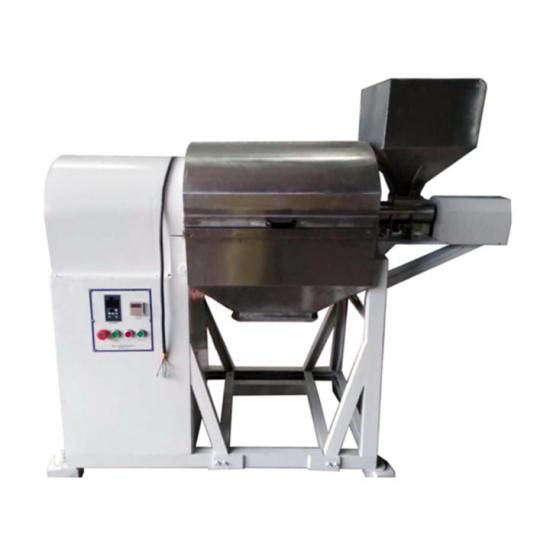

6. Equipment reference pictures;

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
