4L And 8L Vertical Semi-circular Planetary Ball Mill for Dry And Wet Grinding And Mixing Products

A. Product presentation

Planetary mill is an indispensable equipment for high-tech material mixing, fine grinding, sample preparation, nanomaterial dispersion, new product development and small batch production. The product is small in size, full in function and high in efficiency. It is the ideal equipment for scientific research institutions, universities, and enterprise laboratories to obtain particle research samples (each experiment can obtain four samples at the same time), grinding samples under vacuum.

Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, beauty, environmental protection and other departments, such as: electronic ceramics, structural ceramics, magnetic materials, lithium cobaltate, lithium manganate, catalysts, phosphors, long persistence luminescent powder, rare earth polishing powder, electronic glass powder, fuel cells, ceramic capacitors, zinc oxide varistors, piezoelectric ceramics, nanomaterials, wafer ceramic capacitors, MLCC, Thermistor (PTC, NTC), ZnO varistors, arrester valves, Strontium titanate ring varistor, ceramic filter, dielectric ceramics, piezoelectric transducers, piezoelectric transformers, chip resistors, thick film circuits, coke potentiometers, alumina ceramics, zirconia ceramics, phosphors, zinc oxide powder, cobalt oxide powder, nickel zinc ferrite, manganese zinc ferrite and other industry products.

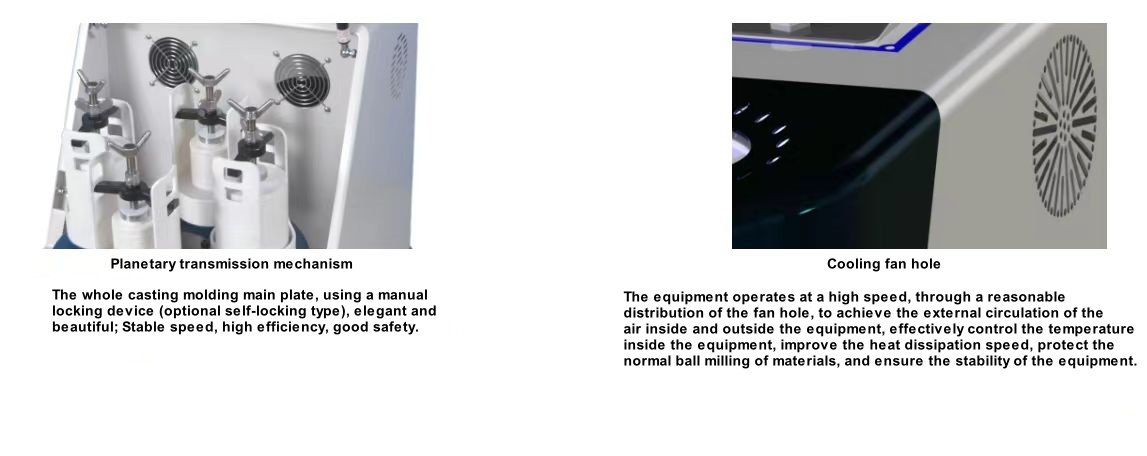

The planetary crusher is designed to crush, grind and disperse metal, non-metal, organic, and other powders. Especially suitable for laboratory research. Strong shear, impact and rolling can achieve the purpose of crushing, grinding, dispersing and emulsifying materials. The planetary ball mill is equipped with four ball mill tanks on the same turntable. When the turntable rotates, the ball mill rotates around the turntable axis, while rotating around its own axis, doing planetary motion. The grinding balls in the tank collide with each other in high-speed motion to grind and mix the sample. The product can be used for dry and wet grinding and mixing products of different particle sizes and materials. The Z-particle size of the grinding product can be as small as 0.1 micron. It can well meet the requirements of various process parameters. At the same time, due to its advantages of small batch, low power consumption and low price, it is the primary choice for schools, scientific research units and enterprises to carry out research on crushing technology, new materials and coatings.



B. Product feature

1.Modeling design: the equipment shell is made of high-precision mold stamping, generous and exquisite, high-end and stable, product color matching, giving the product new vitality, in line with ergonomics.

2.Exquisite workmanship: structural components using CNC machining technology, planetary disk casting molding, transmission gear selection of high temperature wear-resistant non-metal and metal precision gear.

3.Grinding can staring device casting molding, manual operation tightening anti-loose, easy to operate, safe and reliable.

C. Properties of products

Transmission mode	Gear drive
Working mode	Two or four ball mill tanks working simultaneously
Maximum sample loading	Two-thirds of the volume of the ball mill tank
Ball mill tank volume	Each can 0.05L-4L, total volume 0.2L-16L
Feed size	Soil material ≤10mm, other materials ≤3mm
Discharge size	The minimum is 0.1μm
Speed ratio (revolution: rotation)	See the main parameters of the planetary ball mill for details
Rotational speed	See the main parameters of the planetary ball mill for details

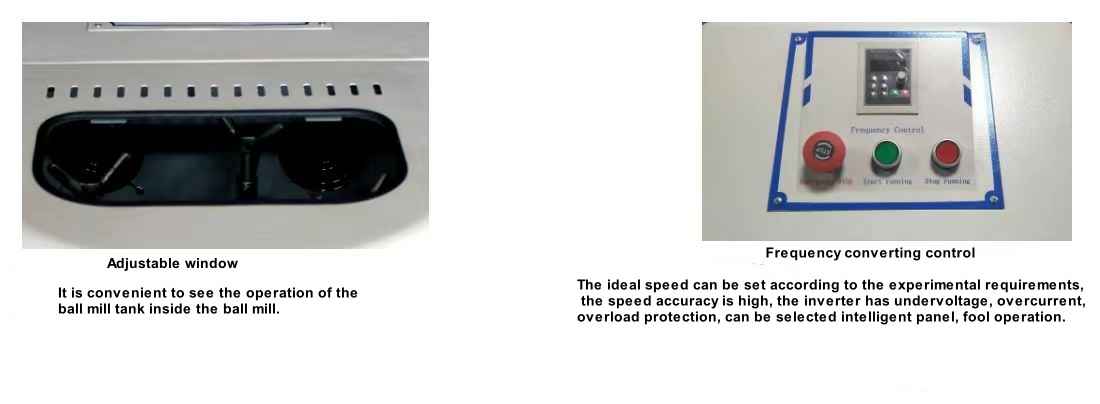

Speed regulation mode	Brand inverter stepless speed regulation

D. Technical parameters of vertical semi-circular planetary ball mill

Model number	PBM-0.2A	PBM-0.4A	PBM-1A	PBM-2A	PBM-4A	PBM-8A	PBM-10A	PBM-12A	PBM-16A
Specifications (L)	0.2	0.4	1	2	4	8	10	12	16
Configurable ball mill tank specifications	10-50ml	50-100ml	50-250ml	50-500ml	250-1000ml	1-2L	1-2.5L	1-3L	2-4L
Quantity (piece)	4	4	4	4	4	4	4	4	4
Matching ball mill tank	Available with 10ml vacuum ball mill tank	Available with 50ml vacuum ball mill tank	Available with 50ml -100ml vacuum ball mill tank	Available with 50m l-250ml vacuum ball mill tank	Available with 50ml -1000ml vacuum ball mill tank	Available with 50ml -2000ml vacuum ball mill tank	Available with 1-2L vacuum ball mill tank	Available with 1-2L vacuum ball mill tank	Available with 1-3L vacuum ball mill tank
Standard ball mill can staring and locking device	Manual operation	Manual operation	Manual operation	Manual operation	Manual operation	Manual operation	Manual operation	Manual operation	Manual operation
Equipment Power Supply (single phase)	Single- phase 220V to 50HZ	Single-phase 220V to 50HZ	Single- phase 220V to 50HZ	Single- phase 220V to 50HZ	Single- phase 220V to 50HZ	Single- phase 220V to 50HZ	Single- phase 220V to 50HZ	Single- phase 220V to 50HZ	Single- phase 220V to 50HZ
Motor power (kw)	0.09	0.25	0.75	0.75	0.75	1.5	1.5	2.2	3
Total set time (min)	1-9999	1-9999	1-9999	1-9999	1-9999	1-9999	1-9999	1-9999	1-9999
Forward and backward running time (min)	1-999	1-999	1-999	1-999	1-999	1-999	1-999	1-999	1-999
Adjustable revolution (rpm)	60-580	47-465	35-370	35-370	35-370	35-320	35-320	35-320	35-255
Adjustable rotation speed (rpm)	120-1160	94-930	70-740	70-740	70-740	70-640	70-640	70-640	70-510
Standard panel (smart, touch screen optional)	Common	Common	Common	Common	Common	Common	Common	Common	Common
Lubrication mode	Lubricating grease	Lubricating grease	Lubricating grease	Lubricating grease	Lubricating grease	Lubricating grease	Lubricating grease	Lubricating grease	Lubricating grease
Speed regulation mode	Frequency control of motor speed	Frequency control of motor speed	Frequency control of motor speed	Frequency control of motor speed	Frequency control of motor speed	Frequency control of motor speed	Frequency control of motor speed	Frequency control of motor speed	Frequency control of motor speed
Equipment weight (kg)	18	26	74	74	80	132	138	140	200
Equipment size Length × width × height (mm)	430×250×270	520×300×420	720×470×600	720×470×600	720×470×600	870×560×680	870×560×680	870×560×680	940×600×710
Noise ≤db	50±5	55±5	60±5	60±5	60±5	60±5	60±5	60±5	65±5

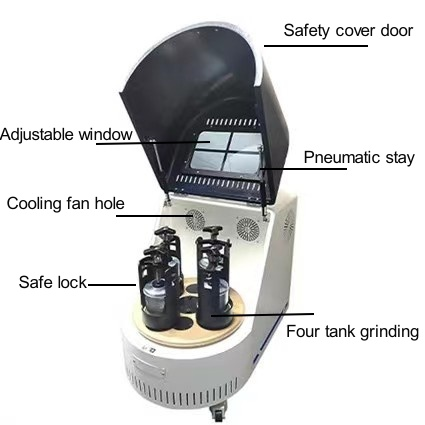

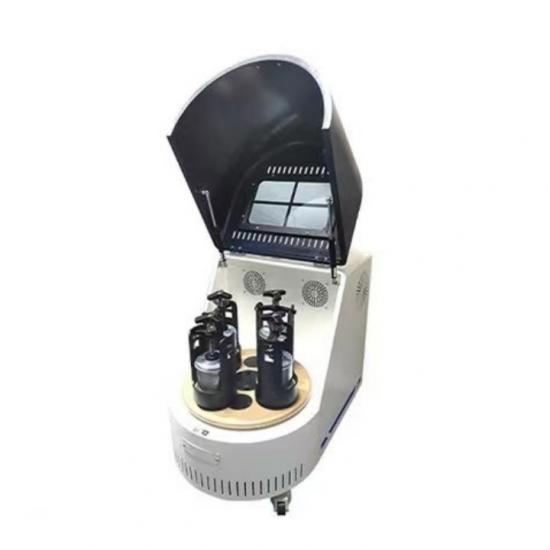

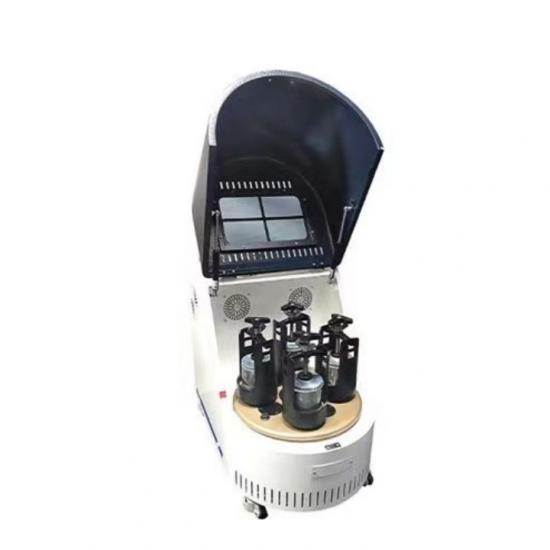

E. Product picture





1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
