4.3-inch Touch Screen Microwave Sintering Muffle Furnace Built-in Water Cooling System

4.3-inch Touch Screen Microwave Sintering Muffle Furnace Built-in Water Cooling System

Sales Manager: Gia

Email: Gia@tmaxlaboratory.com

Wechat: Dingqiuna


  • Item No.:

    TMAX-INNOV-CS-03M160
  • Payment:

    L/C, T/T, Western Union, Credit Cards, Paypal
  • Shipping port:

    Xiamen Port
  • Lead Time:

    5 Days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Warranty:

    Two years limited warranty with lifetime technical support
Product Details

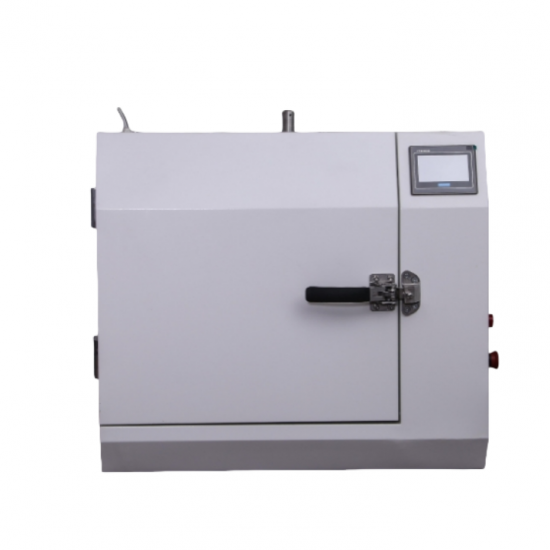

4.3-inch Touch Screen Microwave Sintering Muffle Furnace Built-in Water Cooling System






INNOV-CS-03M1600 microwave muffle furnace is a simple, intelligent general purpose microwave high temperature experiment equipment specially designed for the laboratory. It is widely used for high temperature sintering, synthesis, ashing and heat treatment of various solid materials under air atmosphere.



Product characteristics

1. Overall heating, fast heating speed, uniform temperature, improve the efficiency of experimental work -- microwave "thermal effect";

2. Improve the chemical reaction speed, optimize the process, and obtain high quality experimental results - microwave "non-thermal effect";

3. The equipment has a safe and reliable microwave shielding cavity design to achieve multiple protection;

4. With simple operation control system and man-machine interface, to achieve accurate curve temperature control;

5. Using switching power supply, wide range of voltage application, greatly reduce weight, while reducing high voltage dew point, to ensure safe use;

6. Adopt high stability, long life, continuous industrial microwave source to ensure that the equipment can run continuously and stably for a long time;

7. Built-in water cooling system;



Application field: all kinds of universities, research institutes, enterprise research institutes or laboratories

Sintering of electronic ceramics: varistor, thermistor, piezoelectric ceramics, microwave dielectric ceramics, etc.

Sintering of magnetic materials: Ni-Zn ferrite, gyromagnetic ferrite, etc.

Calcination or synthesis of electronic ceramic powder: barium carbonate, barium strontium titanate, strontium titanate, barium zirconate titanate, etc.

Lithium ion battery cathode material synthesis: ternary, lithium cobalt, lithium manganate, etc.

Other inorganic powder calcination: manganese carbonate, ammonium carbonate, aluminum hydroxide, zinc ferrite, etc.

Sintering of oxide ceramics: alumina, zirconia, magnesium oxide and other oxide materials.



Product parameter

Product model

 INNOV-CS-03M1600

Power source

 AC 220V±20V 50Hz

Rated input power

 4.5kW

Microwave output power

0.5-2.6kW continuously adjustable

Microwave output frequency

 2.45 GHz±25MHz

Operating ambient temperature

 10-40

Maximum sintering temperature

 1600

Conventional sintering temperature

 1500

Temperature measurement method

Infrared temperature measurement (300-1800)

Operation panel

4.3-inch touch screen for data recording and data storage

Microwave leakage intensity

1mW/cm² (better than Chinese and international microwave energy standards)

Cooling water inlet temperature

5℃ to 30

Maximum loading space

Width×height×depth =120×120×90 (mm)

Overall dimensions of equipment

Length×width×height =800×800×760 (mm)

Other equipment

Microwave crucible

Gross weight of equipment

 95 kg



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
